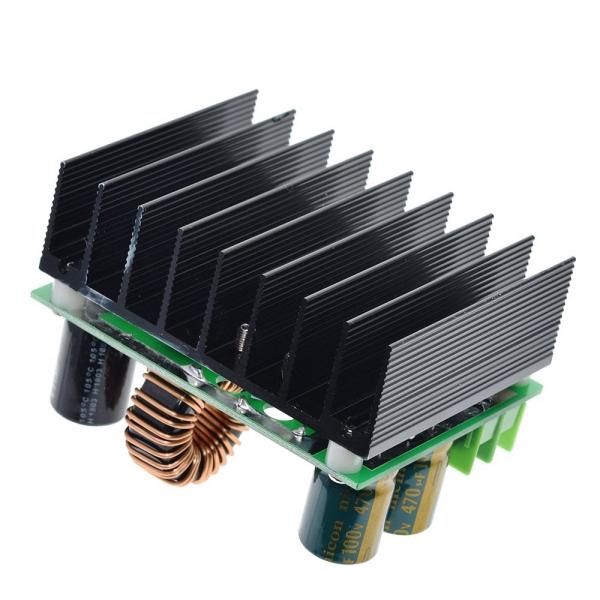

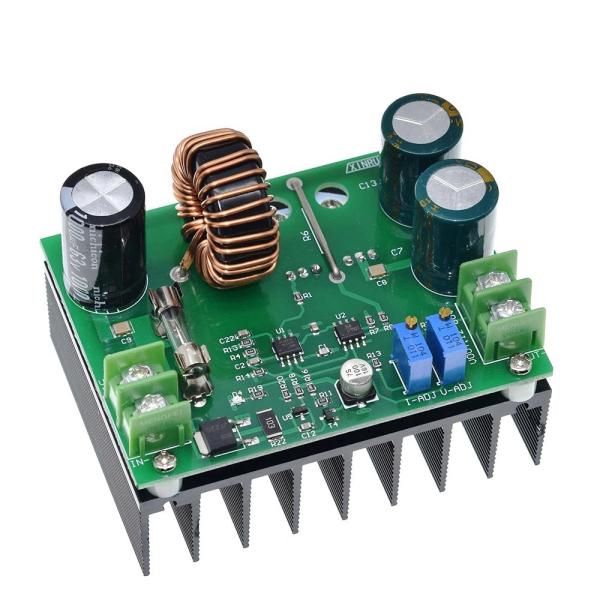

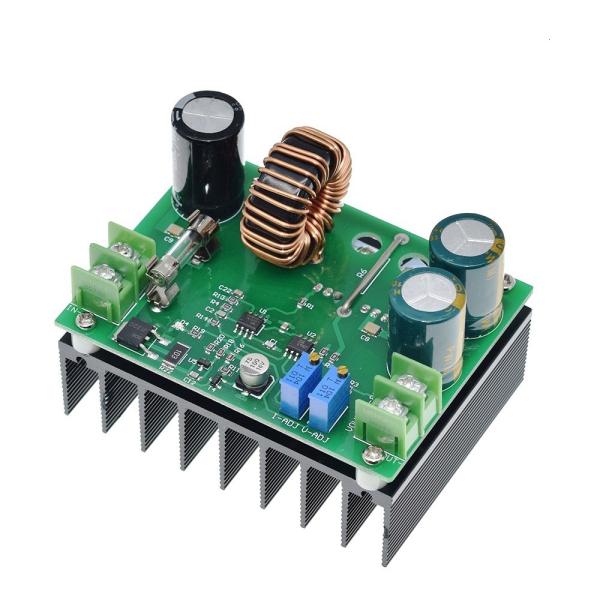

600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Creatall
Model Number :
CA-600W
Application :
DC converter
Type :
step-up
Features :
DC-DC
Mounting Type :
direct mounting
Description :
step-up power supply module
Product Name :
constant current board
Module Properties :
Step-up / Boost DC-DC Converter
Input Voltage :
DC 10 ~ 60 V
Output Voltage :
DC 12 ~ 80 V
Output Current :
10A Max
Input Current :
15 A Max
The minimum voltage difference :
2V
Output Power :
input 12V Max 120W, in 24V Max 240W, in 60V Max 600W
Efficiency :
95% Max
Colour :
Green
Port :
shenzhen port
Supply Ability :
100000 Piece/Pieces per Day
MOQ :
10pcs
Price :
negotiable
Delivery Time :
5-8 work days
Description
Product Description
Specification

600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board

Specification:
Module Properties: Step-up / Boost DC-DC Converter
Input Voltage:DC 10 ~ 60 V
Output Voltage:DC 12 ~ 80 V ( adjustable, O/p Voltage more than the I/p Voltage by 2V )
Output Current:10A Max
Input Current: 15 A Max( Under normal circumstances please 12A Current )
The minimum voltage difference:2V
Output Power: input 12V Max 120W, in 24V Max 240W, in 60V Max 600W ( P=U x I )
Efficiency:95% Max( eg input :30V output: 40V 5A n: 93%)
Output Short-circuit Protection:yes
Input Reverse Protection: None
Size:85 x63 x64mm (L x W x H )
Weight:251g
Material:CCL
Colour:Green
Product Description
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
Company Profile
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
600W 12-60V to 12-80V DC-DC power supply Module Boost Converter Step-up constant current board
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
