CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
CA-3116P Digital Amplifier Module with TPA3116D2 Chip 50Wx2+100W Output and DC12-24V Voltage
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Creatall
Model Number :
CA-3116P
Supply Ability :
10000 Piece/Pieces per Week
MOQ :
10pcs
Price :
negotiable
Delivery Time :
5-8 work days
Application :
Amplifier audio module
Product Name :
CA-3116P Digital AMP
Chip :
TPA3116D2
Voltage :
DC12-24V
Power :
2*50w+100w
Port :
shenzhen port guangzhou port
Description
CA-3116P Digital Amplifier Module DC12-24V 50Wx2+100W AMP TPA3116D2
Product Overview

CA-3116P DC12-24V 50Wx2+100W 2.1 TPA3116D2 Sound Channel Digital Amplifier Audio Module delivers high-quality audio performance with efficient power amplification.

Key Features
  • Utilizes two high-quality TPA3116D2 digital amplifier chips
  • Excellent sound quality with high efficiency and amplifying power
  • 50W×2 + 100W 2.1 channel configuration (left/right channel and subwoofer)
  • High efficiency operation with minimal heat generation
  • Wide input voltage range: DC 12-24V
  • Easy user-adjustable volume control
  • Compatible with 4-8 ohm speakers
  • Simple setup - connect power supply and speakers to enjoy pure digital music
Technical Specifications
Parameter Specification
Supply Voltage DC 12-24V
Chip TPA3116 × 2
Channel Type 3 Channels (Left, Right, Subwoofer)
Output Power 50W × 2 + 100W
Output Match 4-8 ohm
Audio Output Terminals
Frequency Response Range 14-100KHz
SNR 100dB
Switching Frequency 1.2MHz

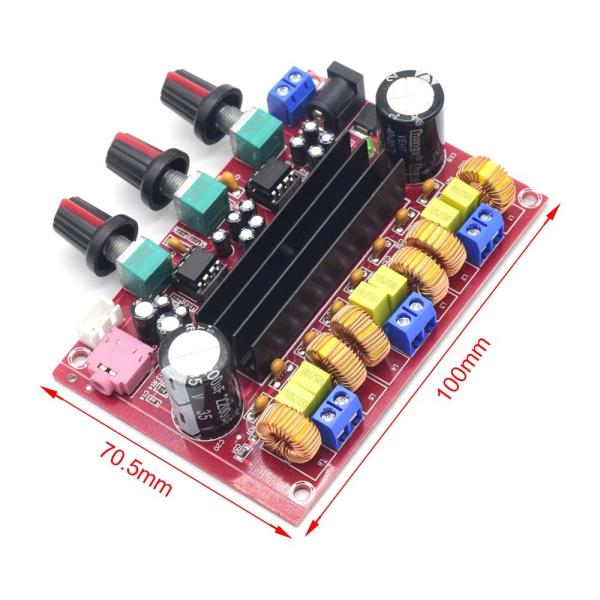

PCB Board Size 100 × 70 × 30mm / 3.94 × 2.75 × 1.18in (L × W × H)
Weight 113g / 3.98oz
Package Size 13.5 × 11 × 5cm / 5.31 × 4.33 × 1.97in (L × W × H)
Package Weight 178g / 6.3oz
Important Notice: This amplifier board must be powered by DC power (DC12-24V). For optimal performance, use a high-performance switch power supply. Do not use transformer-based power supplies.
