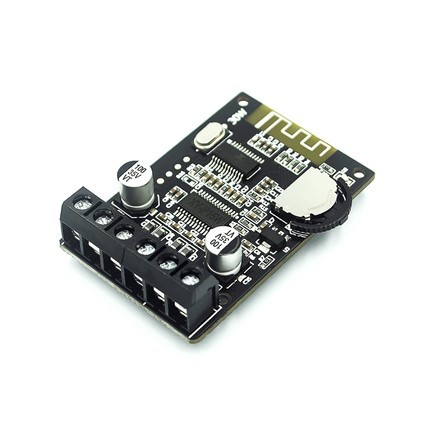

XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
XY-P15W 20W High Power Amplifier Board with Stereo Bluetooth 5.0 for 12V 24V Operation
Specifications
Brand Name :
Creatall
Model Number :
TDA7297
Place of Origin :
Guangdong, China
Supply Ability :
1000 Piece/Pieces per Day
MOQ :
10pcs
Price :
negotiable
Type :
Professional Amplifier
Channels :
2 (2.0)
Product Name :
amplifier board
Keyword :
Digital Power Amplifier Module XY-P15W
Application :
Outdoor Activities
Function :
Large Capacity Switching Power Amplifier
Feature :
Super Bass Stereo Sound
Chip :
XY-P15W
Port :
shenzhen port ,guangzhou port
Delivery Time :
5-8 work days
Description
XY-P15W 10W 20W High Power Amplifier Board With Stereo Bluetooth
XY-P15W 10W 20W Stereo Bluetooth High Power Digital Amplifier Audio Board 12V 24V
Product Specifications
Product Name Bluetooth Digital Power Amplifier Module
Product Number XY-P15W
Operating Voltage DC: 8~24V
Bluetooth Version 5.0
Transmission Distance 15 meters (visible and unobstructed)
Number of Channels Two-channel (stereo)
Output Power (@1KHz)
Configuration Power Output
16W×2 @12V 4Ω 32W Total
10W×2 @12V 8Ω 20W Total
15W×2 @16V 8Ω 30W Total
20W×2 @20V 8Ω 40W Total
30W×2 @24V 8Ω (requires heat sink) 60W Total
Adapter Speaker Compatibility
  • 4 ohms (8~12V power supply)
  • 8 ohms (8~24V power supply)
  • 16 ohms (8~24V power supply)
  • Recommended speaker power: 30W~150W
Module Protection Mechanisms
  • Power reverse polarity protection
  • Short circuit protection
  • Self-recovery overheat protection
Performance Note: To improve module performance, it is recommended to add a heat sink to the power amplifier chip in application scenarios requiring more than 20W×2 output.
Operation Instructions
  1. After power is turned on, the blue indicator flashes quickly and enters Bluetooth mode
  2. After the "prompt tone" is broadcast, the module enters pairing mode and waits for pairing
  3. Search for "XY-P15W" on your mobile phone Bluetooth and connect
  4. After successful connection, a "prompt tone" will play, the indicator light stays on, and you can play music from your mobile device
  5. When music is playing, the indicator light flashes slowly
  6. After Bluetooth disconnection, the amplifier board is ready for next pairing
Usage Precautions
  • Position the amplifier board as far away as possible from WiFi signals (routers)
  • Recommended power supply voltage: DC 8~24V. Exceeding 26V will burn the chip
  • Do not exceed 12V power supply when connected to 4Ω speaker
  • Do not exceed 24V power supply when connected to 8Ω speaker
  • Recommended power supply current: minimum 2A
  • Add heat sink when working power exceeds 20W×2
  • Keep speaker cables under 1 meter in length
  • Practice electrostatic protection - discharge static electricity before handling the board to avoid chip damage
  • Bluetooth chip is particularly sensitive to static electricity
  • Use speakers with rated power of 30W and above to prevent overheating and damage
