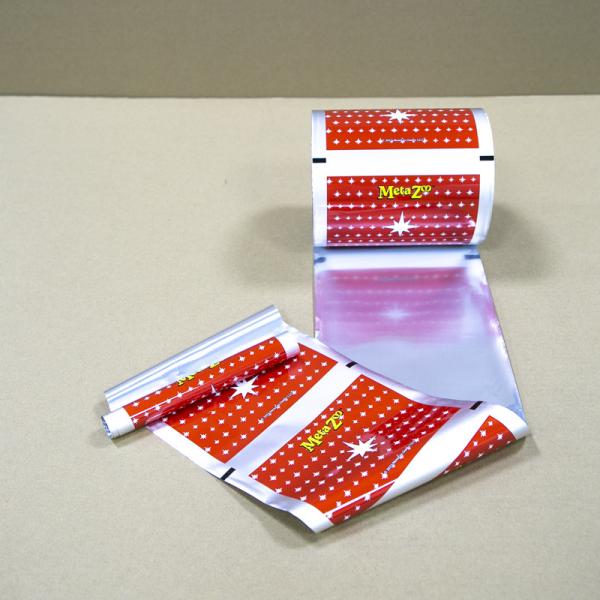

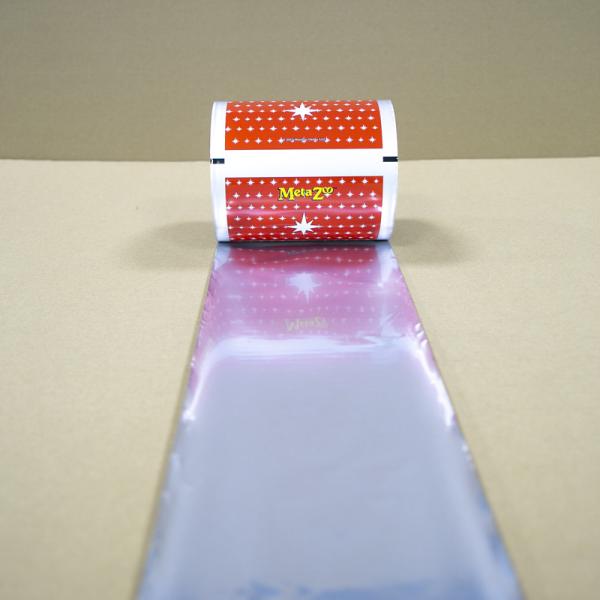

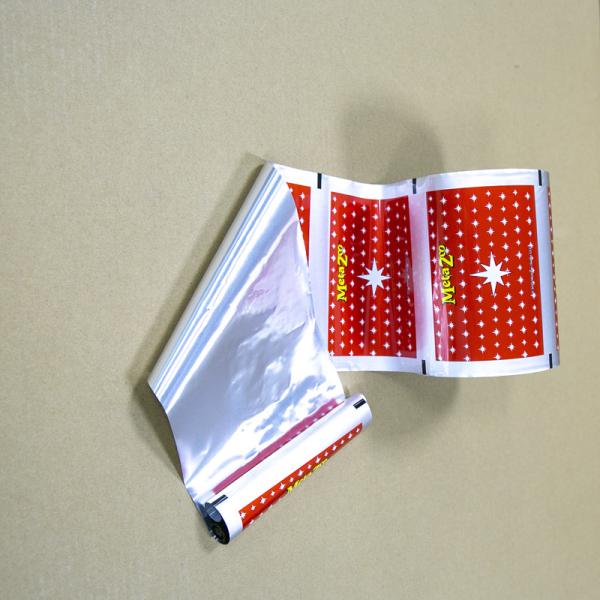

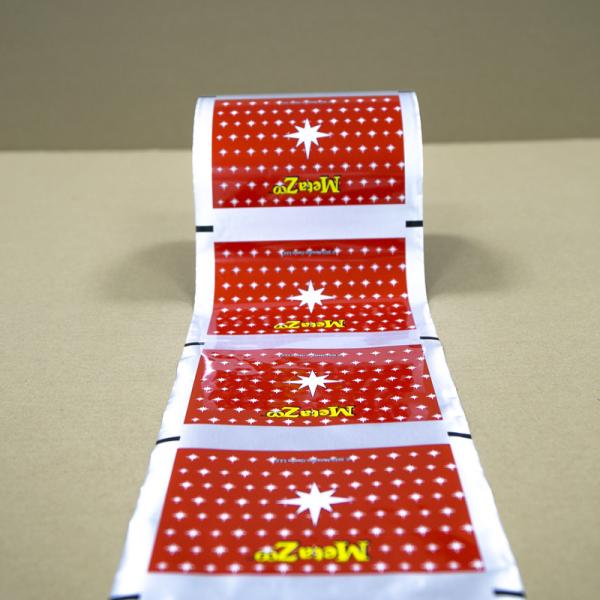

High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
High-Barrier AL PE Composite Roll Film ≤0.05 Cm³/m²·day OTR & FDA 21 CFR
Specifications
Brand Name :
Bright Pack
Model Number :
B010
Certification :
patent for invention、BRC、GRS
Place of Origin :
Guangdong,China
MOQ :
100pcs
Price :
0.03-0.1usd/pc
Payment Terms :
T/T,Western Union
Supply Ability :
200000pcs/day
Delivery Time :
11-13work days
Packaging Details :
Export special carton packaging and plate
Customization :
Support
Colour :
Up To 10 Colour Or No Printed
Odor Proof :
Yes
Custom Order :
YES.
Colors :
CMYK/Pantone
Sample :
Free
Puncture Resistant :
Yes
Packaging Type :
Bulk Pack
Quantity Per Pack :
100
Recyclable :
Yes
Quantity :
Pack of 100 bags
Bag Type :
Three side seal stand up bag
Bpa Free :
Yes
Color :
Transparent
Height :
115 MM
Description

Product Attributes Table for ​High-Barrier AL/PE Composite Roll Film

Attribute Description Reference
​Material Structure 3-layer coextruded composite: Aluminum Foil (AL, ≥99.5% purity) + Adhesive Layer + Polyethylene (PE) sealing layer. Optimized for high oxygen/moisture barrier.
3
​OTR/WVTR Oxygen Transmission Rate (OTR) ≤0.05 cm³/m²·day; Water Vapor Transmission Rate (WVTR) ≤0.5 g/m²·24h (38°C, 90% RH).
3
6
​Certifications FDA 21 CFR Part 177 (food contact compliance), ISO 22000 (food safety), EU 1935/2004 (migration limits).
7
10
​Thermal Resistance Retort-safe up to 121°C; compatible with autoclave sterilization and frozen storage (-40°C).
3
5
​Surface Finish Matte or glossy options; supports 8-color Pantone® gravure printing (±0.1mm accuracy).
6
​Applications High-temperature retort food packaging (sauces, ready-to-eat meals), pharmaceutical blister packs, coffee/nut vacuum sealing.
3
5
​Sustainability Recyclable PE layer; optional 30% post-consumer recycled PE (GRS-certified). Complies with EU SUP Directive.
3
5

Product Specifications Table

Parameter Specification Reference
​Thickness Range 80–250 μm (customizable for vertical/horizontal form-fill-seal machines).
3
6
​Tensile Strength ≥40 MPa (machine direction) / ≥35 MPa (transverse direction).
2
5
​Heat Seal Strength 8–12 N/15mm (sealing temperature: 120–160°C; compatible with LDPE/LLDPE).
5
​Puncture Resistance ≥60 N (ASTM D5748; ideal for sharp-edged products like frozen meat).
2
6
​Layer Composition AL (7–9 μm) / Adhesive (3–5 μm) / PE (50–80 μm).
3
​Temperature Range -40°C to 121°C (retort sterilization and cryogenic storage compatible).
3
5
​Roll Dimensions Width: 200–1200 mm; core ID: 3"/6"; max roll weight: 100 kg.
2
6
​Migration Limits Pb ≤0.01 ppm, Cd ≤0.002 ppm; total migration ≤10 mg/dm² (FDA/EU compliant).
7
10
​MOQ & Lead Time MOQ 30,000 linear meters; production lead time: 15–25 days.
