Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Specifications
Customization :
Support
Colour :
Up To 10 Colour Or No Printed
Odor Proof :
Yes
Custom Order :
YES.
Colors :
CMYK/Pantone
Sample :
Free
Puncture Resistant :
Yes
Packaging Type :
Bulk Pack
Quantity Per Pack :
100
Recyclable :
Yes
Quantity :
Pack of 100 bags
Bag Type :
Three side seal stand up bag
Bpa Free :
Yes
Color :
Transparent
Height :
115 MM
Brand Name :
Bright Pack
Model Number :
B010
Certification :
patent for invention、BRC、GRS
Place of Origin :
Guangdong,China
MOQ :
100pcs
Price :
0.03-0.1usd/pc
Payment Terms :
T/T,Western Union
Supply Ability :
200000pcs/day
Delivery Time :
11-13work days
Packaging Details :
Export special carton packaging and plate
Description
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
Product Attributes & Specifications
Category Attribute Specification Test Standard/Notes
Material Structure Layer Composition PET (Outer) + Aluminum Foil (Barrier) + PE (Sealing) 3-5 layers; customizable
Thickness Range Total: 19-200 μm
Aluminum: 6-50 μm
PE: 3-100 μm 		Adjustable per application
Mechanical Properties Puncture Resistance ≥35 N (Sharp Needle Test) ASTM D7513/D6241
Tensile Strength (MD/TD) 15-30 MPa Industry standard for packaging films
Elongation at Break 400-600% Ensures flexibility during use
Thermal Performance Heat Sealing Range 140 -200°C Compatible with PP/PE substrates
Temperature Resistance -40 °C to 120°C Suitable for storage/transport
Thermal Insulation Up to 34.6% efficiency (with 8 wt.% Al content) Enhanced by aluminum layer
Barrier Properties Water Vapor Transmission ≤0.5 g/m²/day ASTM E96
Oxygen Transmission ≤5 cm³/m²/day ASTM D3985
Optical & Surface Surface Finish Glossy/Matt, Silver; Customizable colors/prints Up to 10 printing colors
Adhesive Layer Hot-melt or pressure-sensitive adhesive Bonds layers securely
Functional Features Seal Integrity Peelable or permanent seals Customizable for easy-open/lidding
Applications Pallet covers, machinery packaging, thermal insulation facing, food/dairy lids
Roll Specifications Max Roll Width 2.1 m
Max Roll Length 6,000 m
Core Diameter 76 mm / 152 mm (standard); Customizable

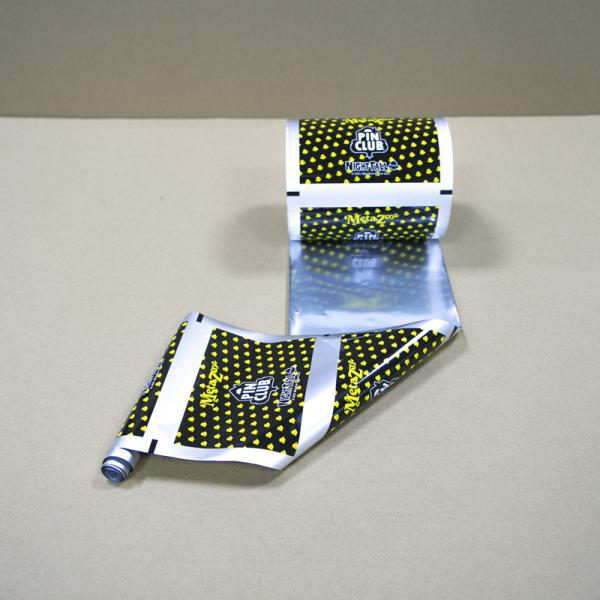

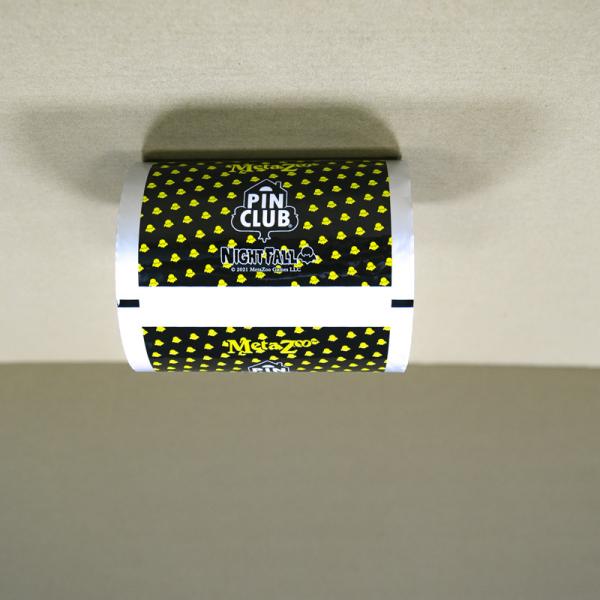

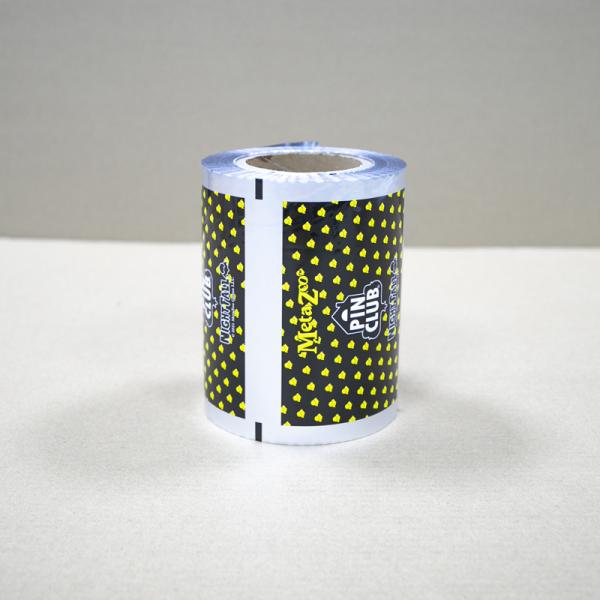

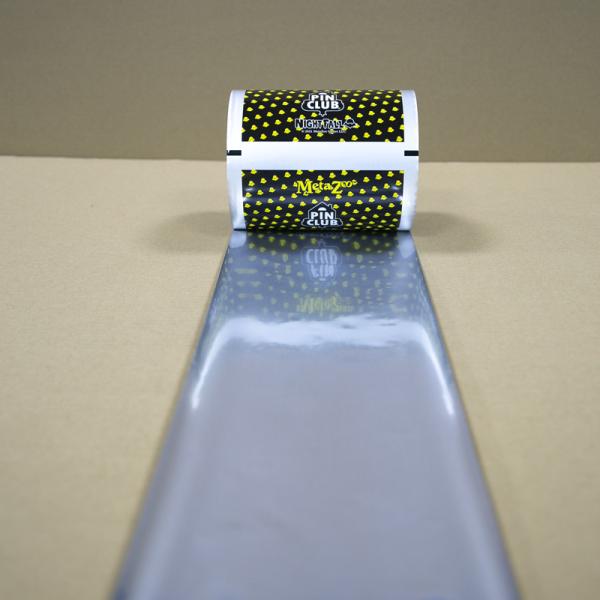

Product Images
Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C Multi-Layer Al / PE Composite Film Roll Puncture ≥35N Heat Sealable 140–200°C
