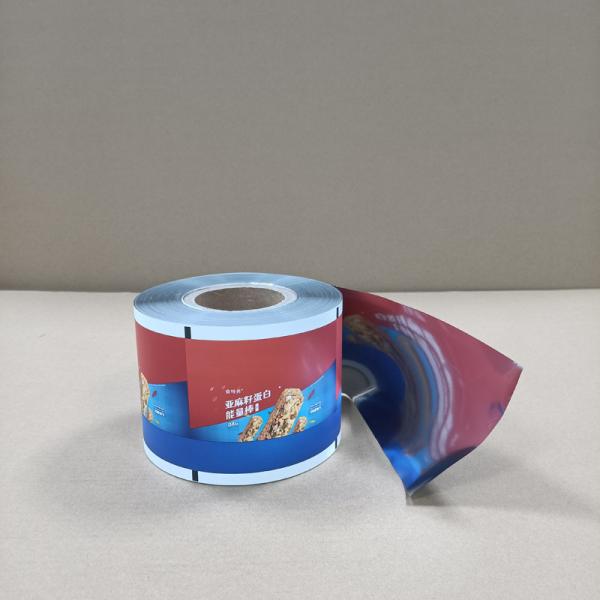

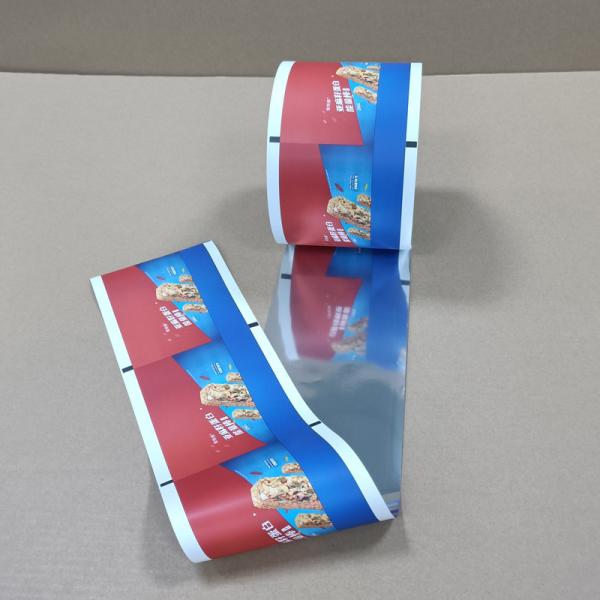

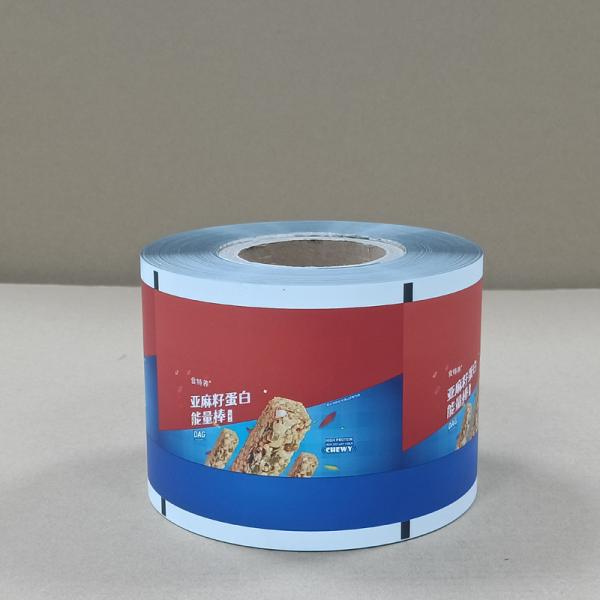

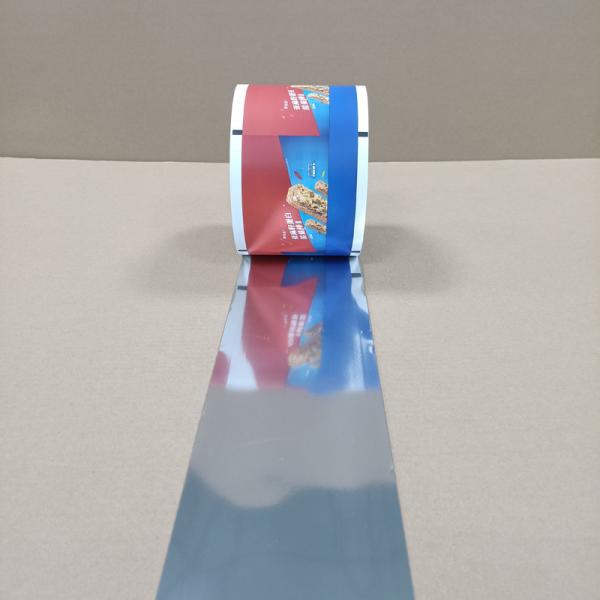

Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Custom Printed Energy Bar Film Roll 10-Color Gravure Odor Proof
Specifications
Brand Name :
Bright Pack
Model Number :
B010
Certification :
patent for invention、BRC、GRS
Place of Origin :
Guangdong,China
MOQ :
100pcs
Price :
0.03-0.1usd/pc
Payment Terms :
T/T,Western Union
Supply Ability :
200000pcs/day
Delivery Time :
11-13work days
Packaging Details :
Export special carton packaging and plate
Customization :
Support
Colour :
Up To 10 Colour Or No Printed
Odor Proof :
Yes
Custom Order :
YES.
Colors :
CMYK/Pantone
Sample :
Free
Puncture Resistant :
Yes
Packaging Type :
Bulk Pack
Quantity Per Pack :
100
Recyclable :
Yes
Quantity :
Pack of 100 bags
Bag Type :
Three side seal stand up bag
Bpa Free :
Yes
Color :
Transparent
Height :
115 MM
Description

Product Attributes​

​Attribute​ ​Description​ ​Reference​
​Material Structure​ Multi-layer composite (e.g., PET/AL/PE, BOPP/CPP, OPP/PE) with customizable barrier layers for oxygen/moisture protection
5
8
​Primary Function​ High-definition 10-color gravure printing for vibrant branding; tailored designs for energy bar packaging (e.g., protein bars, meal replacements)
8
9
​Barrier Technology​ Optional aluminum foil (7–12 µm) or metallized layers for UV/oxygen blocking; extends shelf life up to 12 months
5
9
​Seal Integrity​ Heat-sealable inner layer (PE/CPP) ensures leak-proof seals for powders/liquids; withstands filling temperatures up to 150°C
5
7
​Surface Treatment​ Anti-static coating (≤10⁹ Ω/sq) prevents sugar/protein powder adhesion during high-speed filling
7
8
​Print Quality​ 10-color rotary gravure printing with ≤0.1mm registration accuracy; supports Pantone color matching & complex graphics
8
9
​Certifications​ FDA 21 CFR, ISO 22000, BPA-free; recyclable/biodegradable variants available (e.g., PLA/PBAT)
5
9
​Sustainability​ Recyclable PET/PE structures; EN13432-certified PLA options with 180-day decomposition
5

​Product Specifications​

​Parameter​ ​Specification​ ​Reference​
​Thickness​ 70–150 µm (customizable; 100 µm standard for energy bars)
5
7
​OTR (Oxygen Transmission Rate)​​ ≤0.05 cm³/m²/day (with AL layer; ASTM F1249)
5
​WVTR (Water Vapor Transmission Rate)​​ ≤0.5 g/m²/day (ASTM D3985)
7
​Puncture Resistance​ ≥35 N (ASTM D7192; protects nut inclusions)
7
​Seal Strength​ ≥25 N/15mm (ASTM F88)
5
​Roll Dimensions​ - ​Width: 200–1,000 mm
- ​Length: 1,000–10,000 m
- ​Core ID: 76 mm (3") or 152 mm (6")
5
7
​Printing Capacity​ 10-color gravure with ≤0.1mm tolerance; max print width: 1,200 mm
8
9
​MOQ & Logistics​ - ​MOQ: 500 kg
- ​Lead Time: 10–15 days (with printing)
- ​Packaging: Wooden pallets, moisture-proof wrap
5
8
