Good Quality Drive 650T Crawler Crane For Construction Hydraulic Crawler Crane
Good Quality Drive 650T Crawler Crane For Construction Hydraulic Crawler Crane
Specifications
Brand Name :
SANY
Model Number :
SCC6500
Place of Origin :
China
MOQ :
One Crane
Price :
Negotiable Price
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmation
Packaging Details :
Packing According to Customer Requirements
Slewing Speed :
0-2.5 rpm
Engine Power :
298 kW
Operating Weight :
650 tons
Boom Length :
18-96 meters
Counterweight :
180 tons
Max Lifting Height :
120 meters
Max Ground Pressure :
0.11 MPa
Max Gradeability :
30%
Max Lifting Capacity :
650 tons
Hoist Speed :
0-120 m/min
Fuel Tank Capacity :
2000 liters
Travel Speed :
1.2 km/h
Description

650T Crawler Crane With Good Quality Drive, Quality Assurance For Construction

SCC6500 Crawler Crane Technical Specifications

Weight parameters

Name

Amount

Length(m)

Width(m)

height(m)

Unit weight(t)

Central weight tray

2

4.5

2.135

0.885

3

Central weight

8

2.12

1.655

0.39

9.25

Main machine weight tray

2

3

2．1

2.05

5

Main machine weight

18

2.49

1.6

0.455

10

Super lift counterweight pallet

1

6．5

2.485

0.8

8.7

Super lifting weight

30

2.49

1.6

0.455

10

Hook parameters

Hook name

Max lifting weight

Amount

Number of pulleys

magnification

Unit weight(t)

650t Hook

650t

1

2×13

2×24

19.2

325 Hook

325

1

13

24

13

150t Hook

150t

1

5

11

4.5

100t Hook

100t

1

3

7

3.5

50t Hook

50t

1

1

3

1.55

18t Ball hook

18t

1

-

1

0.98

Note: 650t hook can be disassembled into two 325t hooks.

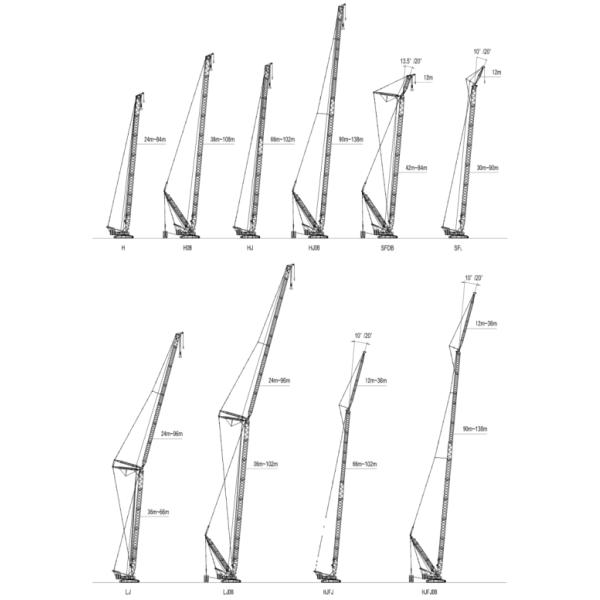

Working condition combination
