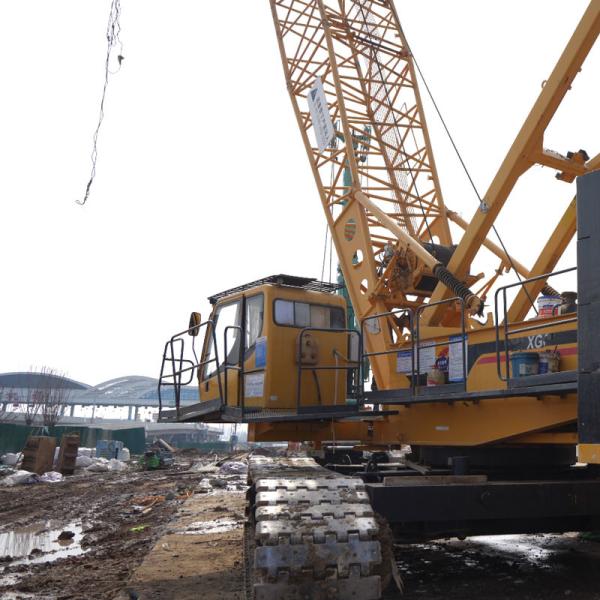

Xgc300 Used 300 Ton Crawler Crane For Construction
Xgc300 Used 300 Ton Crawler Crane For Construction
Specifications
Brand Name :
XCMG
Model Number :
XGC 300t
Place of Origin :
China
MOQ :
One Crane
Price :
Negotiable Price
Payment Terms :
L/C,T/T
Supply Ability :
Supply According to Customer Needs
Delivery Time :
According to Order Confirmation
Packaging Details :
Packing According to Customer Requirements
Maximum Lifting Height :
132 m
Boom Length :
102 m
Maximum Tip Height :
152 m
Max Gradeability :
30%
Slewing Speed :
1.5 rpm
Crawler Length :
10.5 m
Maximum Travel Speed :
1.5 km/h
Jib Length :
30 m
Fuel Tank Capacity :
1,500 L
Maximum Line Speed :
120 m/min
Operating Weight :
300,000 kg
Ground Pressure :
0.12 kg/cm2
Maximum Lifting Capacity :
300 tons
Engine Power :
450 kW
Description

XGC 300t Crawler Crane For Tower Arm Lifting Without Main Arm Pulley Block And Maximum Lifting Moment Of 1865t.m.

XGC 300t(-I)Crawler Crane Technical Specifications


Crawler crane models: XGC 300t(-I)
Max rated lifting capacity: 300t
Maximum lifting moment: 1865t.m

Tower working condition arm table

Table of tower arm lifting without main arm pulley block and tower arm single pulley (HW/1)

Turntable counterweight 115t + vehicle body counterweight 40t

Tower arm assembly

Main boom assembly

W24

W30

W36

W42

W48

W54

◇W60

☆W66

H25

◎

◎

◎

◎

◎

◎

◎

◎

H28

◎

◎

◎

◎

◎

◎

◎

◎

H31

◎

◎

◎

◎

◎

◎

◎

◎

H34

◎

◎

◎

◎

◎

◎

◎

◎

H37

◎

◎

◎

◎

◎

◎

◎

◎

H40

◎

◎

◎

◎

◎

◎

◎

◎

H43

◎

◎

◎

◎

◎

◎

◎

●

H46

◎

◎

◎

◎

◎

◎

●

●

H49

◎

◎

◎

◎

◎

●

●

●

H52

◎

◎

◎

◎

●

●

●

●

H55

◎

◎

◎

●

●

●

●

●

H58

◎

◎

●

●

●

●

●

●

H61

◎

●

●

●

●

●

●

●

H64

●

●

●

●

●

●

●

●

H67

●

●

●

●

●

●

●

●

Table of tower type jib without main boom pulley block and with third hook of single tower boom pulley (HWS/1 & HWS/3)

Turntable counterweight 115t + vehicle body counterweight 40t

Tower arm assembly

Main boom assembly

WS24

WS30

WS36

WS42

WS48

WS54

◇W60

☆W66

H25

◎

◎

◎

◎

◎

◎

◎

◎

H28

◎

◎

◎

◎

◎

◎

◎

◎

H31

◎

◎

◎

◎

◎

◎

◎

◎

H34

◎

◎

◎

◎

◎

◎

◎

◎

H37

◎

◎

◎

◎

◎

◎

◎

●

H40

◎

◎

◎

◎

◎

◎

●

●

H43

◎

◎

◎

◎

◎

●

●

●

H46

◎

◎

◎

◎

●

●

●

●

H49

◎

◎

◎

●

●

●

●

●

H52

◎

◎

●

●

●

●

●

●

H55

◎

●

●

●

●

●

●

●

H58

●

●

●

●

●

●

●

●

H61

●

●

●

●

●

●

●

●

Tower type jib table with single pulley without tower jib and main hook (HBW/1 & HBW/3)

Tower type jib table with single pulley without tower jib and main hook (HBW/1 & HBW/3)

Tower type jib table with single pulley without tower jib and main hook (HBW/1 & HBW/3)

Main boom assembly

W24

W30

W36

W42

W48

W54

◇W60

☆W66

HB25

◎

◎

◎

◎

◎

◎

◎

◎

HB28

◎

◎

◎

◎

◎

◎

◎

◎

HB31

◎

◎

◎

◎

◎

◎

◎

●

HB34

◎

◎

◎

◎

◎

◎

●

●

HB37

◎

◎

◎

◎

◎

●

●

●

HB40

◎

◎

◎

◎

●

●

●

●

HB43

◎

◎

◎

●

●

●

●

●

HB46

◎

◎

●

●

●

●

●

●

HB49

◎

●

●

●

●

●

●

●

HB52

●

●

●

●

●

●

●

●

HB55

●

●

●

●

●

●

●

●

HB58

×

×

●

×

×

●

×

×

Notes: 1. “◎”--Can raise the arm. “●”--Need wedges to assist in raising the arm. “×”--Working condition combination is not allowed.

2. “◇”--Tower arm combination requires a 2.590m waist rope; “☆”--Tower arm combination requires a 3.905m waist rope.

3. When raising the arm, please place the crawler drive wheel behind the vehicle body.
