Specifications
Brand Name :
OUCO
Model Number :
OUCO-5T15M-KTB Crane
Certification :
CE, CCS, BV, ABS, API-2C
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Western Union,T/T
Supply Ability :
100 Set / year
Delivery Time :
30 Days
Packaging Details :
Shipping Container/Wood Crate/nude
Product :
5T15M Knuckle Boom Offshore Wind Lifting Crane
SWL :
5T@15M
Model :
knuckle boom crane
Application :
Offshore Wind Support, Deck Operations, Dredging & Soil Improvement
Material :
ABS/CCS/RMRS Certified Steel
Packaging :
Shipping Container
Port :
Shanghai
Delivery :
60 Days
Description

5T15M Knuckle Boom Offshore Wind Lifting Crane

The European offshore wind and marine engineering sectors demand equipment that thrives in high-salinity, complex environments. To meet these rigorous standards, OUCO has developed the customized 5T15M Knuckle Boom Crane, a solution that balances robust power with exceptional agility. Specially engineered for the Demanding European Offshore Sector.

Precision Performance & Reach

Designed for versatility on specialized vessels, this crane delivers a Safe Working Load (SWL) of 5T at a maximum reach of 15M. Its flexible knuckle boom design accommodates a dynamic working radius ranging from a compact 2.6M up to 15M, allowing for efficient operation even in tight deck spaces. Whether handling wind farm maintenance materials or supporting dredging operations, the crane ensures superior reach with a hoisting height of up to 50M.

5T15M Knuckle Boom Offshore Crane

Operational Control & Agility

Efficiency is at the core of the 5T15M’s design. It features a variable hoisting speed of 0~12m/min and a stable slewing speed of 0.5r/min, supported by continuous 360° rotation.

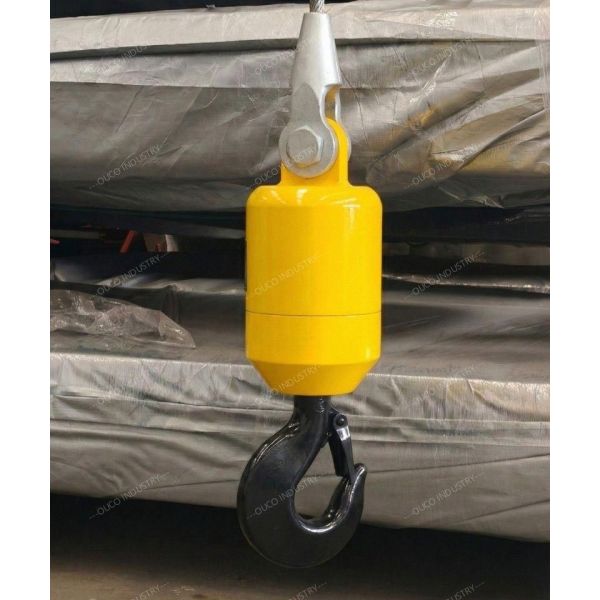

To further enhance maneuverability, we have upgraded standard hooks to DIN-type swivel hooks. These lighter, stronger hooks allow for unrestricted rotation, enabling operators to navigate loads around obstacles with precision—a critical advantage in confined nearshore engineering.

5T15M Knuckle Boom Offshore Crane

Durability & Certification

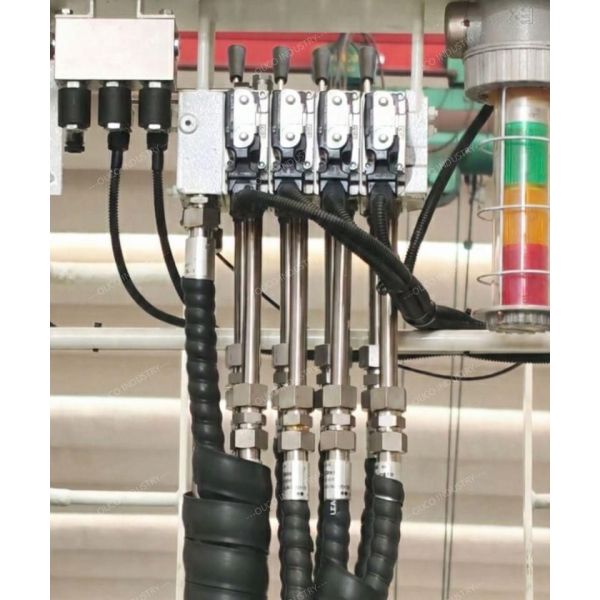

Built to withstand the corrosive Atlantic marine environment, the crane features a full-link anti-corrosion design, utilizing 316 Stainless Steel for all hydraulic piping and interfaces. This significantly extends service life and reduces maintenance costs.

Safety Guaranteed: Both units have successfully passed testing by Bureau Veritas (BV), meeting advanced international safety standards.

5T15M Knuckle Boom Offshore Crane

Technical Parameters

No. Parameter Category Specification
1 SWL See load chart
2 Max. Working Radius 15m (Optimized)
3 Min. Working Radius 2.6m
4 Hoisting Speed 0~12 m/min
5 Hoisting Height 50m (Max)
6 Slewing Speed ~0.5 r/min
7 Slewing Angle 360°
8 Luffing Time ~50 S
9 Working Condition Trim ≤2° / Heel ≤5°
10 Wind Speed Working: 20m/s / Parking: 55m/s
11 Elec. Motor 37KW (480V/60HZ/3P), IP56, Class F
12 Design Temp. -10° ～ +40°
13 Sea Condition Grade 4

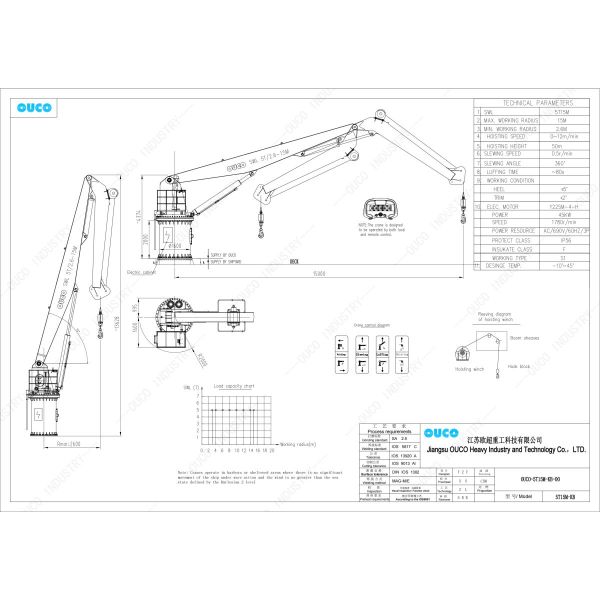

GA Drawing

5T15M Knuckle Boom Offshore Crane

Product Pictures

5T15M Knuckle Boom Offshore Crane 5T15M Knuckle Boom Offshore Crane
5T15M Knuckle Boom Offshore Crane 5T15M Knuckle Boom Offshore Crane

About OUCO

Founded in 1984, OUCO INDUSTRY is a leading manufacturer of high-quality marine equipment. With over 40 years of experience, we are recognized for delivering innovative and reliable products tailored to the maritime industry.

5T15M Knuckle Boom Offshore Crane

Our Services & Certificates

OUCO Group can design and manufacture any type of cranes, grabs, and handling equipment according to your requirements.

Warranty 12 Months (Extendable)
Spare Parts 1 Set included
Certificates SGS, ISO9001, CE, BV, CCS
Delivery Standard: 1 month / Customized: 2-3 months

5T15M Knuckle Boom Offshore Crane

Customize Your Offshore Lifting Solution

For more details or to discuss your project requirements, please contact us. Welcome to visit our factory!
