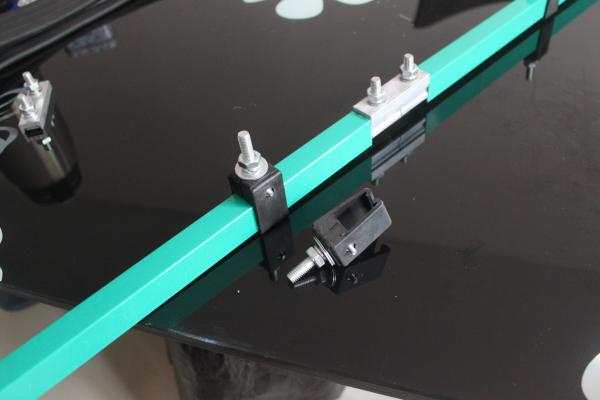

Mobile Flexible Insulated Unipole Powerail Conductor Bar/Busbar

Advantages:

1. Conductor material: 99.99% electrolytic copper, good conductive property and energy-saving.

2. PVC housing: fine insulating property, high impact, high mechanical strength long performance life.
3. Security, touch proof.

4. 4m/piece, easy to install, maintain and replace.

5. Clean and tidy, esthetic appearance, beautiful environment.

6. Suitable for different kinds of weather

Specifications
Single Safe Collector Bracket
1. Easy Installation
2. Top Quality
3. Factory Price
4. Long Life Expectancy

Introduction of the product
Powerail enclosed conductor rail system is a powerail,protected from contact(IP 23),For indoor and outdoor plants. They are conductor lines in a rigid green PVC housing with different copper cross sections for rated currents of 35-240A.
The current collectors, running in the ball bearings, are guided by the housing.
The main is transferred by spring-stored carbon brushes.
Type HFP-P: not include Sealing strip, with factory-mounted fate copper band and bolted-operated, plug connectors.
Type HFP-P:curves for R≥800mm,with factory-mounted flat copper band and screw connectors.
Approved and listed by: CCC, ISO9001 and CE.

Features:
1. The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.


2. Strict selection of materials
The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance


3. Small volume, variety of installation methods
Small occupying space, snap-in installation, convenient to use, easy to maintain

Model Code

Description:

Support mechanisms that attach to crane rail.

1. Fix and secure support brackets at the correct pitch.(Note:Fix support brackets at a pitch that is divisible into the conductor bar length.This will always ensure that the joint positions do not foul the support brackets.)The recommended support pitch is shown below.

2. Observe all alignment tolerances.

Features:

1. The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.

2. Strict selection of materials

The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance

3. Small volume, variety of installation methods

Small occupying space, snap-in installation, convenient to use, easy to maintain
