Flat Cable Festoon Track System For Crane And Trolley Power Supply
Flat Cable Festoon Track System For Crane And Trolley Power Supply
Flat Cable Festoon Track System For Crane And Trolley Power Supply
Flat Cable Festoon Track System For Crane And Trolley Power Supply
Flat Cable Festoon Track System For Crane And Trolley Power Supply
Flat Cable Festoon Track System For Crane And Trolley Power Supply
Specifications
Brand Name :
NANTE
Model Number :
C40
Certification :
ISO
Place of Origin :
China
MOQ :
20m
Price :
4-4.8usd/m
Payment Terms :
L/C, T/T
Supply Ability :
6000m/week
Delivery Time :
7 days
Packaging Details :
Iron Frame Box, Wooden Case, Naked
Transport Package :
Wooden Box
Specification :
Standard
Trademark :
NANTE
Model :
C40
Description

Flat Cable Festoon Track System For Crane And Trolley Power Supply

Specifications

For delivering power&control to mobile equipment in a safe, efficient and maintenance free method.

Detailed Product Description
Galvanized Steel Conductor Rails With Brass Dowel , C Rail and Trolley, Stretched Wire Festoon System, Festoon Cable Trolley, Festoon Cable System.

Detailed Product Description
Festoon System can hold conductor cables and hoses (hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe, efficient and maintenance free method.

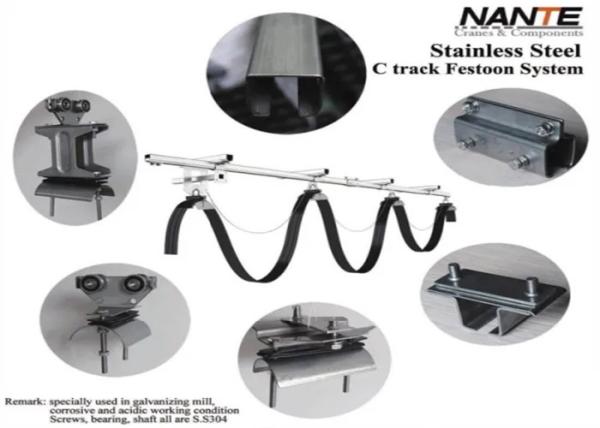

The C-track system is one of the most versatile festooning techniques available. It is an all-purpose system suited for either indoor or outdoor use under a broad range of operating conditions in a mild environment condition.

Application

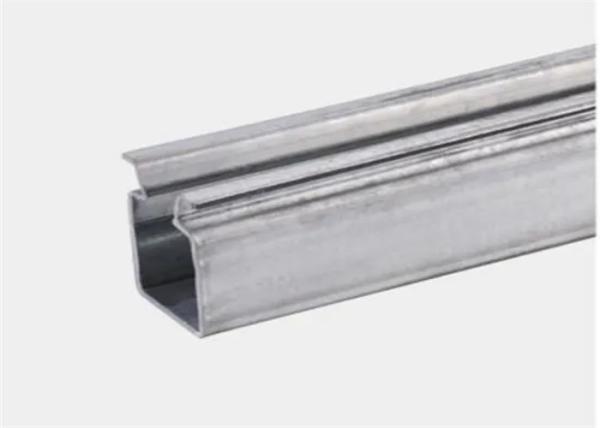

C-rail systems applications: crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.

Design features:
Compact arrangement, corrosion resistance and simple assembly are its essential features. Easy for transportation and installation

Type C32*30*1.5 C40*40*2.0 C63*63*4.0 C30*28*1.5
Material Galvanized steel / Except C63
Weight kg/m 1.19 2 5.98 1.03
Technical data
A 32 40 63 30
B 30 40 63 28
C 12 13 18 10
6 1.5 2 4 1.5
Spacing Max. Cable Load
1.5m 89kg 188kg 503kg 70kg
2.0m 51kg 103kg 425kg 36 kg
2.5m 39kg 73kg 302kg 22kg
3.0m 23kg 49kg 195kg -
4.0m - 28kg 85kg -

Flat Cable Festoon Track System For Crane And Trolley Power Supply
