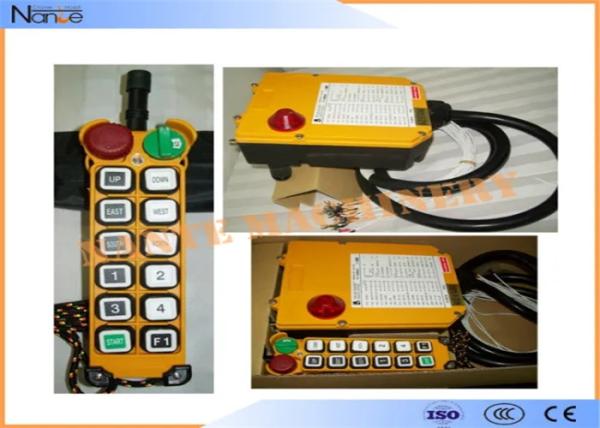

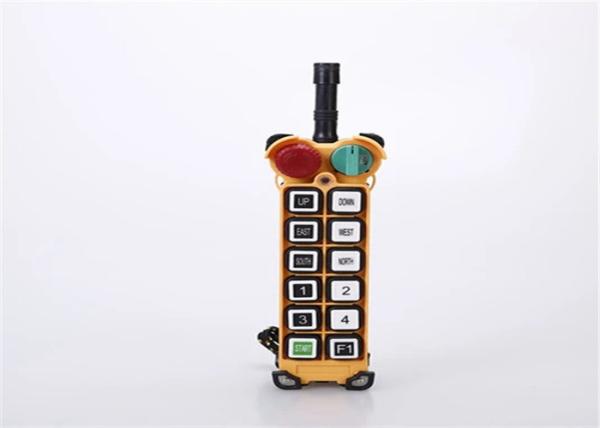

IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
Specifications
Brand Name :
TELECRANE
Model Number :
F21-12D
Certification :
ISO, CE, CCC
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
500000 Piece/Pieces per Year
Delivery Time :
According to customer's requirements
Packaging Details :
cartons
Model Number: :
F21-12D
Use: :
Universal
Weight: :
Approx.255g
Speed: :
Double speed
Shell: :
Fiberglass
Dimension: :
18.6*6.1*5.1cm
Control Distance: :
Within 100m
Description

Detailed Product Description

Overhead Bridge Crane Radio Indusrial Remote Controls For Hoist

F24-12D Overhead Bridge Crane Radio Remote Controls

Function,

11 programmable, double step pushbuttons, EMS plus start and stop

Transmitter


• Dimension: 218x60x60mm
• Weight: Approx.350~365g (without batteries)

Receiver


• Dimension: 290x230x70mm
• Weight: 1900 g (without wire cable)
• Receiver Power Supply: 24/48/110/220/380 VAC

Detailed Product Description

Radio Remote Controls have become a key element within a modern working context where safety, productivity, freedom of movement has a continuously increasing importance. Industrial radio controllers are consequently for time saving and risk reduction working instruments.

Thanks to the radio controller, the operator stands in the place with the best visibility and lowest operation risk. The wireless technology allows controlling the machine in full autonomy without requiring other operators to support the job with indications.

Application

The ranges of applications of our industrial radio remote control system

1. overhead bridge cranes,

2. gantry crane

3. beam launcher

4. monorail hoists,

5. motorized jib cranes o

6. Other pieces of industrial equipment.


General Specification

  • Frequency 310.3-331.2 MHz
  • Frequency control quartz crystal
  • Output terminal full sealed relay 20A/250V passive switch signal .
  • Structure glass fiber
  • Receiving high frequency sensitivity >-110dBm
  • Transmitting high frequency output power<4dBm
  • Reaction rate 0.065s.
  • Protection IP65
  • Operation distance 100 meters
  • Convenient Windows port to operate and copy function.
  • UP/Down East/West South/North keys can be set to mutual rejection.
  • The key Start function can set to start skip or common by computer.

IP65 Overhead Bridge Crane Industrial Radio Remote Control F21-12D
