Galvanized Steel Tow Arm for NSP-H32 Conductor Rail Accessories
Galvanized Steel Tow Arm for NSP-H32 Conductor Rail Accessories
Galvanized Steel Tow Arm for NSP-H32 Conductor Rail Accessories
Galvanized Steel Tow Arm for NSP-H32 Conductor Rail Accessories
Specifications
Brand Name :
NANTE
Model Number :
NSP
Certification :
ISO9001, CE, CCC
Place of Origin :
CHINA
MOQ :
100m
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1000000 meters per year
Delivery Time :
1-2 weeks
Packaging Details :
Carton,plywood case
Price :
5-20usd/m
Material :
Galvanized Steel
Rated Current :
320Amp/1250Amp
Length :
4000mm
Type :
H32
Weight :
1.5kg
Color :
Green
Description

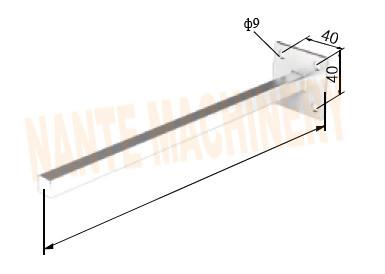

Galvanized Steel Tow Arm for NSP-H32 Conductor Rail Accessories

Specifications

Single Safe Collector Bracket
1.Easy Installation
2.Top Quality
3.Factory Price
4.Long Life Expectancy

Description:

Support mechanisms that attach to crane rail.

1. Fix and secure support brackets at the correct pitch.(Note:Fix support brackets at a pitch that is divisible into the conductor bar length.This will always ensure that the joint positions do not foul the support brackets.)The recommended support pitch is shown below.

2. Observe all alignment tolerances.

Features:

1.The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.

2.Strict selection of materials

The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance

3.Small volume, variety of installation methods

Small occupying space, snap-in installation, convenient to use, easy to maintain

Single Safe Collector Bracket

Galvanized Steel Tow Arm for NSP-H32 Conductor Rail Accessories

Unipole Conductor Rail system NSP-H Series
Conductor rail Aluminium Copper
Type H19 H24 H32 H24 H32
Nominal current at 100% DC and 35°C [A] 150 250-300 320-1250 500-800 800-1600
D.C.resistance at 35°C [Q/km] 0.376 0.2030.187 0.1530.046 0.1160.067 0.670.0.39
Impendance at 35C [Q/km] 0.376 0.2090.195 0.1550.048 0.1180.069 0.0690.04
Support spacing [m] 1.8 1.5 1.8 1.5 1.8
Rail length [m] 4/6 4/6 4/6 4/6 4/6
Housing length [m] 3.88/5.88 3.88/5.88 3.83/5.83 3.88/5.88 3.83/5.83
Max.voltage [V] 660V Dielectric strength [KV/mm] 30-40
Travelling speed ≤600 m/min standard GB7251.2-2006
Expansion joint Only required when total length≥200m
Flame retardant Class B1-no flaming particles, self-extinguishing
Permissible ambient temperature Standard insulation -20℃- +70℃
High temperature insulation -10℃- +115℃

Description:

Support mechanisms that attach to crane rail.

1. Fix and secure support brackets at the correct pitch.(Note:Fix support brackets at a pitch that is divisible into the conductor bar length.This will always ensure that the joint positions do not foul the support brackets.)The recommended support pitch is shown below.

2. Observe all alignment tolerances.

Features:

1.The computer optimized design decides characteristics of low AC impedance, low energy consumption, large surface area, high-performance conductivity, good heat dissipation, big bending moment, high bending strength, etc.

2.Strict selection of materials

The covers are made from metaldehyde, and brilliant in high intension, aging resistance, good dimensional stability, small tolerance range, high product precision, easy installation, reliable performance

3.Small volume, variety of installation methods

Small occupying space, snap-in installation, convenient to use, easy to maintain
