JZ-6800 Multi-Function Test Bench with 0-2400 Bar Rail Pressure 11 Kw Motor Power for Euro 3---Euro 6 Injector Pump Testing

Specifications

MOQ :

Price :

7800

Motor Power :

11 Kw

Power :

3-Phase 4-Wire 380V 50/60Hz

Speed :

0-4000 Rpm

Rail Pressure :

0-2400 Bar

Rail Pressure Precision :

5 Bar

Filter Precision :

< 5 Um

Tank Volume :

30 L

Fuel Temperature :

38-42 'c

Net Weight :

615 Kg

Specification :

1900*820*1550 mm

Packing Size :

2065×1000×1770 mm

Speed Control Model :

Converter Control

Temperature Control System :

Air-Cooled Heat Dissipation

Nozzle Sensor :

Imported Original Elliptical Type Flow Sensor

Fuel Pump Sensor :

Imported Original Vane Type Flow Sensor

Description

Product Introduction

JZ-6800 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors and high-pressure pumps. It can test thousands of injectors and high-pressure pumps, including B-osch, D-elphi, D-enso, S-iemens, C-aterpillar and so on. T he experimental data are complete.

It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
JZ-6800 Multi-Function Test Bench with 0-2400 Bar Rail Pressure 11 Kw Motor Power for Euro 3---Euro 6 Injector Pump Testing

Functions Description

1. Integrated flow sensor	13. Can test piezo injectors
2. Full-automatic Fully function	14. Can test common rail injectors
3. With electronic measuring system	15. Can test MID-pressure injectors
4. Prepositioned precise filter for sensor	16. Can test common rail pumps
5. Intelligent algorithm Automatic calibration	17. Can test actuatedpumps
6. Real-time display the fuel delivery graph	18. Can test unit injectors & pumps
7. Many language interfaces can be switched	19. Can test S-iemens DCP pumps
8. Automatically heating/cooling control for test oil	20. Can test D-elphi CRSP pumps
9. Data backup, software update and cloud upgradable	21. Can test B-osch CP1/CP2/CP3 pumps
10. B-osch CP3 pump and high pressure oil rail with DRV	22. Can test D-ENSO HP3/HP4, HP0 pumps
11. B-osch datas are from the orginal equipment of EPS708	23. Can test 6 injectors one by one
12. D-enso, D-elphi, S-iemens data are calibrated from the latest injectors	24. Linear calibration of flow sensor

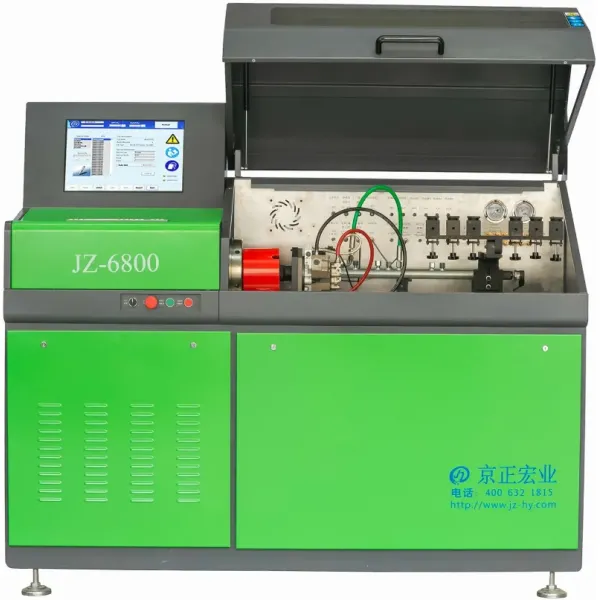

Product Details

JZ-6800 Multi-Function Test Bench with 0-2400 Bar Rail Pressure 11 Kw Motor Power for Euro 3---Euro 6 Injector Pump Testing

Technical Parameters

Technical Parameters
Output	11 KW
Power	3-Phase 4-Wire 380V 50/60Hz
Speed	0~4000 RPM
Rail Pressure	0~2400 Bar
Rail Pressure Precision	±5 Bar
Tank Volume	30 L
Fuel Temperature	40±2ºC
Filter Precision	< 5μm
Net Weight	615 kg
Packing Size	2065×1000×1770 mm
Speed Control Model	Converter Control
Temperature Control System	Air-Cooled Heat Dissipation
Nozzle Sensor	Imported Original Elliptical Type Flow Sensor
Fuel Pump Sensor	Imported Original Vane Type Flow Sensor
Language	English, Spanish, Russian, etc
Material	Metal Plate
Painting	Powder Painting, Durable
Color	Green (can be customized)
Logo	Jing Zheng Hong Ye (can be customized)
MOQ	1 Piece
Payment	40% Deposit, the rest paid before shipment
Warranty Time	12 months
Delivery time	30 days after prepaid
Shipping Packing	Wooden Case

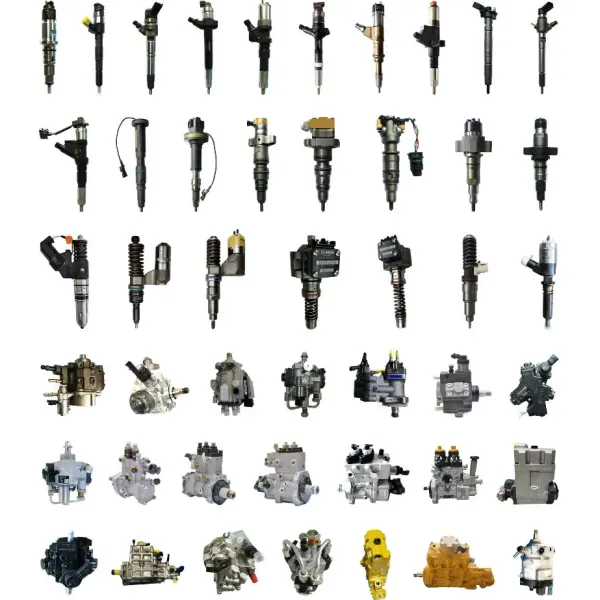

Testing Scope

JZ-6800 Multi-Function Test Bench with 0-2400 Bar Rail Pressure 11 Kw Motor Power for Euro 3---Euro 6 Injector Pump Testing

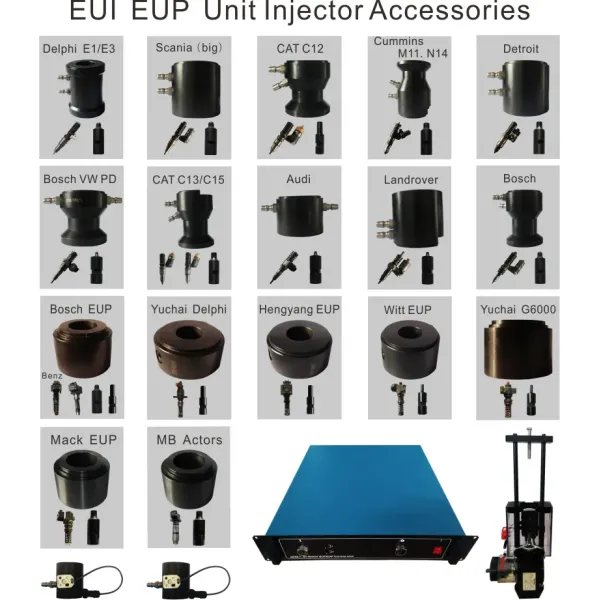

Related Products and Fixtures
