Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Specifications

MOQ :

Price :

2800

Model NO. :

JZ-205

Motor Power :

2.6 Kw

Power :

220V 50/60Hz

Speed :

0-1000 Rpm

Rail Pressure :

0-2400 Bar

Rail Pressure Precision :

5 Bar

Filter Precision :

< 5 Um

Tank Volume :

8 L

Fuel Temperature :

38-42 'c

Net Weight :

100 Kg

Metering Way :

Flow Sensor

Specification :

700*600*670 mm

Gross Weight :

120 kg

Packing Size :

840×700×860 mm

Temperature Control :

Air-Cooled Heat Dissipation

Description

Product Introduction

JZ-205 common rail injector test bench adopts full automatic control, which can conveniently repair and test:
Test common rail injector
Test smart injector
Test piezoelectric injector
Generate IQA code

Optional function

Test 4-pin injector
Generate VDO-IIC code
Generate C2i, C3i code
Generate piezo IMA, ISA code
Generate injector QR code

It can test thousands of injectors, including B-osch, D-elphi, D-enso, S-iemens, C-aterpillar and so on. The experimental data are complete.
Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Functions Description

1. Integrated flow sensor	2. Can test piezo injectors
2. Full-automatic Fully function	3. Can test common rail injectors
3. With electronic measuring system	4. Linear calibration of flow sensor
4. Accurate data Multiple protection	5. Industrial computer with touch-screen
5. Prepositioned precise filter for sensor	6. Real-time display the fuel delivery graph
6. Intelligent algorithm Automatic calibration	7. Many language interfaces can be switche
7. Automatically heating/cooling control for test oil	8. Opening pressure and flow rate of oil nozzle
8. B-osch CP1 pump and high pressure oil rail with DRV	9. Data backup, software update and cloud upgradable
9. B-osch datas are from the orginal equipment of EPS708	10. Function debugging can be realized under different speed conditions
10. D-enso, D-elphi, S-iemens data are calibrated by the latest injectors	11. Test items: preheating emptying; tightness; full load; fuel return; discharge volume; pre-injection volume; idle oil volume

Product Details
Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Technical Parameters

Technical Parameters
Output	2.6 KW
Power	220V 50/60HZ
Speed	0~1000 RPM
Rail Pressure	0~2400 Bar
Rail Pressure Precision	±5 Bar
Tank Volume	8 L
Fuel Temperature	40±2ºC
Filter Precision	< 5μm
Gross Weight	120 kg
Packing Size	840×700×860 mm
Speed Control Model	Converter Control
Temperature Control System	Air-Cooled Heat Dissipation
Nozzle Sensor	Imported Original Elliptical Type Flow Sensor
Language	English, Spanish, Russian,etc
Material	Metal Plate
Painting	Powder Painting, Durable
Color	Dark Blue/ Green (can be customized)
Logo	Jing Zheng Hong Ye (can be customized)
MOQ	1 Piece
Payment	40%Deposit, the rest paid before delivery
Warranty Time	12 months
Delivery time	30 days after prepaid
Shipping Packing	Wooden Case

Testing Scope

Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Our Advantage

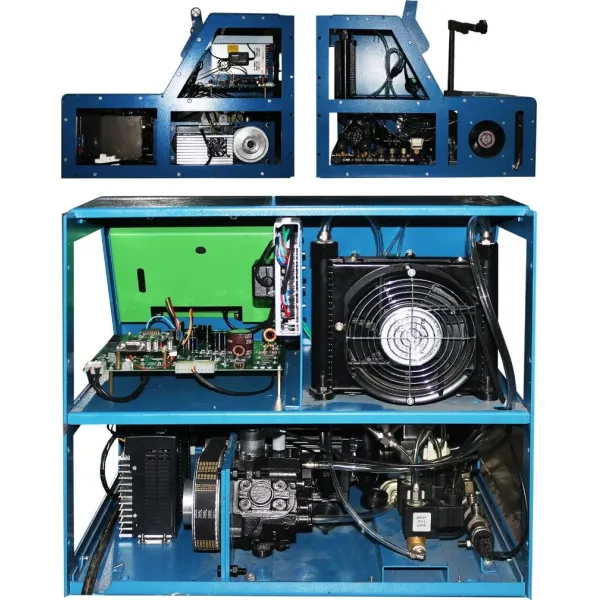

Hardware advantage

1. Motor power is 2.6 KW

2. Air-cooled heat dissipation kit

3. Metering valve detect the fuel flow

4. Imported flow sensor from Germany

5. Equipped with B-osch genuine DRV

6. Equipped with B-osch genuine CP1 pump

7. Equipped with B-osch genuine common rail tube

8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection)

9. Short-circuit protection, ground protection, over-pressure protection during the testing

10. Equipped frequency converter to achieve testing function under different speed conditions

11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life

Software advantage

1. More than 3000 test data used for different brands injectors and pumps calibrations

2. Data backup, system software and database upgrade free charge all the time (by remote)

3. Automatic testing the fuel quantity of all working conditions, automatic generate report after testing

4. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing

5. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing

Packing and Delivery

Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Our Company

Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Exhibition Full Automatic Control Common Rail Injector Tester with 0-2400 Bar Rail Pressure and 2.6 Kw Motor Power

Why Choose Us

1.  Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
     Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2.  Independent design and development team,and rich produce experience.
3.  Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, they are all from original of B-osch.
4. Strict QC,  good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
