JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
Specifications
Certification :
CE, ISO
MOQ :
3
Price :
3500
Model Number :
JZ12PS-D
Main Output :
5.5/7.5/11/15kw
Testing Cylinders :
6, 8, 12
Voltage :
380V, 220V, 415V
Oil Supply Pump :
10L/Min
Electrical Frequency :
50/60Hz
Oil Pressure :
High Pressure 0-40bar, Low Pressure 0-4bar
Oil Tank Volume :
60L
Speed :
0-4000rpm
Rotary Times :
0-9999
Drive Shaft Height :
125mm
Heating Power :
2kw
PC Power :
12/24V
Temperature Range :
30-65°C
Drive Coupling Diameter :
120mm
Net Weight :
715kg
Dimensions :
1600*1000*1450 mm
Description

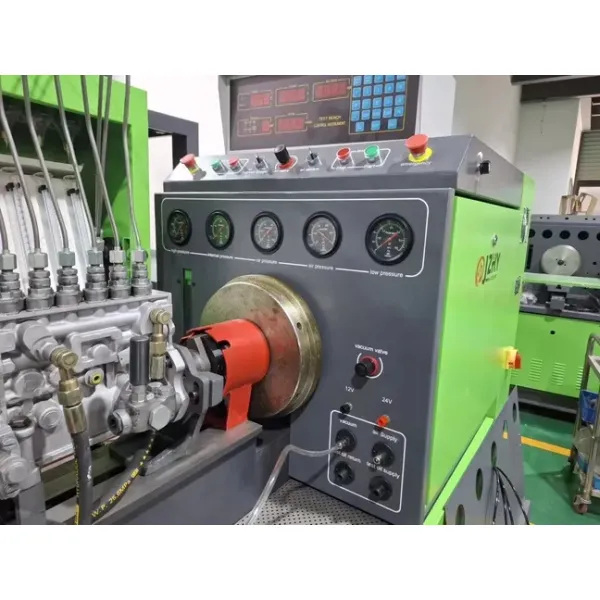

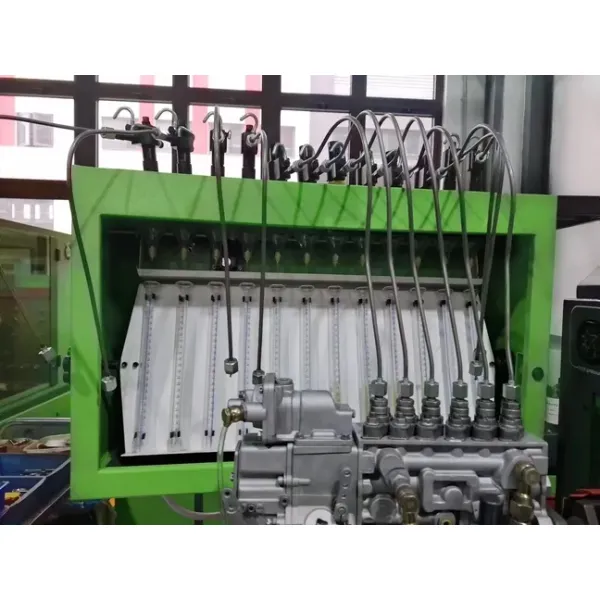

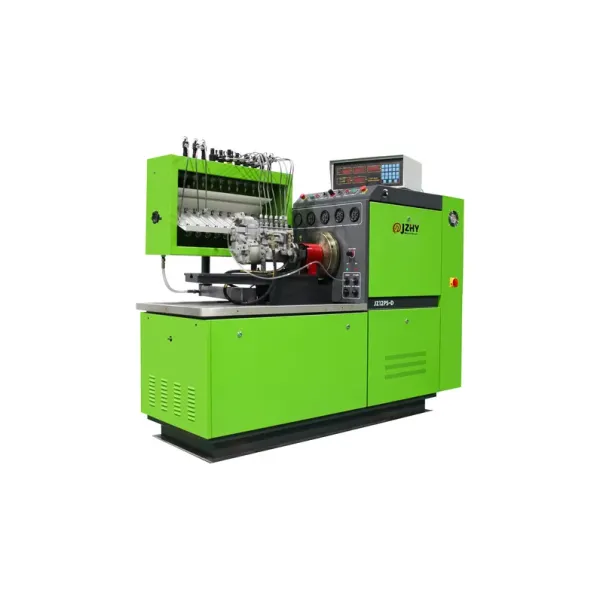

JZ12PS-D Mechanical Diesel Pump Test Bench Machine
This advanced mechanical diesel pump test bench represents the latest innovation in high-power, environmentally safe testing equipment. Featuring human-machine interface technology, it provides digital control of RPM, temperature, pressure, and diesel fuel pump technical parameters with synchronized printing capabilities.
The system offers intuitive operation with true human-machine dialogue functionality. Built with high-quality frequency conversion devices and cast iron super-size base beds, this series delivers exceptional stability, reliability, ultra-low noise operation, and comprehensive auto-protection features.
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
Standard Testing Functions
  • Testing and debugging of oil supply amount and cylinder uniformity
  • Checking oil supply spacing and static state supply starting points
  • Performance testing and adjustment of mechanical speed controllers
  • Pump body sealing inspection
  • Distribution pump solenoid valve testing
  • Distribution pump return oil testing
  • Internal pressure measurement of distribution pumps
  • Vacuum capacity regulator inspection
  • Compensator pressure checking
  • Fuel supply pump testing
Key Characteristics
  • Advanced frequency conversion and industrial computer control technology
  • Compatible with components for measuring international high-pressure oil pumps
  • Debug speed curve analysis for injection oil pumps
  • Large inertia flywheel for steady drive and optimal balance
JZ12PS-D Diesel Pump Test Bench with 6/8/12 Cylinder Testing High Pressure 0-40bar and Digital Control Interface
Technical Specifications
Model Number JZ12PS-D
Color Green
Main Output (Option) 5.5/7.5/11/15kw
Testing Cylinders (Option) 6, 8, 12
Voltage 380V, 220V, 415V
Oil Supply Pump 10L/min
Electrical Supply Frequency 50/60HZ
Oily Supply Pressure High Pressure 0-40Bar, Low Pressure 0-4Bar
Protecting Level IP54
Oil Tank Volume 60L
Speed 0~4000 RPM
Rotatary Times 0-9999
Pressure Dial Low Pressure 0-6Bar, High Pressure 0-60Bar, Inside Pressure 0-16Bar
Positive and Negative Pressure -1-2.5Bar
Engine Oil Dial 0-10Bar
Drive Shaft Center High 125 mm
Heating Power 2 kw
PC Power 12/24V
Temperature 30-65°C
Drive Coupling Diameter 120 mm
Dimension 1600*1000*1450 mm
Metering Bottle 45ml*150ml*260mm
Net Weight 715 kg

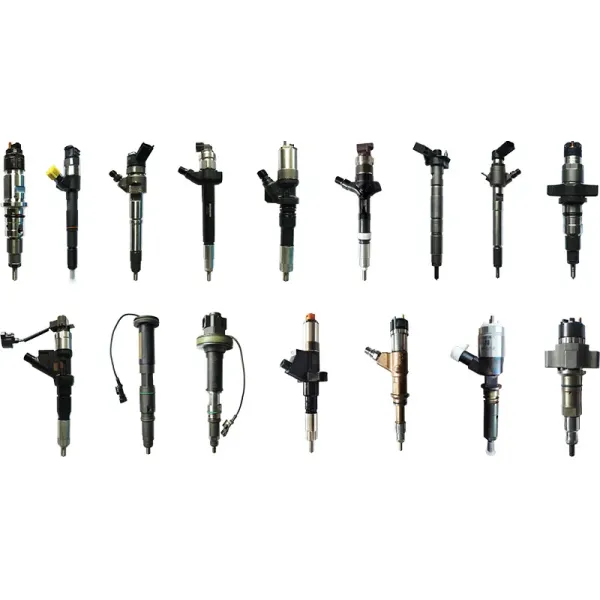

Related Products and Fixtures
