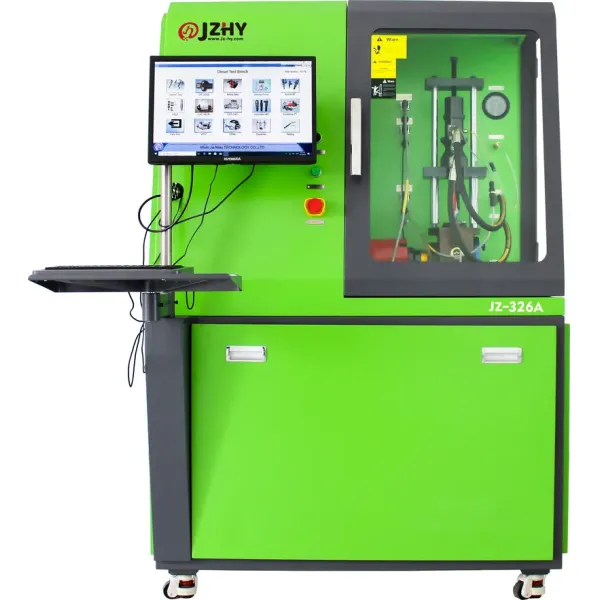

High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
Specifications
MOQ :
1
Price :
6400
Model NO. :
JZ-326A
Motor Power :
7.5 Kw
Power Supply :
3-Phase 4-Wire 380V 50/60Hz
Rail Pressure Precision :
5 Bar
Filter Precision :
< 5 Um
Diesel Tank Volume :
40 L
Fuel Temperature :
38-42 'c
Net Weight :
500kg
Metering Way :
Flow Sensor
Machine Dimension :
1280*990*1700 mm
Packing Dimension :
1580*1100*1900 mm
Speed Range :
0 -4000 RPM
Rail Pressure :
0-2700 Bar
Nozzle Sensor :
Gear Flow Sensor : 2 pcs
Gross Weight :
530KG
Description
Product Introduction

JZ-326A EUI EUP test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors. The experimental data are complete.High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing

Standard Functions:



Test unit injectors (EUI)
Test unit pumps (EUP)



Optional Functions:



Test X15, Q60 HPI



Test Range:



Unit injectors and unit pumps

Product Details


High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing
High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing




High Precision EUI EUP Test Bench with 7.5 Kw Motor Power and 40L Diesel Tank Volume for Injector Pump Testing


Technical Parameters
Technical Parameters
   Model Number    326A
   Output    7.5KW
   Speed    0 -4000 RPM
   Power    3-Phase 4-Wire 380V 50/60HZ
   Nozzle Sensor    Gear Flow Sensor : 2 pcs
   Rail Pressure    0-2700 Bar
   Diesel Tank Volume    40L Filtration Accuracy: 3 µm
   Fuel Temperature    40±2°C
   Machine Dimension    1280*990*1700 mm
   Packing Dimension    1580*1100*1900 mm
   Net Weight    500KG
   Gross Weight    530KG
