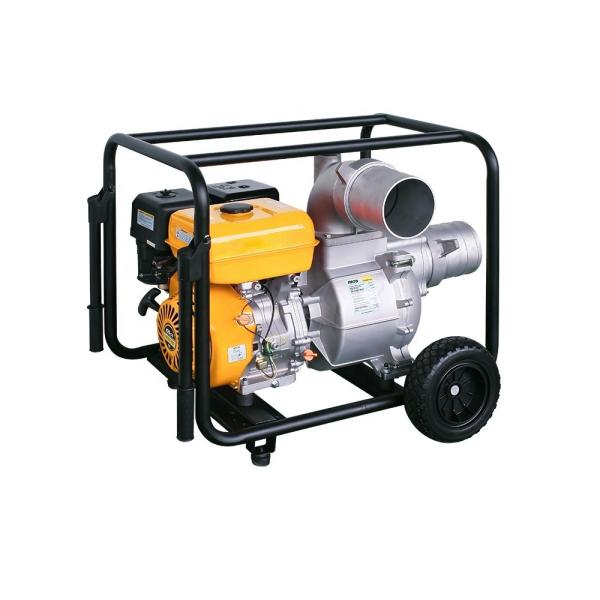

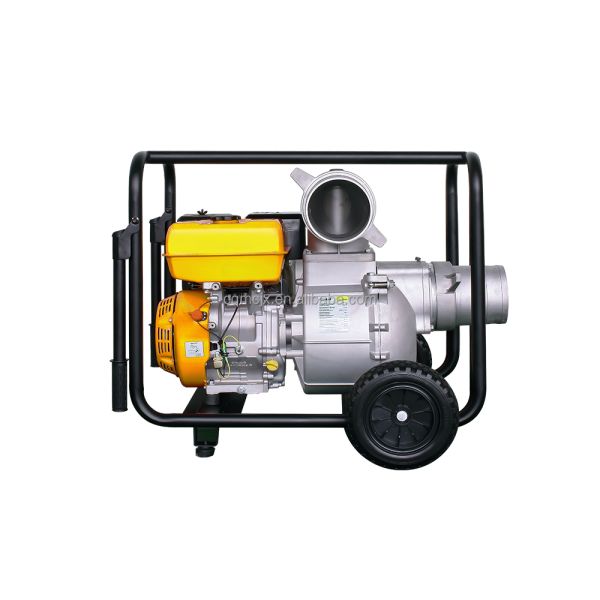

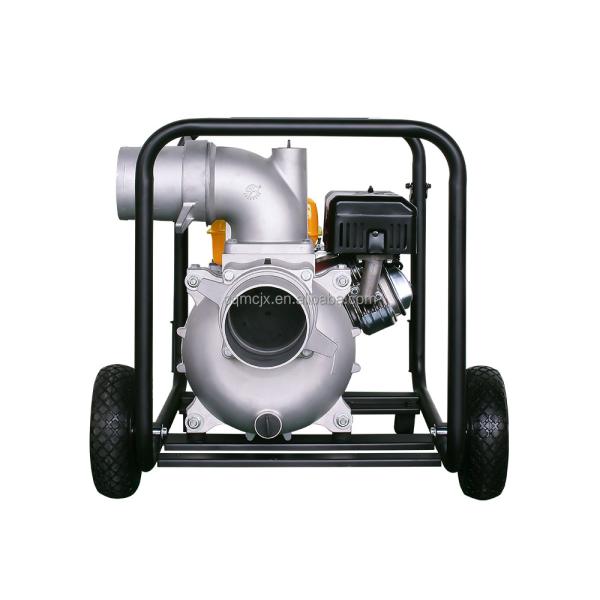

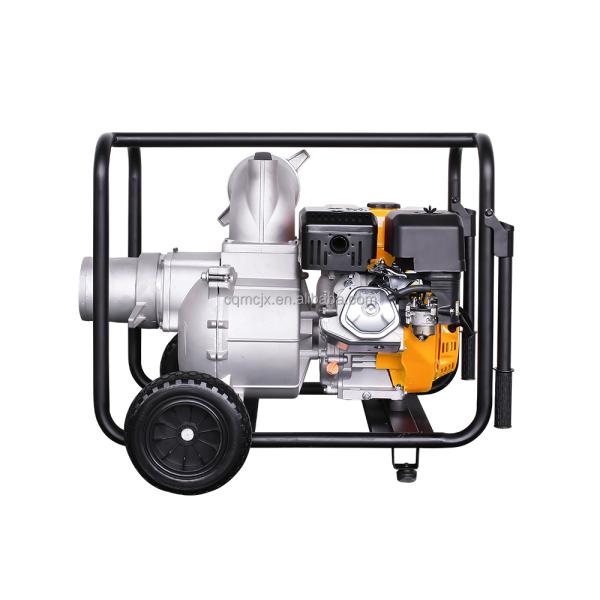

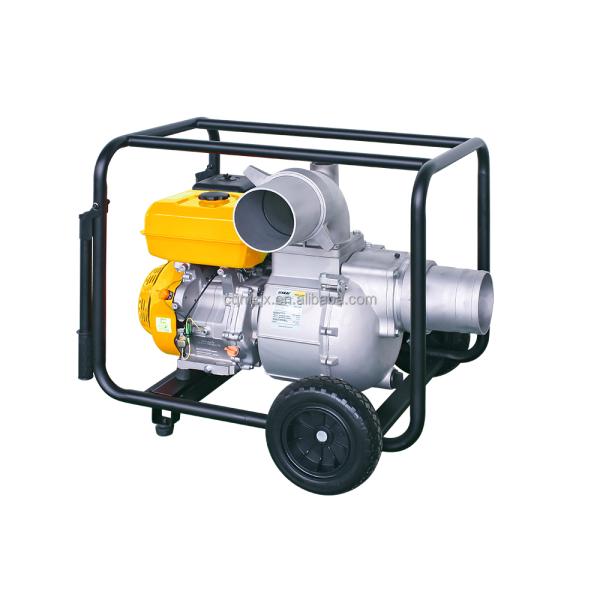

68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
Specifications
Warranty :
1 years
Customized support :
OEM, ODM
Brand Name :
KATHER
Model Number :
MCG150ZB20-7.6Q
Place of Origin :
Chongqing, China
Application :
Other, Family Homes, Food and Beverage Industry, Industrial Utilities, Irrigation and Agriculture, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control
Horsepower :
12hp
Power Source :
Gasoline
Pressure :
High Pressure
Structure :
Single-stage Pump
Outlet Size :
150mm(6")
Voltage :
220v
Power :
9kw, 9kw
motor :
Gasoline
Product name :
MCG150ZB20-7.6Q
Usage :
Sewage,pools,irrigate fields
Engine type :
Single cylinder, 4 Stroke
Fuel :
Gaosline
Max head :
20m
Flow rate :
140m³/h
OEM :
OEM Services Provided
Weight :
68kg
Size :
807*585*667mm
MOQ :
5 units
Price :
$45.99 - $239.99/units
Description
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
Brand Name
KATHER
Model
MCG150ZB20-7.6Q
Startng system
Recoil starter
Bore x stroke
90*66mm
Displacement
420cc
Net power
9kw
Suction head lift
7m
Total head lift
20m
Net weight
68kg
Dimensions
807*585*667mm
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
Water Pump
A water pump is a machine that conveys or pressurizes a liquid. It transmits the mechanical energy of the prime mover or other external energy to the liquid to increase the energy of the liquid, and is mainly used to convey liquids including water, oil, acid and alkali liquids, emulsions, suspended emulsions and liquid metals. Can also transport liquids, gas mixtures and liquids containing suspended solids. The technical parameters of water pump performance are flow, suction range, head, shaft power, water power, efficiency, etc.; according to different working principles can be divided into volumetric pumps, vane pumps and other types. Volumetric pump is the use of its studio volume changes to transfer energy; vane pump is the use of rotary vane and water interaction to transfer energy, there are centrifugal pumps, axial pumps and mixed flow pumps and other types.
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge

Pump body:

The pump body consists of two main parts: suction chamber and pressure chamber, the inlet of suction chamber and the outlet of pressure chamber are the inlet flange and outlet flange of the pump, which are used to connect the inlet pipe and outlet pipe. Suction chamber is generally a gradually shrinking conical pipe or equal diameter straight pipe, its role is to introduce the water flow into the impeller, and to provide the impeller with the required flow conditions.
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge

Pump inlet and outlet：

General pipeline pumps are marked, in the pump body or the base of the arrow pointing to the pipeline pump outlet, the remaining one is the inlet. Observe the structure, the closer to the base is the inlet, as shown in the figure below, the right direction of the closer to the base, which is the inlet, the water flow into the impeller, suction and then thrown out to the outlet so as to enter the pipeline.
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge

Recoil starter:

Pull the recoil starter grip slowly until resistance is felt and the notch on the starter pulley aligns with the hole at the top of the recoil starter cover. This will close the valves so moisture cannot enter the engine cylinder. Return the recoil starter
grip gently.
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge
68kg Agricultural Irrigation Self Priming Gasoline Water Pump with Big Discharge

Q1:Are you a factory or a trading company?

A:We are a factory.

Q2:What is the main products of your factory?

A:We are a factory.

Q3:Where is your factory located?

A:Agricultural railcar,Tiller&Cultivator,Generator,Water pump,Engine,Lawn Mower,Snow Blower,Rotary Tiller,Chainsaw,Garden Machinery,etc.

Q4:Do you support customization?What's the MOQ?

A:Of course, We have 15 years of production customization experience in OEM/ODM. 1 set

Q5:How can i order and make payment?

A:Once clear your requirement which product is ideal for you.We will send proformainvoice to you.You can pay via Trade Assurance,T/TBank,WesernUnion,Credit Card or Paypal as you like.

Q6:What are your payment terms?

A:T/T 30% deposit, 70% balance to be paid when the goods are ready. If you have special payment needs, please discuss with our sales staff first.

Q7:How long is your warranty?

A:1 year or 1000 hours warranty whichever comes first except the wearing and tearing parts.We suggest customers buy some wearing and tearing parts in each order.
