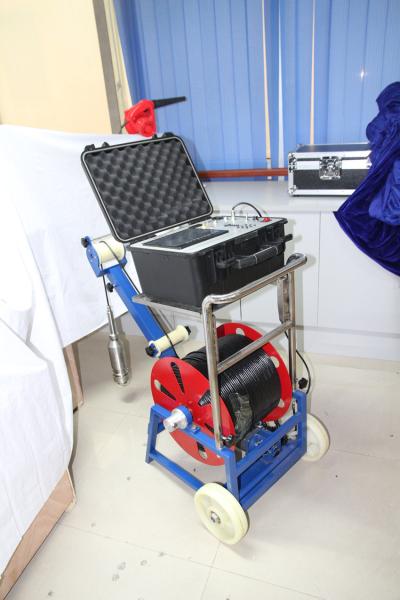

Groundsearch Colour Borehole Video Camera System
Groundsearch Colour Borehole Video Camera System
Specifications
Brand Name :
Gold
Model Number :
GYGD
Certification :
ISO
Place of Origin :
Chongqing, China
MOQ :
1 set
Price :
FOB Chongqing USD2000-10000
Supply Ability :
100sets/month
Delivery Time :
10 days
Packaging Details :
Export case
Type :
Rotary camera
Warranty :
12 months
Description

Groundsearch Colour Borehole Video Camera System

Usage:

Stratum structure divide

Well wall stratum crack

Karst development discrimination

Distinguish fractured development zone

Determine the karst distribution position

Long time underground borehole monitoring

Specification:

No. Product Configurations Dimension Specification
1 Probe Dia.: 80mm Length:470mm

(1) Front lens are imported resins,

(2) Not easy damaged,

(3) Pressure is 16-30Mpa

(can be under 3000m deep water)

(4) Light: 6-12LED Lights
2 Camera

(1) Japan SONY inductor 1/3'' CCD,

(2) Image definition is HD 750 TVL

(3 Watertight

(4) Camera Angle: 180/360 degree
3 Professional logging cable

Length:

0-2500m(optional)

(1) With steel wire,

(2) Tension is 150kg,

(3) Destroy tension is 260kg
4 Main Control Host

(1) 220V/380V/12V optional.

(2) LCD dispaly can be 8/15inches.

(3) Aircraft grade aluminum alloay material
5 Downhole Pulley Can change the booth size according to the well mouth size
6 Logging Winch Hand/Electrical winch
7 Lithography System

(1) SONY disc-carving machine,(optional)

(2) Discs and U disk can be used

Groundsearch Colour Borehole Video Camera System

Contact Name: Vivienne

Mobile Phone: +86-15123029803

Skype: viviennecq

FAX: 023-62940030

Tele: +86-15123029803

Any of your requirements would be really appreciated ! Thanks.
