Specifications
Model Number :
GL82H170
Certification :
ORIGINAL PARTS
MOQ :
1-10 PIECE
Price :
Negociation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Supply Ability :
500pcs/month
Packaging Details :
Tray, 15cm X 15cm X 10cm
Chipset No. :
GL82H170
Product Collection :
Intel 100 Series Chipsets
Code Name :
Products formerly Skylake
Vertical Segment :
Desktop
Status :
Launched
Launch Date :
Q3'15
Bus Speed :
8 GT/s DMI3
Lithography :
22nm
TDP :
6 W
Description

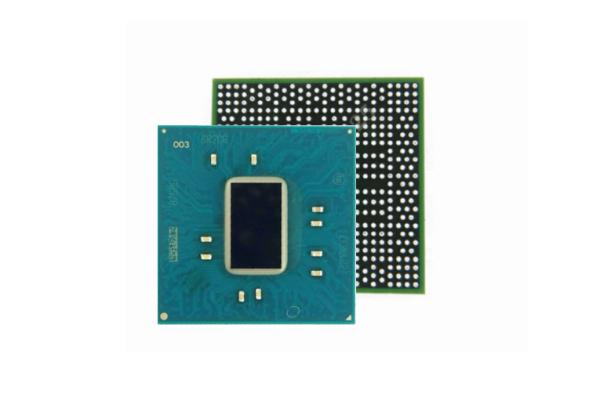

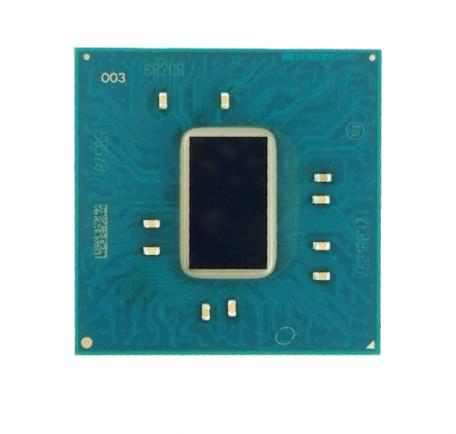

Chipset GL82H170 Desktop Chipsets for Computer

Non Embedded GL82H170 Desktop Chipset 8 GT/S DMI3 Bus Speed 6W TDP For Computer

Basic Feature:

Product:Desktop Chipsets
Type:PCH
Code Name:Skylake
Embedded Options:Non-Embedded
PCIe Revision:3.0
PCIe Configurations:16 Lanes, x1, x2, x4
Integrated Graphics:Without Graphics
Number of USB Ports:14
Number of SATA Ports:6
TDP - Max:6 W
Packaging:Reel
Length:23 mm
Width:23 mm

Supplemental Information

  • Embedded Options Available:No
  • DatasheetView now

Memory Specifications

  • # of DIMMs per channel:2

Processor Graphics

  • # of Displays Supported :3

Expansion Options

  • PCI Support:No
  • PCI Express Revision:3.0
  • PCI Express Configurations :x1, x2, x4
  • Max # of PCI Express Lanes:16

I/O Specifications

  • # of USB Ports:14
  • USB Revision:3.0/2.0
  • USB 3.0:Up to 8
  • USB 2.0:Up to 14
  • Max # of SATA 6.0 Gb/s Ports:6
  • RAID Configuration:PCIe* 0,1,5 / SATA 0,1,5,10
  • Integrated LAN:Integrated MAC
  • Supported Processor PCI Express Port Configurations:1x16

Package Specifications

  • Package Size:23mm x 23mm

Advanced Technologies

  • Intel Optane™ Memory Supported :No
  • Intel Virtualization Technology for Directed I/O (VT-d):Yes
  • Intel vPro™ Platform Eligibility :No
  • Intel ME Firmware Version:11
  • Intel HD Audio Technology:Yes
  • Intel Rapid Storage Technology:Yes
  • Intel Rapid Storage Technology enterprise:No
  • Intel Standard Manageability:No
  • Intel Smart Response Technology:Yes
  • Intel Stable Image Platform Program (SIPP):No
  • Intel Rapid Storage Technology for PCI Storage:Yes
  • Intel Smart Sound Technology:Yes
  • Intel Platform Trust Technology (Intel® PTT):Yes

Security & Reliability

  • Intel Trusted Execution Technology :No
  • Intel Boot Guard:Yes
