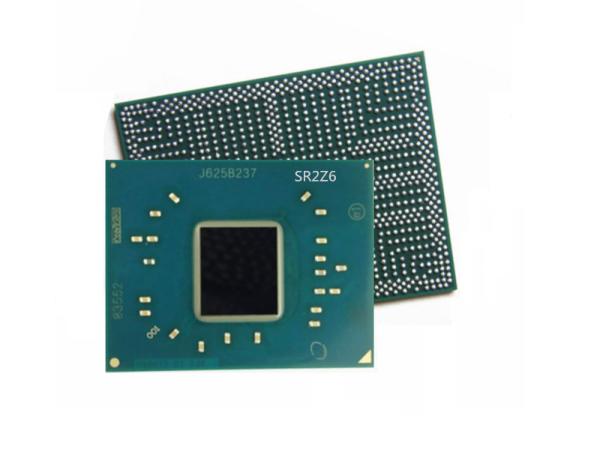

14nm Lithography Laptop CPU Processors Celeron N3450 SR2Z64M Cache Up To 2.4 GHz
14nm Lithography Laptop CPU Processors Celeron N3450 SR2Z64M Cache Up To 2.4 GHz
Specifications
Model Number :
N3450
MOQ :
500piece
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Packaging Details :
tray, 10cmX10cmX5cm
Porcessor Number :
N3450 SR2Z6
Product Collection :
Celeron Processor N Series
Code Name :
formerly Apollo Lake
Market Segment :
MOBILE
StatusLaunch Date :
Launched
Launch Date :
Q3'16
Lithography :
14nm
Use Conditon :
PC/Client/Tablet
Description
General information
Type System-on-a-Chip
Market segment Mobile
Family
Intel Mobile Celeron (Apollo Lake)
Model number ? N3450
SoC part number
  • FH8066802979803 is an OEM/tray SoC
Frequency ? 1100 MHz
Maximum turbo frequency 2200 MHz (1 core)
2100 MHz (2 or more cores)
Low power frequency 800 MHz
Package 1296-ball Flip Chip Ball Grid Array (Type 3)
Socket BGA1296
Size 1.22" x 0.94" / 3.1cm x 2.4cm
Introduction date August 30, 2016
Price at introduction $107
S-spec numbers
Part number Production processors
SR2YA SR2Z6
FH8066802979803 + +
Architecture / Microarchitecture
Microarchitecture Goldmont
Processor core ? Apollo Lake
Core steppings ? B0 (SR2YA)
B1 (SR2Z6)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 4
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size ? 4 x 32 KB 8-way set associative instruction caches
4 x 24 KB 6-way set associative data caches
Level 2 cache size ? 2 x 1 MB 16-way set associative shared caches
Level 3 cache size None
Physical memory 8 GB
Multiprocessing Uniprocessor
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4 ?
  • AES / Advanced Encryption Standard instructions
  • SHA / Secure Hash Algorithm extensions
  • EM64T / Extended Memory 64 technology / Intel 64 ?
  • VT-x / Virtualization technology ?
  • VT-d / Virtualization for directed I/O
  • BPT / Burst Performance technology
Security Features
  • NX / XD / Execute disable bit ?
  • MPX / Memory Protection Extensions
  • SMAP / Supervisor Mode Access Prevention
  • SMEP / Secure Mode Execution Protection
Low power features
  • Core CC1 and CC6 states
  • Module MC0 and MC7 states
  • System S0ix, S3, S4 and S4 states
  • Enhanced SpeedStep technology ?
Integrated peripherals / components
Display controller
  • 3 displays
  • MIDI-DSI 1.1 / DP 1.2 / HDMI 1.4b / eDP 1.3
  • DP output supports up to 4096 x 2160 at 60 Hz
  • eDP and HDMI supports up to 3840x2160 at 30 Hz
Integrated graphics GPU Type: Intel HD 500
Microarchitecture: Gen 9 LP
Execution units: 12
Base frequency (MHz): 200
Maximum frequency (MHz): 700
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR3L-1333, DDR3L-1600, DDR3L-1866, LPDDR3-1333, LPDDR3-1600, LPDDR3-1866, LPDDR4-1600, LPDDR4-2133, LPDDR4-2400
Maximum memory bandwidth (GB/s): 38.4
Other peripherals
  • PCI Express 2.0 interface (6 lanes)
  • Image Signal Processor
  • HD Audio
  • eMMC and SD-Card interfaces
  • I2S interface
  • I2C controler
  • SPI interface
  • High-Speed UART
Supported interfaces
  • 6x USB 3.0 ports
  • 2x SATA 3 ports
Electrical / Thermal parameters
Maximum operating temperature ? 105°C
Thermal Design Power ? 6 Watt
