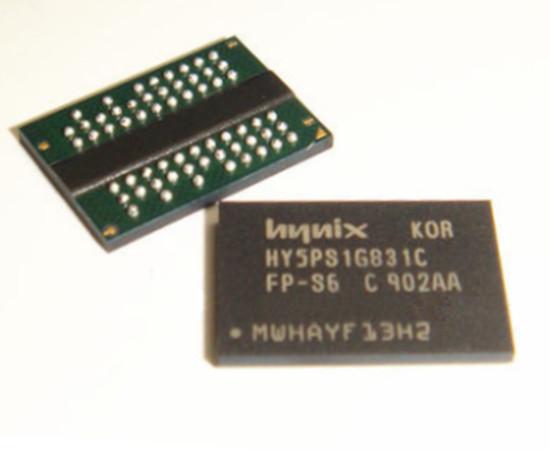

HY5PS1G831CFP-S6 DDR DRAM Mobile Flash Memory Chip 128MX8 0.4ns CMOS PBGA60
HY5PS1G831CFP-S6 DDR DRAM Mobile Flash Memory Chip 128MX8 0.4ns CMOS PBGA60
Specifications
Model Number :
HY5PS1G831CFP-S6
Certification :
Original Parts
MOQ :
1260PCS/BOX
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Supply Ability :
10k per month
Delivery Time :
3-5 work days
Packaging Details :
10cm X 10cm X 5cm
Item numbe :
HY5PS1G831CFP-S6
Denisty :
1G(128MX8)
Products Category :
Memory & Flash Memory
Clock Frequency :
400.0 MHz
Access Time-Max :
40NS
Technology :
DRAMs
Access Mode :
MULTI BANK PAGE BURST
Package :
FBGA60
Description

Flash Memory Chip HY5PS1G831CFP-S6 DDR DRAM, 128MX8, 0.4ns, CMOS, PBGA60

Features

  • VDD = 1.8 +/- 0.1V•VDDQ = 1.8 +/- 0.1V
  • All inputs and outputs are compatible with SSTL_18 interface
  • 8 banks
  • Fully differential clock inputs (CK, /CK) operation
  • Double data rate interface
  • Source synchronous-data transaction aligned to bidirectional data strobe (DQS, /DQS)
  • Differential Data Strobe (DQS, /DQS)
  • Data outputs on DQS, /DQS edges when read (edged DQ)
  • Data inputs on DQS centers when write(centered DQ)
  • On chip DLL align DQ, DQS and /DQS transition with CK transition
  • DM mask write data-in at the both rising and falling edges of the data strobe
  • All addresses and control inputs except data, data strobes and data masks latched on the rising edges of the clock
  • Programmable CAS latency 3, 4, 5 and 6 supported
  • Programmable additive latency 0, 1, 2, 3, 4 and 5 supported
  • Programmable burst length 4/8 with both nibble sequential and interleave mode
  • Internal eight bank operations with single pulsed RAS
  • Auto refresh and self refresh supported
  • tRAS lockout supported
  • 8K refresh cycles /64ms
  • JEDEC standard 60ball FBGA(x4/x8) , 84ball FBGA(x16)
  • Full strength driver option controlled by EMR
  • On Die Termination supported
  • Off Chip Driver Impedance Adjustment supported
  • Read Data Strobe supported (x8 only)
  • Self-Refresh High Temperature Entry

  • This product is in compliance with the directive pertaining of RoHS.
