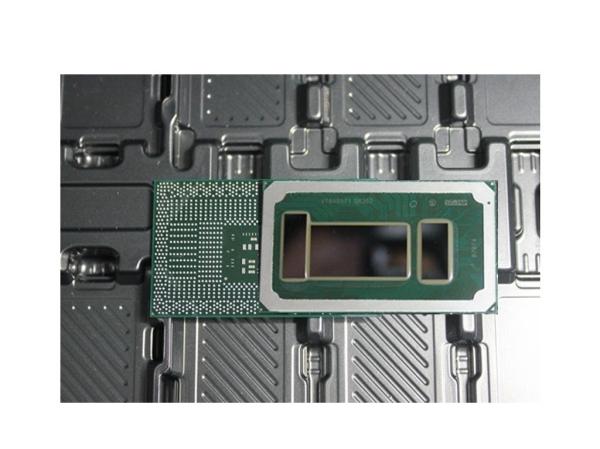

Core I5-7267U SR362 Intel I5 Laptop Cpu 3MB Cache Up To 3.5GHz In Mobile
Core I5-7267U SR362 Intel I5 Laptop Cpu 3MB Cache Up To 3.5GHz In Mobile
Specifications
Model Number :
I5-7267U SR362
Certification :
ORIGINAL PARTS
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Supply Ability :
1000pcs
Delivery Time :
3-5 work days
Packaging Details :
tray, 10cmX10cmX5cm
Processor Model :
I5-7267U
Product Collection :
7th Generation Core i5 Processors
Code Name :
Products formerly Kaby Lake
Vertical Segment :
Mobile
Status :
Launched
Launch Date :
Q1'17
Lithography :
14nm
Use Conditon :
Notebook
Description

Core I5-7267U SR362 Laptop CPU Procesors , I5 Series (3MB Cache , up to 3.5GHz ) - Notebook Processor


The Core i5-7267U is a fast dual-core SoC for notebooks based on the Kaby Lake architecture and was announced in January 2017. The CPU has two processor cores clocked at 3.1-3.5 GHz (two cores also up to 3.5 GHz). The processor can execute up to four threads simultaneously thanks to Hyper Threading. It is also equipped with an Intel Iris Plus Graphics 650 GPU with 64 MB eDRAM, a dual-channel memory controller (DDR4) as well as VP9 and H.265 video decoding as well as encoding. The chip is still manufactured in a 14nm process with FinFET transistors.

Processor number i5-7267U

Processor number i5-7267U
Family Core i5 Mobile
Technology (micron) 0.014
Processor speed (GHz) 3.1
L2 cache size (KB) 512
L3 cache size (MB) 4
The number of cores 2
EM64T Supported
HyperThreading technology Supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported

General Information:

General information
Type CPU / Microprocessor
Market segment Mobile
Family
Intel Core i5 Mobile
Model number
i5-7267U
Frequency 3100 MHz
Maximum turbo frequency 3500 MHz (1 or 2 cores)
Clock multiplier 31
Package 1356-ball BGA
Socket BGA1356
Size 1.65" x 0.94" / 4.2cm x 2.4cm
Introduction date January 3, 2017


Architecture Microarchiteture:

Microarchitecture Kaby Lake
Processor core Kaby Lake-U
Core stepping J1 (SR362)
Manufacturing process 0.014 micron
Data width 64 bit
The number of CPU cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 4-way set associative caches
Level 3 cache size 4 MB 16-way set associative shared cache
Level 4 cache size 64 MB
Physical memory 32 GB
Multiprocessing Not supported
Extensions and Technologies
  • MMX instructions
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSSE3 / Supplemental Streaming SIMD Extensions 3
  • SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
  • AES / Advanced Encryption Standard instructions
  • AVX / Advanced Vector Extensions
  • AVX2 / Advanced Vector Extensions 2.0
  • BMI / BMI1 + BMI2 / Bit Manipulation instructions
  • F16C / 16-bit Floating-Point conversion instructions
  • FMA3 / 3-operand Fused Multiply-Add instructions
  • EM64T / Extended Memory 64 technology / Intel 64
  • NX / XD / Execute disable bit
  • HT / Hyper-Threading technology
  • VT-x / Virtualization technology
  • VT-d / Virtualization for directed I/O
  • TBT 2.0 / Turbo Boost technology 2.0
  • MPX / Memory Protection Extensions
  • SGX / Software Guard Extensions
Low power features Enhanced SpeedStep technology


Integrated peripherals / components:

Display controller 3 displays
Integrated graphics GPU Type: Intel Iris Plus 650
Microarchitecture: Gen 9 LP
Base frequency (MHz): 300
Maximum frequency (MHz): 1050
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1600, LPDDR3-1866, DDR4-2133
Maximum memory bandwidth (GB/s): 34.1
Other peripherals PCI Express 3.0 interface (12 lanes)


Electrical / Thermal parameters:

Maximum operating temperature 100°C
Thermal Design Power 28 Watt
