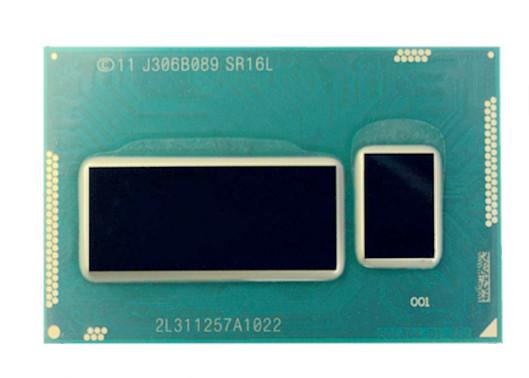

I5-4350U SR16L Intel Mobile Processors For Gaming 3MB Cache Up To 2.9GHz
I5-4350U SR16L Intel Mobile Processors For Gaming 3MB Cache Up To 2.9GHz
Specifications
Model Number :
i5-4350U SR16L
Certification :
ORIGINAL PARTS
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Supply Ability :
500pcs
Delivery Time :
3-5 work days
Packaging Details :
tray, 10cmX10cmX5cm
Processor No. :
I5-4350U
Product Collection :
5th Generation Core i5 Processors
Code Name :
Products formerly Haswell
Vertical Segment :
Mobile
Status :
Launched
Launch Date :
Q3'13
Lithography :
22nm
Use Conditon :
Nootbook/Laptop
Description

CPU Processor Chip I5-4350U SR16L ,Core I5 Series (3MB Cache,up to 2.9GHz ) -Notebook CPU

The Core i5-4350U is an ULV (ultra low voltage) dual-core processor for ultrabooks launched in Q2 2013. It is based on the Haswell architecture and is manufactured in 22nm. Due to Hyper-Threading, the two cores can handle up to four threads in parallel, leading to better utilization of the CPU. Each core offers a base speed of 1.4 GHz, but can dynamically increase clock rates with Turbo Boost up to 2.9 GHz for 1 active core or 2.6 GHz for 2 active cores.

Processor number i5-4350U

Processor number i5-4350U
Family Core i5 Mobile
Technology (micron) 0.014
Processor speed (GHz) 1.4
L2 cache size (KB) 512
L3 cache size (MB) 3
The number of cores 2
EM64T Supported
HyperThreading technology Supported
Virtualization technology Supported
Enhanced SpeedStep technology Supported
Execute-Disable bit feature Supported

General Information:

Type CPU / Microprocessor
Market segment Mobile
Family Intel Core i5 Mobile
Model number i5-4350U
CPU part number · CL8064701463001 is an OEM/tray microprocessor
Frequency 1400 MHz
Maximum turbo frequency 2900 MHz (1 core)
2600 MHz (2 cores)
Bus speed 5 GT/s DMI
Clock multiplier 14
Package 1168-ball micro-FCBGA package (FCBGA1168)
Socket BGA1168
Size 1.57" x 0.94" / 4cm x 2.4cm
Introduction date June 2, 2013 (launch)
June 4, 2013 (announcement)


Architecture Microarchiteture:

Microarchitecture Haswell
Platform Shark Bay
Processor core Haswell
Core stepping C0 (SR16L)
Manufacturing process 0.022 micron
Data width 64 bit
The number of CPU cores 2
The number of threads 4
Floating Point Unit Integrated
Level 1 cache size 2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches
Level 2 cache size 2 x 256 KB 8-way set associative caches
Level 3 cache size 3 MB 12-way set associative shared cache
Physical memory 16 GB
Multiprocessing Uniprocessor
Extensions and Technologies

· MMX instructions

· SSE / Streaming SIMD Extensions

· SSE2 / Streaming SIMD Extensions 2

· SSE3 / Streaming SIMD Extensions 3

· SSSE3 / Supplemental Streaming SIMD Extensions 3

· SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4

· AES / Advanced Encryption Standard instructions

· AVX / Advanced Vector Extensions

· AVX2 / Advanced Vector Extensions 2.0

· BMI / BMI1 + BMI2 / Bit Manipulation instructions

· F16C / 16-bit Floating-Point conversion instructions

· FMA3 / 3-operand Fused Multiply-Add instructions

· EM64T / Extended Memory 64 technology / Intel 64

· NX / XD / Execute disable bit

· HT / Hyper-Threading technology

· TBT 2.0 / Turbo Boost technology 2.0

· VT-x / Virtualization technology

· VT-d / Virtualization for directed I/O

· TXT / Trusted Execution technology

· TSX / Transactional Synchronization Extensions
Low power features Enhanced SpeedStep technology


Integrated peripherals / components:

Integrated graphics GPU Type: HD 5000
Graphics tier: GT3
Microarchitecture: Gen 7.5
Execution units: 40
Base frequency (MHz): 200
Maximum frequency (MHz): 1100
The number of supported displays: 3
Memory controller The number of controllers: 1
Memory channels: 2
Supported memory: DDR3-1600, DDR3L-1600, LPDDR3-1600
Maximum memory bandwidth (GB/s): 25.6
Other peripherals

· Direct Media Interface 2.0

· PCI Express 2.0 interface

Electrical / Thermal parameters:

Maximum operating temperature 100°C
Thermal Design Power 15Watt
