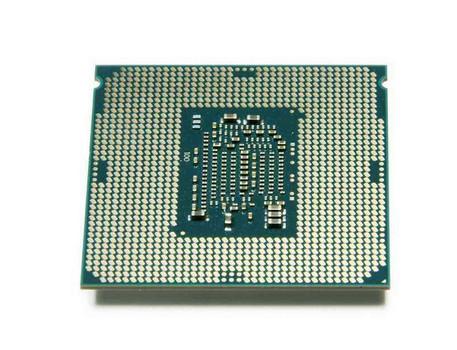

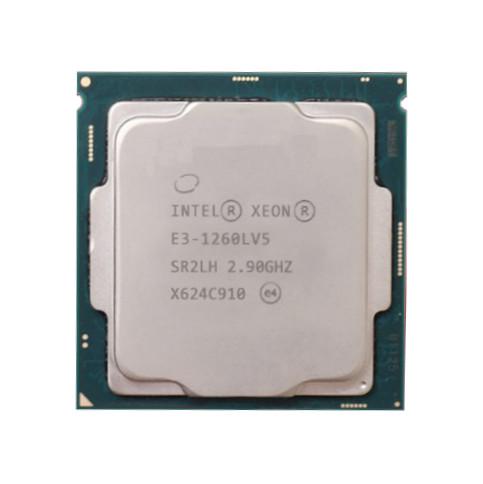

E3-1260LV5 SR2LH Pquad Core Server Processor 2.9GHz 8MB 45W Desktop Socket LGA-1151
E3-1260LV5 SR2LH Pquad Core Server Processor 2.9GHz 8MB 45W Desktop Socket LGA-1151
E3-1260LV5 SR2LH Pquad Core Server Processor 2.9GHz 8MB 45W Desktop Socket LGA-1151
E3-1260LV5 SR2LH Pquad Core Server Processor 2.9GHz 8MB 45W Desktop Socket LGA-1151
Specifications
Model Number :
E3-1260LV5 SR2LH
Certification :
Original Parts
MOQ :
1 piece
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Supply Ability :
500-2000pcs per month
Packaging Details :
10cm X 10cm X 5cm
Delivery Time :
3-5 work days
Processor number :
E3-1260LV5
Products Collection :
Intel Xeon Processor E3 v5 Family
Code Name :
Formerly Kaby Lake
Vertical Segment :
SERVER
Status :
Launched
Socket Type :
LGA-1151
Lithograph :
14nm
Use Condition :
Desktop /Server
Description

Server CPU Xeon Serie E3-1260LV5 SR2LH Processor 2.9GHz,8MB 45W Quad-core PC Computer Desktop Socket LGA-1151 Processor

Performance Parameters:

Number of Cores: 4

Number of Threads: 8

Processor Base Frequency: 2.9 GHz

Max Turbo Frequency: 3.90 GHz

Cache: 8MB Smart Cache

Bus Speed: 8 GT/s DMI3

Thermal Design Power: 45W

VID Voltage Range: 0.55V-1.52V

Embedded Options Available: NO

Memory Specifications:

Max Memory Size (dependent on memory type): 64 GB

Memory Types: DDR4-1866/2133, DDR3L-1333/1600 @ 1.35V

Max # of Memory Channels: 2

Max Memory Bandwidth: 34.1 GB/s

ECC Memory Supported: Yes

Graphics Parameters:

Graphics Output:N/A

4K Support:No

Max Resolution (HDMI 1.4):N/A

Max Resolution (DP):N/A

Max Resolution (eDP - Integrated Flat Panel):N/A

Max Resolution (VGA):N/A

DirectX* Support:N/A

Open GL* Support:N/A

Intel Quick Sync Video:No

Intel InTru™ 3D Technology:No

Intel Clear Video HD Technology:No

Intel Clear Video Technology:No

Number of Displays Supported:0

Expansion Options:

Scalability: 1S Only

PCI Express Revision: 3.0

PCI Express Configurations: 1x16, 2x8, 1x8+2x4

Max # of PCI Express Lanes: 16

Package Specifications:

Sockets SupportedFCLGA1151

Max CPU Configuration1

Package Size37.5mm x 37.5mm

Low Halogen Options Available See MDDS

Technologies Parameters:

Intel Turbo Boost Technology: 2.0

Intel vPro™ Platform Eligibility: Yes

Intel Hyper-Threading Technology: Yes

Intel Virtualization Technology (VT-x): Yes

Intel Virtualization Technology for Directed I/O (VT-d): Yes

Intel VT-x with Extended Page Tables (EPT): Yes

Intel TSX-NI: Yes

Intel 64: Yes

Instruction Set: 64-bit

Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2

Idle States: Yes

Enhanced Intel SpeedStep Technology: Yes

Thermal Monitoring Technologies: Yes

Security & Reliability:

Intel AES New Instructions: Yes

Secure Key: Yes

Intel Software Guard Extensions (Intel SGX):Yes

Intel Memory Protection Extensions (Intel MPX): Yes

Intel OS Guard: Yes

Intel Trusted Execution Technology: Yes

Execute Disable Bit : Yes

Intel Boot Guard: Yes
