Openable API Adaptor
Openable API Adaptor
Openable API Adaptor
Openable API Adaptor
Specifications
Brand Name :
COWELL
Model Number :
HYF-01, HYF-02
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
7-15 working days
Packaging Details :
Hard Carton
Product :
API Adaptor
Size :
4"
Material :
Aluminum Alloy
Application :
Diesel, Gasoline, Kersene
Description

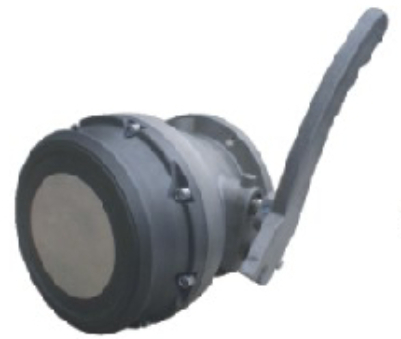

Openable API Adaptor



Description


HYF series API Adaptor is installed on one side of the tanker bottom for quick unloading. When loading the fuel, it connects with API adaptor coupler tightly,

When unloading the fuel, two-stage fixed handle control the flow rate and side pull effectively.



Characteristics


  • Aluminum alloy die-cast sturcture, anodized treatment

  • Hydrodynamic design minimizes the pressure drop for high flow rate.

  • Light weight, die cast aluminum construction for increased payloads with strength.

  • Two-stage fixed aluminum handle positively indicates valve position.

  • Stainless steel operation shaft, cam & poppet stem for durability.

  • The sight glass can be check easily by operator

  • Top mounting for puneumatic interlock valve
  • According to API 1004 and EN13083 standard, flange meets the TTMA standard.



Material


Body: Aluminum alloy

Shaft: Stainless Steel

Spring: Stainless Steel

Bushing: Copper

Seal: NBR

Handle: Aluminum



Technical Specification

Model

HYF-01

HYF-02

Size

4"

Working pressure

 0.6 Mpa

Max. flow rate

2500L/Min

Air pressure required

0.4-0.8 Mpa

Temperature range

-20~70℃

Connection mode

Flange

Operating mode

Mechanical Fork

Mechanical Rack

Medium

Diesel, Gasoline, Kersene
