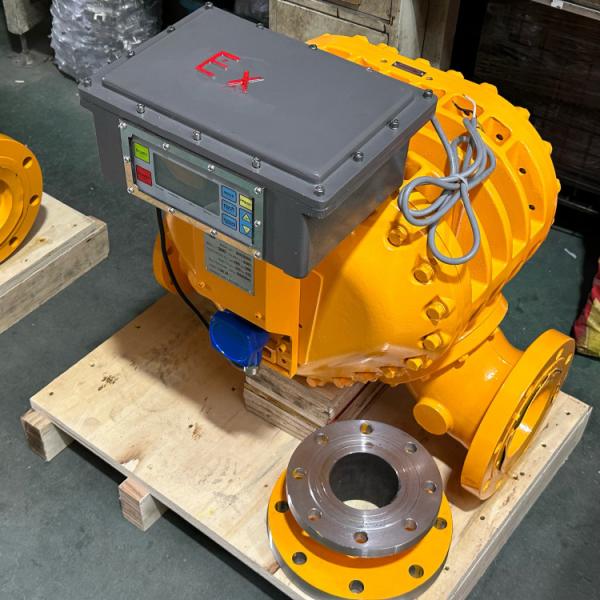

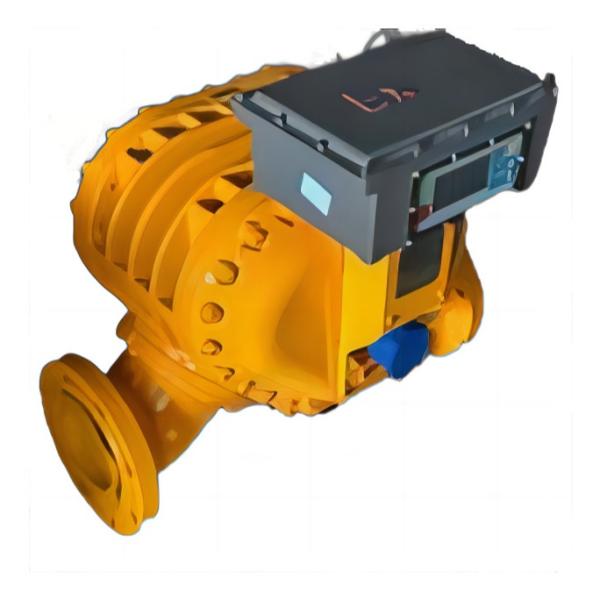

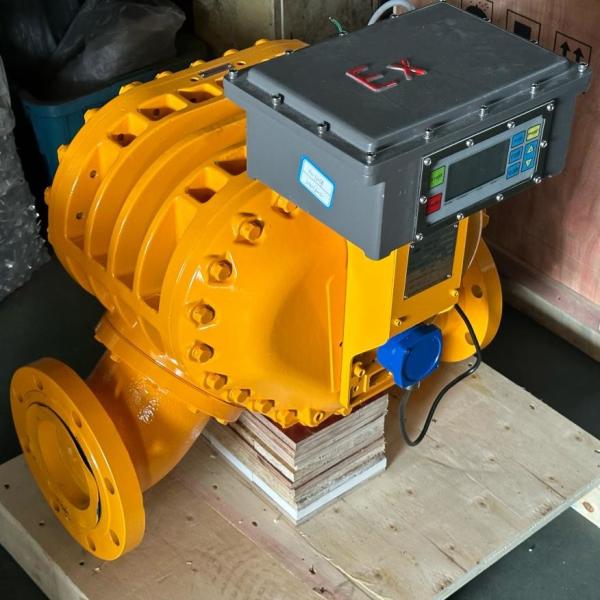

M-150-KPX-1 Electronic PD Flow Meter
M-150-KPX-1 Electronic PD Flow Meter
M-150-KPX-1 Electronic PD Flow Meter
M-150-KPX-1 Electronic PD Flow Meter
M-150-KPX-1 Electronic PD Flow Meter
M-150-KPX-1 Electronic PD Flow Meter
Specifications
Place of Origin :
Shanghai, China
Brand Name :
COWELL
Model Number :
M-150-KPX-1
Certification :
CE
Delivery Time :
15 Working days
Packaging Details :
Wooden case applicable for export
MOQ :
1
Payment Terms :
T/T
Warranty :
2 Years
Diameter :
150mm/6''
Flow Rate :
225-2250L/Min Or 300-3000L/Min
Accurate :
±0.1%
Pressure :
25Bar/350PSI
Volume/Rev :
9.507L
Viscosity :
30SSU-1,500,000SSU
Voltage :
220VAC or 24VDC
Material :
Aluminum
Description

M-150-KPX-1 Positive Displacement Flow Meter with Electronic Register



Characteristics


  • Excellent stepless adjusting mechanism allows a micro adjustment of the meter
  • High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow
  • Low maintenance, no metal-to-metal contact in measuring chamber, long life service
  • Low pressure loss, a true gravity flow meter
  • Accuracy regardless of pressure fluctuations, temperature variation, viscosity
  • Choice of aluminum, cast iron and stainless steel materials of construction



Technical Data


Model

M-40-KPX-1

M-50-KPX-1

M-50H-KPX-1

M-80-KPX-1

M-80H-KPX-1

M-100-KPX-1

M-100H-KPX-1

M-150-KPX-1

M-150H-KPX-1

Size

40mm /1.5"

50mm / 2 "

80mm / 3 "

100mm / 4 "

150mm / 6 "

Flow Range
(L/Min)

25-250

38-380

55-550

75-750

115-1150

130-1300

170-1700

225-2250

300-3000

Volume/Rev.

0.309L

0.681L

1.839L

5.102L

9.507L

Max.Pressure

10Bar/150PSI

25Bar/350PSI

Accuracy

±0.2%

Repeatability

≤0.05%

Standard Measurement

Liter / US Gallon/IMP Gallon

Viscosity

30SSU~1,500,000SSU

Note:4"&6" flange available for M-150/6" Meter.




Constructure


M-150-KPX-1 Electronic PD Flow Meter



M-150-KPX-1 Electronic PD Flow Meter


M-150-KPX-1 Electronic PD Flow Meter

M-150-KPX-1 Electronic PD Flow Meter



M-150-KPX-1 Electronic PD Flow Meter
