KIH Series Chemical Centrifugal Pump
KIH Series Chemical Centrifugal Pump
KIH Series Chemical Centrifugal Pump
KIH Series Chemical Centrifugal Pump
Specifications
Model Number :
KIH Series
Place of Origin :
China
Brand Name :
COWELL
Certification :
MFG. License
Payment Terms :
T/T
Delivery Time :
3-15 Working days
Packaging Details :
Wooden case applicable for export
MOQ :
1
Diameter :
25-250mm
Flow Capacity :
3.6~600m3/h
Head :
36-132m
Medium :
Chemical liquids
Material :
Stainless Steel
Description

KIH Series Chemical Centrifugal Pump


Description


KIH is a kind of chemical centrifugal pump. It has a reinforcement in pump body and suspended frame, making it better in appearance, safe and reliable operation and also has a longer life. The suspension cross products have an outstanding design for heat sink and increase the cooling devices, which ensures to meet the different and complicated requirements of industrial and mining project, and also accelerate the delivery and inventory. The impeller of pump body is precise casting and has closed type, semi-open type and open type with high efficiency. The material of liquid contact parts is stainless steel 304. SS316L, CD-4MCu, 904, 904L and hastelloy material for option.



Scope of Parameter


Flow Capacity: 3.4~600m3/h
Head: 3.6-132m
Speed: 2900r/min, 1450r/min
Power of motor:0.55~160kw
Inlet & Outlet:25~250mm
Density: P=1.0~1.84Χ103kg/m3
Temperature: -40~180℃
Working pressure: less than 1.6MPa

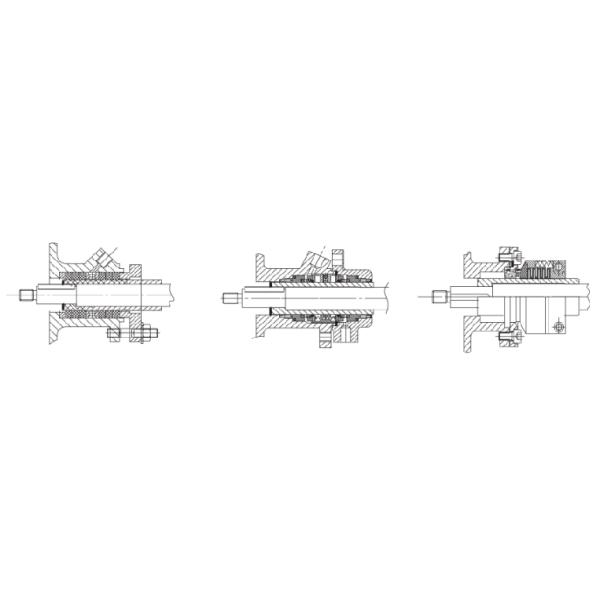

Structure



KIH Series Chemical Centrifugal Pump

KIH Series Chemical Centrifugal Pump


No. 1 2 3 4 5 6
Parts Pump Case Impeller Impeller Nut Pump Shaft Shaft Bushing Pump Cover
Material Stainless Steel Stainless Steel Stainless Steel 3Cr13 or SS Stainless Steel Stainless Steel
No. 7 8 9 10 11 12
Parts Mechanical Seal Seal Gland Frame Bearing Cover Bearing Support foot
Material
Stainless Steel HT200 HT200 Stainless Steel Q235A



Application


KIH Series Chemical Centrifugal Pump is mainly used in chemical, petroleum, petrochemical industries, metallurgy, light industry, printing, dying, pharmaceutical, environmental protection, sea Water desalination, maritime oil, papermaking, foodstuff etc. Used for organic or inorganic chemical medium, oil products and corrosive liquid which doesn’t contain sold particles.




Product tags

centrifugal chemical pump

,

chemical centrifugal pump

,

centrifugal pump for chemical
