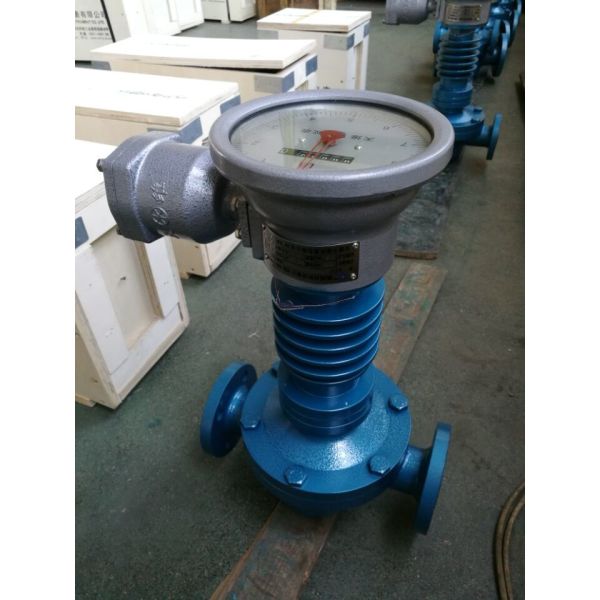

OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
OGM-HT Series High Temperature Oval Gear Meter
Specifications
Place of Origin :
Shanghai, China
Brand Name :
COWELL/OEM
Model Number :
OGM-HT Series
Packaging Details :
Wooden case applicable for export
Certification :
MFG. License
Payment Terms :
T/T
Delivery Time :
3-15 Working days
MOQ :
1
Diameter :
15mm-200mm; 1/2"-8"
Type :
Oval Gear
Pressure :
1.0-6.3Mpa
Accuracy :
±0.3-0.5%
Temperature :
200 0C
Material :
Cast Iron, Carbon Steel, Stainless Steel
Description

OGM-HT Series High Temperature Oval Gear Meter with Pulser



Description


OGM Series light oval gear flow meter, with innovative design and rational structure can be widely used in petroleum, chemical, pharmaceutical and public health sectors etc..Cast Iron, Cast Steel, Stainless Steel material available.



Characteristics

  • High accuracy, wide range of the flow, excellent repeatability.
  • Spiral rotor rotating evenly, small vibration and longevity.
  • Suitable for high viscosity of the liquid measurement
  • Simple structure, small size and light weight
  • Easy to install
  • Reset to "0"



Technical Specification

ModeOGM-HT15OGM-HT20OGM-HT25OGM-HT40OGM-HT50OGM-HT80OGM-HT100OGM-HT150
DN (mm)152025405080100150
Min. Flow Rate m3/h0.30.30.61.6561038
Max. Flow Rate m3/h1.63616255080190
Accuracy %+-0.3～+-0.5
Working Temperature oC-10～80
Pressure Mpa1.0-6.3
Liquid Viscosity MPa.s2～75
Min. Scale Value L0.1110
Register Amount m3999.999999.999999
