1. Product Overview |

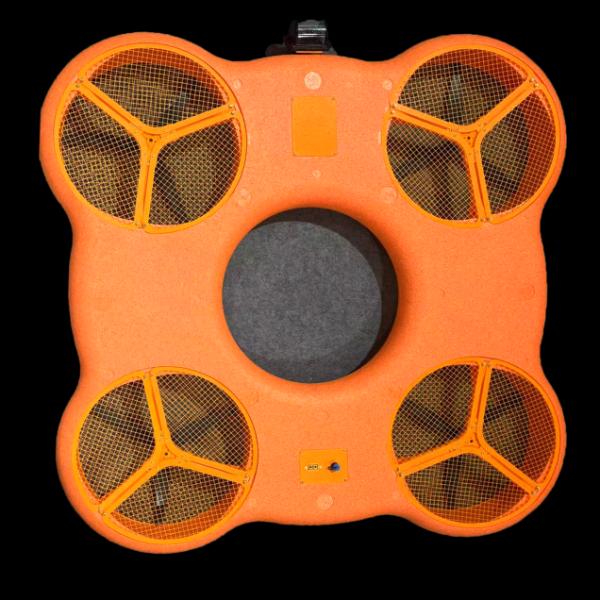

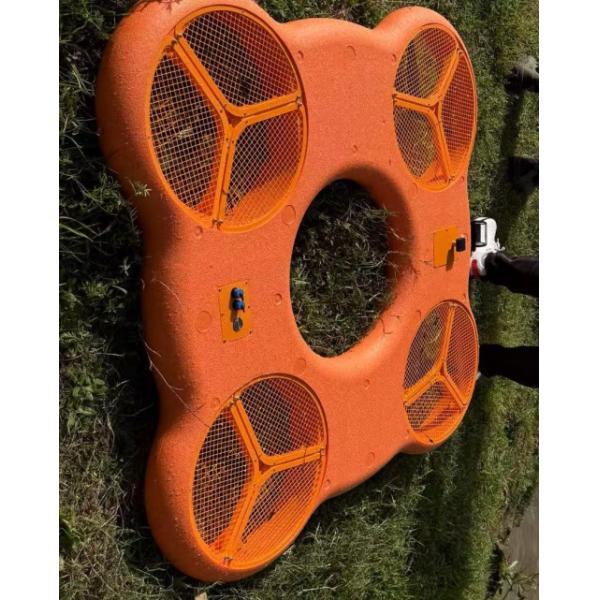

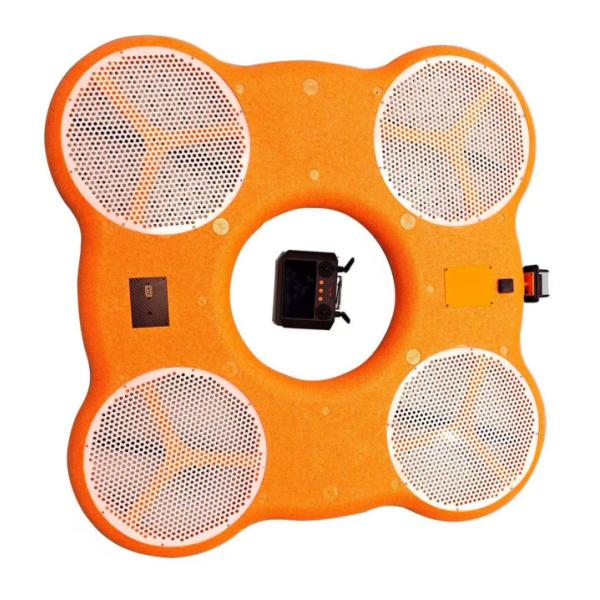

The flying lifebuoy is an emergency rescue device with special functions. It combines the characteristics of a drone and a lifebuoy. It is designed to quickly and effectively airdrop a lifebuoy to people in dangerous water environments, thereby ensuring people's life safety to the greatest extent. |
2. Scope of Application |
1. Marine Rescue: When a vessel is involved in an accident or shipwreck, a flying lifeboat can quickly reach the scene and rescue those in the water. 2. Flood Rescue: In flooded areas, a flying lifeboat can traverse flooded areas and rescue trapped people. |
3. Product Features |
1. High Maneuverability: It can quickly take off and reach the rescue site in complex terrain and adverse weather conditions, unaffected by the water conditions of traditional water rescue vehicles. For example, in strong winds and waves, boat-type equipment cannot reach the rescue site quickly. 2. Versatility: It can float on the water and carry people like a traditional lifebuoy, up to four people, while maintaining a stable afloat, maximizing the time it takes to await rescue. 3. Rapid Response: It can be quickly deployed in emergencies, shortening rescue time and increasing the chance of survival. |
4. Main specification |
1. The outer shell is made of high-strength EPP buoyant material in an integrated molding process, eliminating the need for gluing or ultrasonic secondary bonding. It can accommodate four adults and float normally on water. 2. The propellers are equipped with upper and lower mesh guards to prevent secondary damage and are replaceable. 3. A 420mm inner diameter ferrule is provided for easy passage by the rescued person. 4. Camera: 2K camera, 720p resolution, gimbal pitch range: +90° to -90°. 5. Dimensions: 1200mm*1200mm*120mm; Weight: 9kg. 6. Operating range: 1500m. 7. Operating time: ① Full-flight flight time: 15 minutes. 8. Maximum flight speed ≥ 20m/s; Maximum flight altitude 300m; Flight angle: ±30°. 9. Hovering accuracy: 1m; Communication range: 1500m (surface); Buoyancy in water: 200kg. 10. Storage environment: -30°C to 65°C; Wind resistance: Wind resistance level 6. 11. Housing protection rating: IP68. 12. Flight capabilities: One-touch takeoff, one-touch return, Autonomous return home, hovering, and takeoff from wave-prone waters. 13. High and Low Temperature Resistance: The system can withstand temperatures of -30°C for 2 hours and remain operational, and can withstand temperatures of 65°C for 2 hours and remain operational. Salt Spray Resistance: The device remains operational after 48 hours of salt spray corrosion without damage. 14. Drop Resistance: The aircraft remains operational after being dropped from a height of 1m above the water surface (control, communications, alarms, safety systems, buoyancy, structural integrity, and sealing). |
