Asr Airport Surveillance Radar Phased Array System
Asr Airport Surveillance Radar Phased Array System
Specifications
Brand Name :
TOPSKY
Model Number :
YSR
Place of Origin :
China
MOQ :
1set
Price :
USD44000/set
Payment Terms :
T/T
Supply Ability :
10sets/month
Delivery Time :
30days
Packaging Details :
carton box
technology :
radar
detect distance :
more than 2.5km
vehicle distance :
more than 5km
frequency :
C band
weight :
50kgs
size :
55*55*110cm
Description

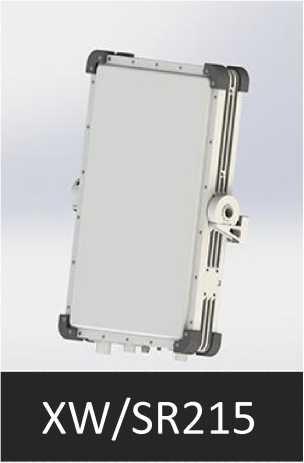

XW/SR215 Security Surveillance Radar

1.Product function and use

The XW/SR215 radar is mainly composed of 4 radar arrays and 1 power distribution control box. It is used for the detection, alert and target indication of pedestrians, vehicles or ships in key areas such as borders, airports, and military bases. It can accurately give Track information such as the target's position, distance and speed.

2.Main specifications

ITEM Performance parameters
Work system Phased array system (azimuth phase scan)
Operating mode Pulse Doppler
Working frequency C band (5 working frequency points)

Maximum detection distance

≥2.5km(pedestrian)

≥5.0km(vehicle/ship)
Minimum detection distance ≤ 100m
Azimuth coverage 360°
Elevation coverage 9°
Detection speed 0.5m/s～30m/s
Distance accuracy ≤ 10m
Bearing accuracy ≤ 1.0°
Speed accuracy ≤ 0.2m/s(Radial velocity)
Data rate ≥ 1 times/s
Data interface RJ45 / 1 100M Ethernet (UDP protocol)

Power and power consumption

Power consumption:≤ 160W

Operating Voltage:AC200V～240V

working environment

Operating temperature:-40℃～55℃；Storage temperature:-45℃～65℃；With measures to prevent rain, dust and sand and moisture-proof, salt-fog and mildew-proof
Outside size 550mm×550mm×1100mm
Weight ≤ 50kg

Note:

Detection distance conditions: activities with a radial velocity of not less than 0.5m/s, false alarm probability 10-6, detection probability 0.8.
