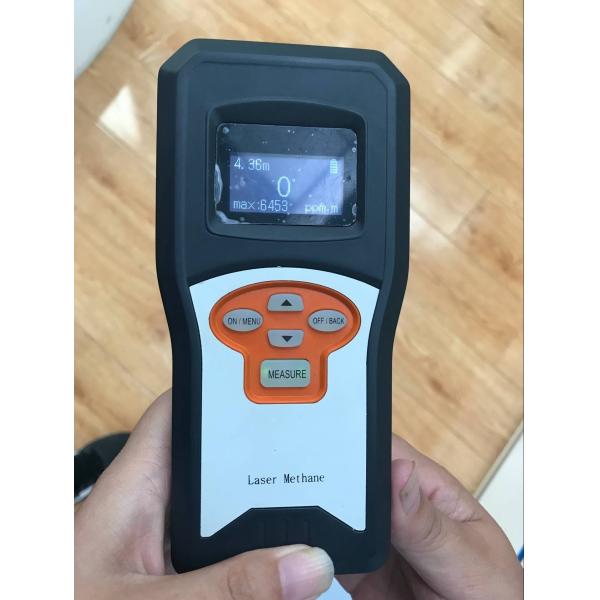

CE Passed 60m Handheld Methane Analyser
CE Passed 60m Handheld Methane Analyser
CE Passed 60m Handheld Methane Analyser
CE Passed 60m Handheld Methane Analyser
Specifications
Brand Name :
TOPSKY
Model Number :
JJB30-3
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD8000-USD10000
Payment Terms :
T/T
Supply Ability :
200sets/month
Delivery Time :
30days
Packaging Details :
Aluminium case
Name :
60m Test Distance 0-99999ppm M Measure Range Hand-Held Laser Methane Gas Detectors Remote CH4 Gas Leak Detection
weight :
About 360g
EX :
Ex ib II C T4
gas type :
methane
Detection range :
60m
Description

60m Test Distance 0-99999ppm M Measure Range Hand-Held Laser Methane Gas Detectors Remote CH4 Gas Leak Detection

Overview

Hand-held laser remote methane gas leak detector is a high-tech advanced technology that detects methane leaking from long distances.It is a new generation of leak detection products, which greatly improves the efficiency and safety of walking inspection, the instrument available, widely recognized worldwide.

CE Passed 60m Handheld Methane Analyser

CE Passed 60m Handheld Methane Analyser

Features:

1.Intrinsically safe products;

2. The gas (methane) is selective, free from other gases, water vapor, dust interference;

3. Detection distance: detection of methane and methane-containing gas leakage at a distance of 60 meters;

4. Small size, light weight, easy to carry;

5. Low power consumption, can work for a long time;

7. Superior shockproof, waterproof and dustproof performance;

8. Fast response, large measuring range and high measuring accuracy;

9. It can realize data recording and Bluetooth transmission function.

10.Detection method :harmonic laser spectrum theory

11.Detection of gas :CH4 (NH3 / HCL / C2H6 / C3H8 / C4-C6 optional)

12.Sensor type :infrared laser

13.Self-test function comes with self-test and calibration functions, without the need for daily calibration.


Technical Parametere

2.1 Basic parameters Concentration measurement range (0～99,999)ppm·m
Sensitivity detection distance

0-30m, 5ppm-m

30-60m, 10ppm-m%
Response time ≤0.1s
effective distance 0～60m
Distance measurement range① ---
Concentration display resolution 1ppm·m
Distance meter m

Measurement accuracy:

 ± 10% @ 100 ppm-m (2m)
Display method LCD
2.2 Dimensions and weight Host size 132mm × 74mm × 36.5mm
Host weight About 360g
Housing material ABS + PC
outer covering protection rate IP65
2.3 Explosion-proof form Intrinsically safe Ex ib II C T4
2.4 Laser protection class Laser protection class

Class IIIR
2.5 Applicable environment Operating temperature -20～50℃
