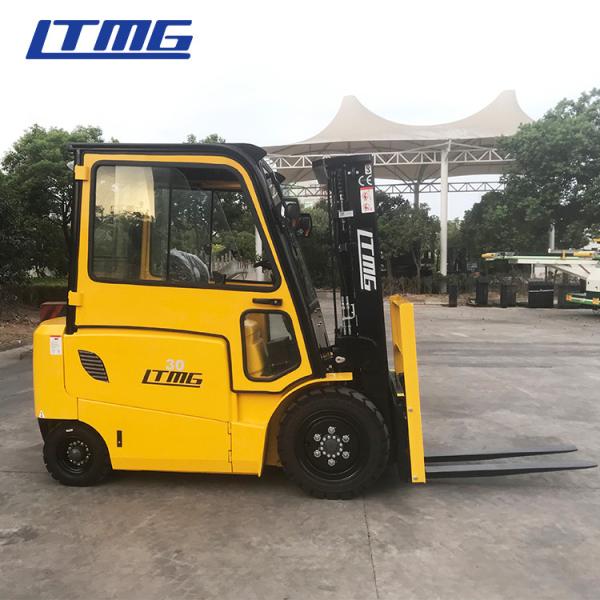

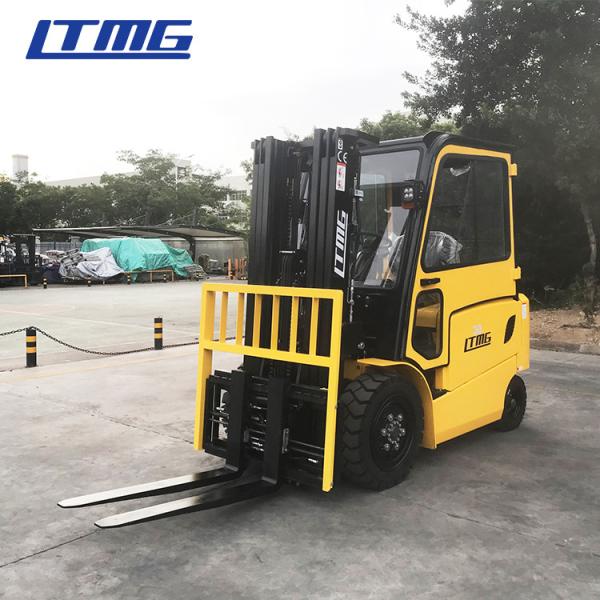

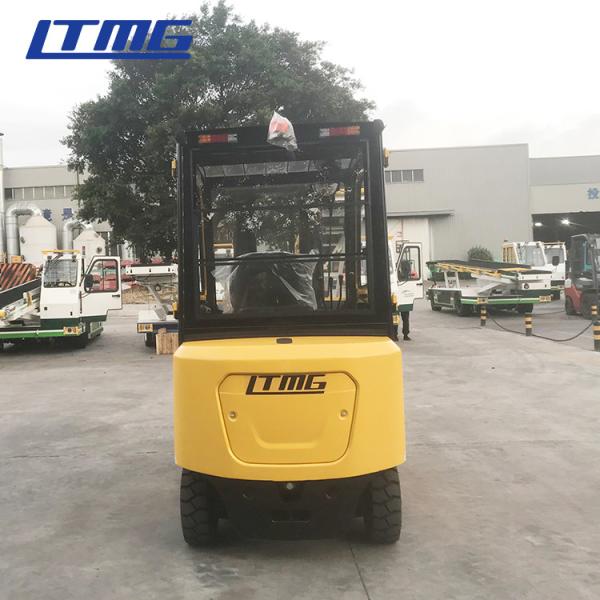

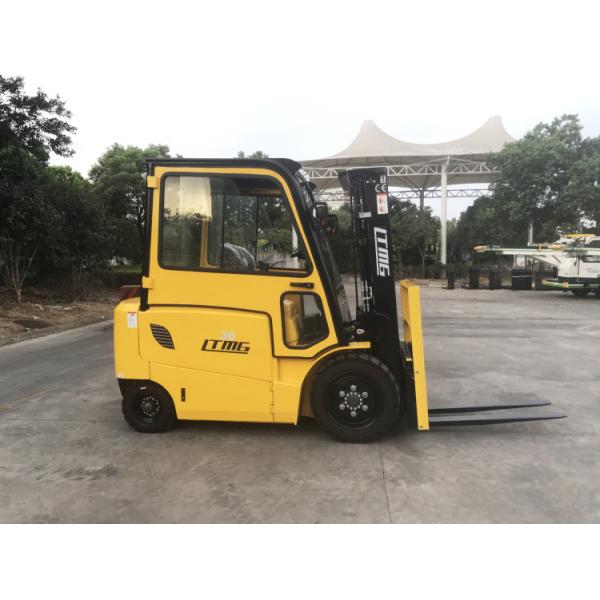

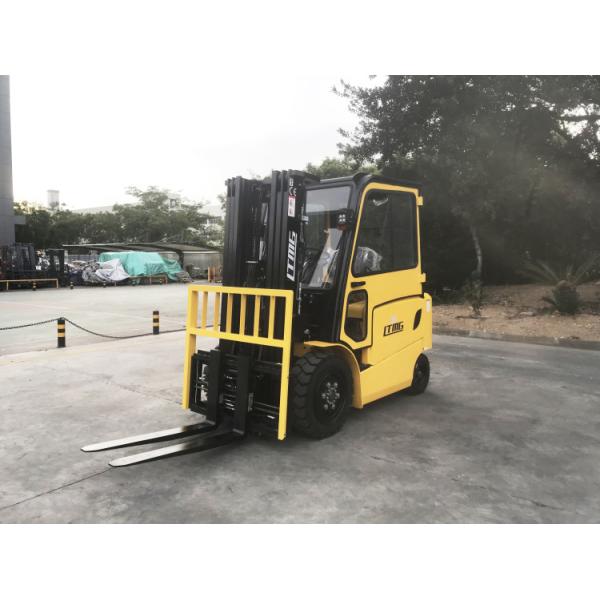

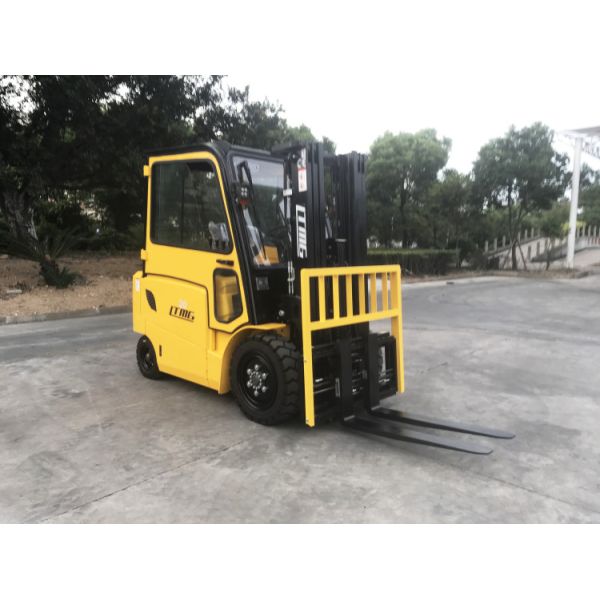

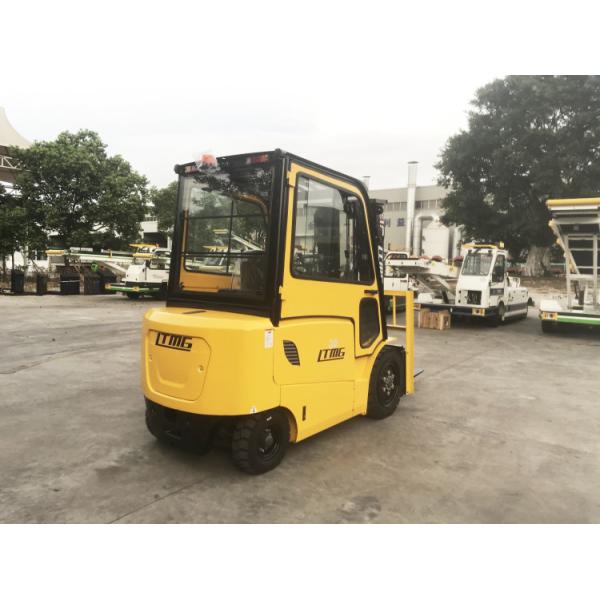

LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
Specifications
Brand Name :
LTMG
Model Number :
FB30
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1set
Price :
16800 USD/Set
Payment Terms :
T/T, D/A, L/C,
Supply Ability :
800 set/year
Delivery Time :
45days
Packaging Details :
none
Condition :
New
Type :
Electric forklift truck
Color :
Yellow
Warranty :
1 Year,One Year
Loading capacity :
1000-3000 kg
Power souce :
AC Motor,DC Motor
Lifting height :
4500 mm
Description

LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic ControlLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic ControlLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic ControlLTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control

General 1 Model FB30
2 Rated Capacity kg 3000
3 Load Centre mm 500
4 Lift Height mm 3000
5 Fork Size (L×W×T) mm 1070×125×45
6 Mast Tilt Angle F/R (α°/β°) Deg 6/12
Characteristic&Dimensions 7 Length to fork face of fork (Without fork) mm 2610
8 Overall Width mm 1230
9 Mast Lowered Height mm 2110
10 Mast Extended Height (With backrest) mm 4180
11 Overhead Guard Height mm 2250
12 Turning Radius (outside) mm 2350
13 Front Overhang (Wheel center to fork face) mm 480
14 Tread (Front/Rear) mm 1000/980
15 Ground Clearance (Bottom of mast) mm 140
16 Wheelbase mm 1700
17 Fork Spread (Min./Max) mm 250/1100
Performance 18 Travel Speed km/h 14
19 Lifting Speed (Full load) mm/s 300
20 Max. Gradeability % 15
21 Service Weight kg 5100
22 Front Tire×2 28×9-15-12PR
23 Rear Tire×2 18×7-8-14PR
Driven 24 Driven Motor kw 15
25 Lift Motor kw 12
26 Battery Standard V/Ah 80/500
27 Controller Manufacturer CURTIS AC
28 Operating Pressure for Attachment Mpa 18

LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control

LTMG electric forklift 3ton 2.5ton 2ton 1ton cabin yellow battery forklift Curtis Electronic Control
