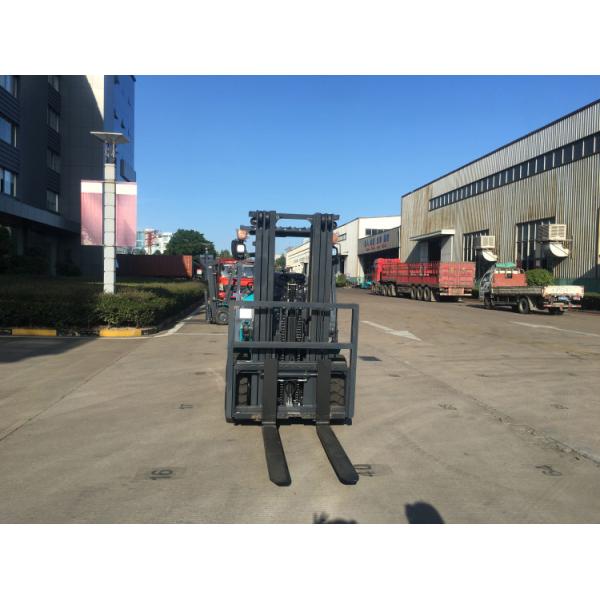

1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift
1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift
1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift
1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift
Specifications
Brand Name :
LTMG
Model Number :
FG15
Certification :
CE,ISO
Place of Origin :
Ningbo,China
MOQ :
1 unit
Price :
USD9000-10460/Unit
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
300 units/ moth
Delivery Time :
30days
Packaging Details :
Nude packing, fixed in container
warranty :
1 year or 2000 working hours
color :
customer requirements
Engine :
Nissan
Fork size :
920*120*35mm
Max. lifting heightenter :
3000mm
Turning raduis(outside) :
2055mm
Wheelbase :
1400mm
Ground clearence :
110mm
optional :
side shift ,fork positioner, cabin ,mast style
Description

The specification of 1.5 ton LPG forklift.

Model FG15
Power Type LPG & Gasoline
Rated Capacity kg 1500
Load Centre mm 500
Lift Height mm 3000
Fork Size L×W×T mm 920×120×35
Mast Tilt Angle F/R Deg 6°/12°
Front Overhang (Wheel center to fork face) mm 410
Ground Clearance(Bottom of mast) mm 110
Overall Dimension Length to face of fork(Without fork) mm 2285
Overall Width mm 1086
Mast Lowered Height mm 1995
Mast Extended Height(With backrest) mm 3940
Overhead Guard Height mm 2040
Turning Radius (outside) mm 2055
Speed Travel (Full load) km/h 15
Lifting (Full load) mm/s 450
Max.Gradeability (No load/Full load) % 20
Tire Front mm 6.50-10-12PR
Rear mm 5.00-8-10PR
Wheelbase mm 1400
Service weight kg 2820
Battery Voltage/Capacity V/Ah 12/80
Engine Model K21
Manufacture GCT (NISSAN)
Rated output/r.p.m. kw 31.2/2250
Rated torque/r.p.m. N·m 143.7/1600
No.of Cylinder 4
Bore×Stroke mm 89×83
Displacement cc 2065
Fuel Tank Capacity L 45
Transmission Type Hydraulic
Stage FWD/RVS 1/1

1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift1.5 Ton Small Sit Down Forklifts Gas Powered , Propane Fuel System Forklift

1.5 ton LPG gasoline forklift with Nissan k25 engine

• New Nissan K25 engines - Introduced for lower emissions and better reliability
• Transmission Suspension - Greatly reduces noise & vibrations (down to 79db)
• High Visibility Mast - Significantly better view through the mast due to hidden hoses and cylinders
• Better Steering - The rear axle has been re-designed allowing the wheels to turn up to 85 degrees
• Greater Lift Speed - Lift speed is notably quicker
• Hidden Tilt Cylinders - Frequently requested to avoid marring from chains, over-spray, & debris
• Better Brakes - The brake system has been moved to an oil-immersed design for better performance and higher reliability (up to 8000 hours)
• Superior Ergonomics - Seating, steering, & controls have all been redesigned toprovide more comfortable & efficient operation

Standard configuration:

3m 2-stage mast

Nissank25 engine

920mm fork length

Pneumatic tire

Front lighting system

Back up alarm

Rear view mirror

toyota seat

LPG bracket

After-sale service
Nowadays we have been sell more than 100 countries.
All the products of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product’s quality certificate.

FAQ:

1.What Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.

2. Can you customize and design as the clients' requirement?
LTMG will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.

3.How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.

4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.

5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, blance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.

6.Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.
