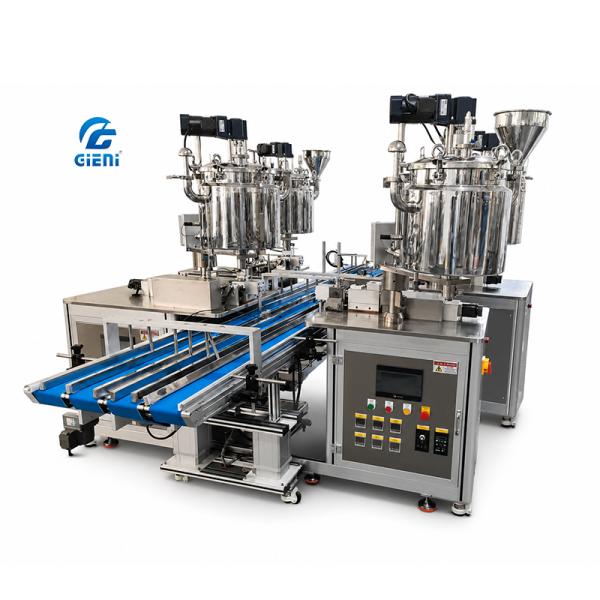

HFM-6N40L Six Nozzle Hot Filling Machine 40L Jacket Tank Servo Piston High Precision Filling
HFM-6N40L Six Nozzle Hot Filling Machine 40L Jacket Tank Servo Piston High Precision Filling
Specifications
Nozzle Quantity :
6
Payment Terms :
T/T, L/C, Western Union
Packaging Details :
Export-grade reinforced wooden crate with vacuum packaging
Filling Range :
5-500ml
Body Material :
304 Stainless Steel
Supply Ability :
20 Sets per Month
MOQ :
1 Set
Tank Capacity :
40L (Double Jacket)
Temperature Range :
RT-120°C
Filling Accuracy :
±0.3%
Brand Name :
Gieni
Price :
USD 12000-18000 / Set
Drive System :
Servo Motor Piston
Heating Method :
Electric Heating with Stirrer
Power :
7 KW
Certification :
CE, ISO 9001
Delivery Time :
25-35 working days
Voltage :
380V 3-Phase
Contact Material :
316L Stainless Steel
Model Number :
HFM-6N40L
Place of Origin :
Shanghai, China
Description

HFM-6N40L Six Nozzle Hot Filling Machine

The HFM-6N40L features six servo-driven piston nozzles paired with a 40L double jacket heating tank for high-volume production. Servo motor control delivers ±0.3% filling accuracy across a 5-500ml range, suitable for cosmetic creams, lip balms, and pharmaceutical ointments.

Key Features

  • Six Servo-Driven Nozzles: Individual servo motor per nozzle with independent stroke and speed control for maximum flexibility.
  • ±0.3% Filling Accuracy: Closed-loop servo feedback ensures superior fill precision compared to pneumatic systems.
  • 40L Double Jacket Tank: Large capacity with efficient jacket heating and continuous stirring for production runs up to 4 hours.
  • Wide Fill Range: Adjustable from 5ml to 500ml without changing parts, suitable for multiple product SKUs.
  • Recipe Storage: PLC memory stores up to 10 product recipes for instant recall during changeovers.

Technical Specifications

ParameterSpecification
ModelHFM-6N40L
Nozzles6 (Servo)
Tank40L Double Jacket
Accuracy±0.3%
Fill Range5-500ml
