Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Specifications
material processed :
Chemicals, Food, Cosmetic
Product name :
Pneumatic Lifting Homogenizer Mixer
Sirrer :
0-3000rpm.
product type :
Cosmetic
machinery test report :
Provided
Place of Origin :
Guangdong, China
Brand Name :
COSMATI
range of spindle speed(r.p.m) :
0 - 3000 r.p.m
Structure :
Vertical
material :
SUS304, SUS316L
dimension(l*w*h) :
L1000*W1000*H2100mm
Capacity :
200 L
Dimension :
L1000*W1000*H2100mm
MOQ :
1
video outgoing-inspection :
Provided
Delivery Time :
7 work days
Supply Ability :
10000 set
Price :
$3,000-3,500
additional capabilities :
Milling
key selling points :
Easy To Operate
core components :
Motor, Gearbox, Bearing, Other
weight (kg) :
120
Type :
50-500L(Customized)
Packaging Details :
wooden cases
voltage :
220V/380V, Customized
warranty :
1 Year
mixer type :
Homogenizer
Product Type :
Homogenizer
Power (kW) :
5.5 kW
Keyword :
Electric Lifting Homogenizer
Payment Terms :
TT
Control :
Electronic Control
Mixing type :
Liquid Mixture Stirring
Description
Pneumatic Lifting Homogenizer Mixer
Liquid Detergent Shampoo Paint Mixing Equipment

Usage

It makes full use of the high-speed rotation of the homogenizing head connected to the engine to make the material blend with oil and water and become more delicate. The material is continuously ejected from the radial direction at high speed, and the flow direction is changed under the resistance of the material itself and the container wall. At the same time, under the effect of the upper and lower axial suction forces generated in the rotor area, two strong turbulent turbulent flows are formed. The material passes through several cycles, and finally completes the process of dispersion, emulsification and homogenization.

Features

  1. It is efficient equipment for low-speed mixing, high-speed dispersion, dissolution and mixing of liquids and solids powders with different viscosities.
  2. Pneumatic lifting, simple operation, flexible movement, low noise and stable operation.
  3. The mixer adopts a motor with the power of 5.5kW, variable frequency speed regulation, rotating speed of 0-1440 rpm, and the support is made of stainless steel SUS304.
Capacity
50-100L(Customized)
Contacted part
SS316L
Frame material
SUS304
Electrical Appliances
DELIXI, China
Speed
0-3000rpm
Motor
, Germany
Power
5.5KW
Inverter
Delta, Taiwan
Size(L*W*H)
1000*1000*2100mm
Type
Pneumatic lifting

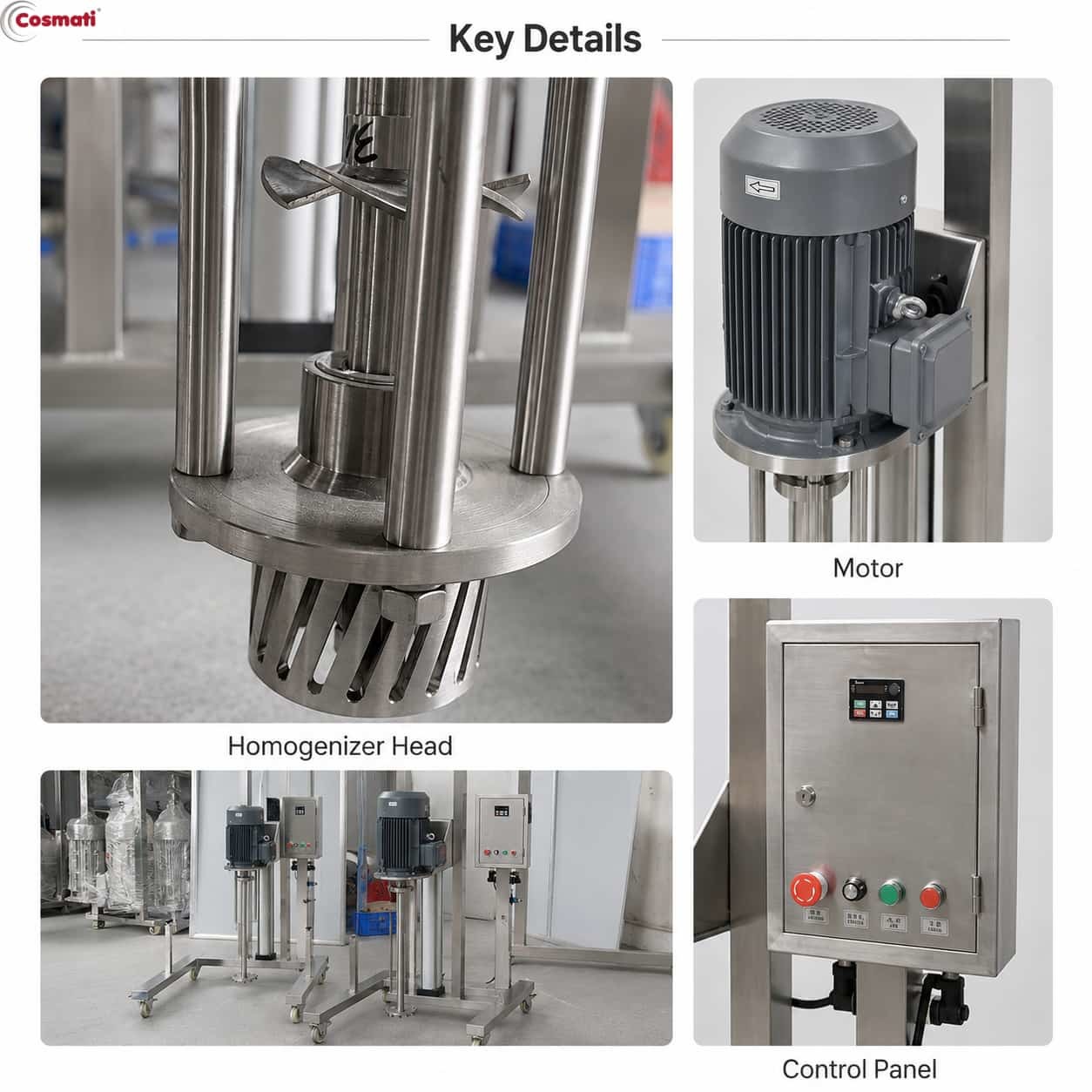

Details Images
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Factory profile
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment


Engineer case
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment

Trade show participation
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Packaging & shipping specifications
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment



Application
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment

FAQ

Q1: What products can this pneumatic lifting homogenizer process?
A: It is suitable for liquid detergent, shampoo, lotion, cosmetic liquids, paint, coatings and other chemical or liquid products requiring homogenizing and mixing.

Q2: What is the standard capacity?
A: The standard capacity shown is 200L. Other capacities can be customized according to production requirements.

Q3: What is the speed range?
A: The homogenizing speed can be adjusted from 0 to 3000 rpm according to different materials and processing needs.

Q4: What is the advantage of the pneumatic lifting system?
A: The pneumatic lifting structure allows the homogenizing head to move up and down conveniently, making tank replacement, material loading and cleaning easier.

Q5: What is the motor power?
A: The standard configuration uses a 5.5 kW motor.
