Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Specifications
packaging type :
Case
Weight (KG) :
150
Production capacity :
20-60bpm
Voltage :
220V
video outgoing-inspection :
Provided
driven type :
Electric
key selling points :
Easy To Operate
After-sales Service Provided :
Video Technical Support, Field installation, commissioning and training, Online support
Filling volume :
5-100ml can be customized
packaging material :
Wood
Power supply :
220V/380V
MOQ :
1
dimension(l*w*h) :
L800mm*W820mm*H1600mm
machinery test report :
Provided
filling nozzle :
2
Delivery Time :
7 work days
Payment Terms :
TT
Packaging Details :
wooden cases
Material :
304 Stainless Steel
core components :
Motor, Pressure Vessel, PLC, Gear, Engine, Other
Stirring speed :
0-90rpm
automatic grade :
Automatic
Keywords :
deodorant sticks filling machine
Brand Name :
Cosmati
warranty :
1 Year
filling accuracy :
99%
Product name :
Automatic gear pump liquid paste filling machine
Control :
PLC + HMI
Place of Origin :
Guangdong, China
application :
Food, Chemical
Filling Volume :
400 mL, 300mL, 100mL, 200mL, 500 mL
Price :
$5,000-5,700
filling material :
Water, Oil
Supply Ability :
10000 set
Filling accuracy :
±1%
Degree of automation :
automatic
Description
Fully Automatic Pomade Jar Filler Deodorant Sticks Vaseline Lipcare Heating Filling Cooling Machine Line

Introduction

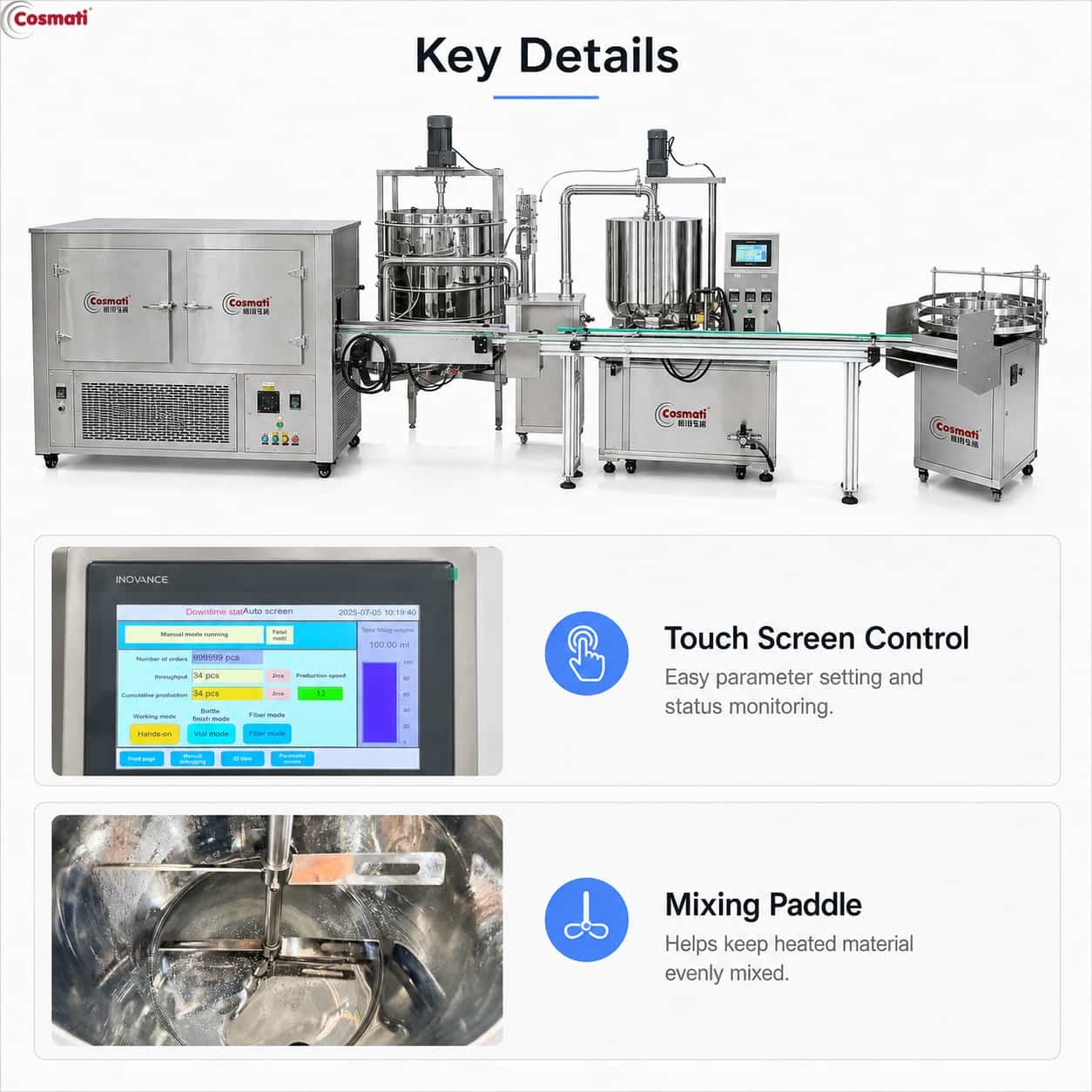

The Automatic Heated Gear Pump Filling Machine is designed for hot filling of wax-based, oil-based and other products that need to remain fluid at a controlled temperature during production.

The system combines a heated material tank, stirring system, gear pump dosing, independently heated product path and filling nozzles, helping maintain a stable material temperature from the hopper to the filling point. This reduces the risk of wax-based products cooling or solidifying inside the filling system.

The current configuration uses two filling nozzles and an automatic conveyor for continuous production. PLC and HMI control allow operators to adjust filling and process parameters conveniently.

It is especially suitable for lip balm, pomade, hair wax, Vaseline-type products, deodorant sticks and other heated cosmetic or personal-care formulations.

Features

  1. Heated filling system designed for wax-based and heat-sensitive cosmetic formulations.
  2. Gear pump dosing provides stable and continuous material delivery during filling.
  3. Two filling nozzles improve production efficiency for automatic batch production.
  4. Material tank is equipped with heating and stirring to maintain uniform product temperature and consistency.
  5. Stirring speed is adjustable from approximately 0–90 rpm.
  6. Pump section and filling nozzles can be heated independently, helping reduce cold spots and material solidification in the product path.
  7. PLC + HMI control provides convenient adjustment of filling and operating parameters.
  8. Automatic conveyor transports containers continuously through the filling station.
  9. Filling nozzles can be customized according to container type, filling volume and required output.
  10. Mixing components use quick-connect design for easier disassembly and routine cleaning.
Power supply
PLC & touch screen
Filling Speed
Power
220V/380V
Inovance
20-60bpm
2.2KW
Stirring speed
Barrel volume
Dimension
Installation requirements
0-90rpm
20L(Customized)
another model is 70L
L800*W820*H1600mm
220V power supply+air source+10kg heat transfer oil


Factory profile
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler

Engineer case
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler

Trade show participation
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Packaging & shipping specifications
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler
Application
Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler

FAQ

Q1: What products can this hot filling machine handle?
A: It is mainly designed for lip balm, pomade, hair wax, Vaseline-type balm, deodorant sticks and other wax-based or oil-based products that require heating during filling.

Q2: Why does this machine need a heated hopper?
A: Wax-based products may solidify when their temperature drops. The heated tank helps keep the material fluid and maintain a stable filling condition.

Q3: Are the filling nozzles heated?
A: Yes. According to the current configuration, the pump and filling nozzle sections can be heated independently to help prevent material from cooling and solidifying in the filling path.

Q4: Does the machine have a stirring function?
A: Yes. The material tank is equipped with stirring, with a reference adjustable speed of approximately 0–90 rpm.

Q5: What filling system does the machine use?
A: It uses a gear pump filling system designed to provide stable delivery of heated liquid and semi-viscous materials.
