3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
Specifications
packaging type :
Bottles
Weight (KG) :
100
Mould height :
750mm
MOQ :
1
Packaging Details :
wooden cases
Price :
$7,000-8,700
Brand Name :
Cosmati
Voltage :
220v/1P
video outgoing-inspection :
Provided
packaging material :
Wood
Type :
pneumatic+electric
driven type :
Mechanical
key selling points :
High Productivity
After-sales Service Provided :
Field installation, commissioning and training, Video Technical Support, Online support
Hopper :
15L Double Layer Hopper
dimension(l*w*h) :
730*830*1860mm
machinery test report :
Provided
filling nozzle :
2
Delivery Time :
7 work days
Supply Ability :
10000 set
core components :
Motor, Pressure Vessel, PLC, Gear, Bearing, Other
Material :
Stainless Steel 304/316
Degree of automation :
Semi-automatic
Filling range :
3-15mm
Table height :
910mm
Payment Terms :
TT
automatic grade :
Semi-Automatic
Keywords :
serum cosmetics cream ball pattern filling machine
Place of Origin :
Guangdong, China
warranty :
1 Year
filling accuracy :
99.5%
application :
Food, Chemical, Textiles
Filling Volume :
3-15ml
filling material :
Oil, lotion, cream, foundation
Product name :
Semi-automatic 3d pearl pattern filler
Advantage :
Filling special pattern for cosmetics
Description
3D Waterdrop-shaped Cream Forming Machine Fancy Skincare Filler Spherical Pearl Cosmetics Pressurized Filling Machine

Introduction

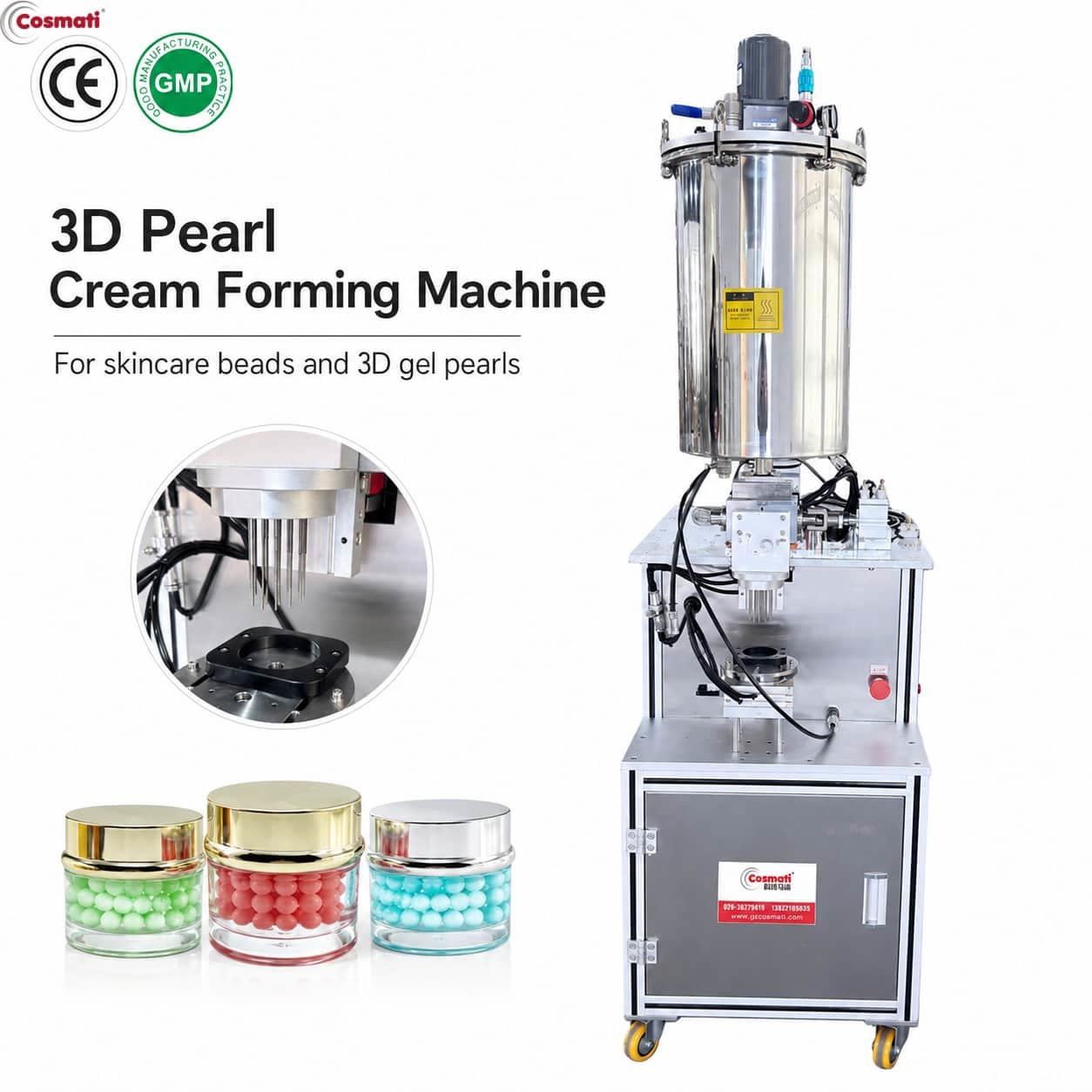

The 3D Pearl Cream Filling Machine is specially designed for decorative filling of skincare creams, gels and compatible cosmetic formulations.

Unlike a conventional filling machine, this model combines servo quantitative filling with a servo-controlled lifting mould to create pearl, spherical, water-drop and other three-dimensional filling effects inside suitable cosmetic containers.

The machine is equipped with a 15L jacketed pressurized hopper with heating and stirring functions. An internal piston separates the pressurizing gas from the cosmetic material, helping maintain controlled material feeding without direct gas contact with the formulation.

With PLC touch-screen control, dual filling nozzles and an adjustable 3–15 mL filling range, the machine is suitable for premium skincare products requiring both accurate dosing and decorative visual presentation.

Features

  1. Servo quantitative filling provides controlled dosing for decorative cosmetic filling.
  2. Servo lifting mould moves vertically during filling to create different 3D cream or gel patterns.
  3. Dual filling nozzles are suitable for decorative filling and special pattern formation.
  4. 15L double-layer jacketed hopper supports heating, pressurization and stirring.
  5. Internal piston separates compressed gas from the raw material during pressurization.
  6. Adjustable stirring speed from approximately 0–90 rpm helps maintain material consistency.
  7. PLC touch screen with button controls provides convenient parameter setting and operation.
  8. Filling range of approximately 3–15 mL is suitable for small-dose premium cosmetic packaging.
  9. SUS304 / SUS316 stainless steel options are available according to product-contact requirements.
  10. Filling nozzle and mould configuration can be customized according to container design and desired 3D pattern.
Technical Data
Model
Filling Volume
Filling Speed
Air pressure
CM-PF-01
3-15ml
10-30 bpm
0.4-0.6Mpa
Dimension
Filling accuracy
Power supply
Hopper volume
L730*W830*H1860mm
Within ±0.5%
1P/220V, 4KW
15L
Factory profile
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler


Engineer case
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
Trade show participation
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler
Packaging & shipping specifications
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler

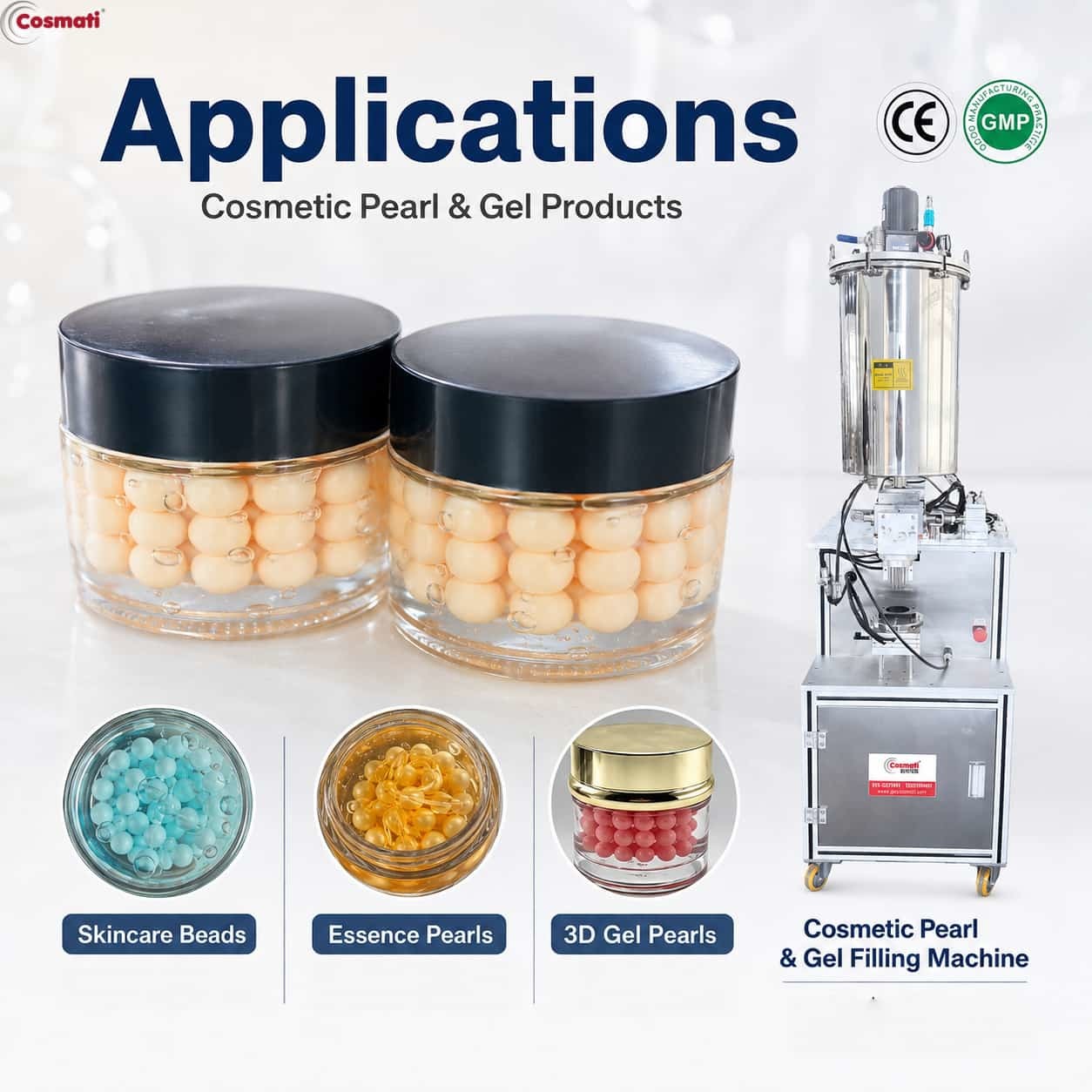

Application
3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler

FAQ

Q1: What is the main difference between this machine and a normal cream filler?
A: A conventional filler mainly controls filling volume, while this machine combines servo dosing and mould movement to create decorative 3D cream or gel patterns inside the container.

Q2: What kinds of patterns can the machine produce?
A: It can be configured for pearl, spherical, water-drop and other decorative effects. The actual pattern depends on the nozzle, mould, container and product formulation.

Q3: What products are suitable for this machine?
A: It is mainly suitable for skincare cream, cosmetic gel, serum gel and other formulations with suitable viscosity and shape-retention characteristics.

Q4: Can every cream create a 3D pearl pattern?
A: No. The formulation must have suitable viscosity, flow behavior and shape retention. Material testing is recommended before final machine configuration.

Q5: What is the filling range?
A: The reference filling range is approximately 3–15 mL.
