3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
Specifications
packaging type :
Bottles
Weight (KG) :
100
Mould height :
750mm
Delivery Time :
7 work days
Price :
$3,000-4,000
packaging material :
Wood
Type :
pneumatic+electric
Degree of automation :
Semi-automatic
Brand Name :
Cosmati
Voltage :
220v/1P
video outgoing-inspection :
Provided
Packaging Details :
wooden cases
driven type :
Mechanical
key selling points :
High Productivity
After-sales Service Provided :
Field installation, commissioning and training, Video Technical Support, Online support
Hopper :
15L Double Layer Hopper
core components :
Motor, Pressure Vessel, PLC, Gear, Bearing, Other
Material :
Stainless Steel 304/316
Payment Terms :
TT
Place of Origin :
Guangdong, China
dimension(l*w*h) :
730*830*1860mm
machinery test report :
Provided
filling nozzle :
2
automatic grade :
Semi-Automatic
Keywords :
serum cosmetics cream ball pattern filling machine
MOQ :
1
warranty :
1 Year
filling accuracy :
99.5%
filling material :
Oil, lotion, cream, foundation
Supply Ability :
10000 set
Product name :
Semi-automatic 3d pearl pattern filler
Advantage :
Filling special pattern for cosmetics
application :
Food, Chemical, Textiles
Filling Volume :
3-15ml
Filling range :
3-15mm
Table height :
910mm
Description
COSMATI Single Color Pearl Cream Filler Lotion Liquid Foundation Dispenser 3D Pattern Fancy Cosmetic Filling Machine
Features
1.Barrel pressurization;
2.Table height: 750mm; Weight: 100kg;
3.Servo quantitative filling, servo lifting mold (based on client’s package);
4.A piston is added inside the barrel so that the gas does not come into contact with the raw materials during pressurization;
5.Filling range: 3-15ml, filling accuracy: ±0.05g
Technical Data
Model
Filling Volume
Filling Speed
Air pressure
CM-PF-01
3-15ml
10-30 bpm
0.4-0.6Mpa
Dimension
Filling accuracy
Power supply
Hopper volume
L730*W830*H1860mm
Within ±0.5%
1P/220V, 4KW
15L

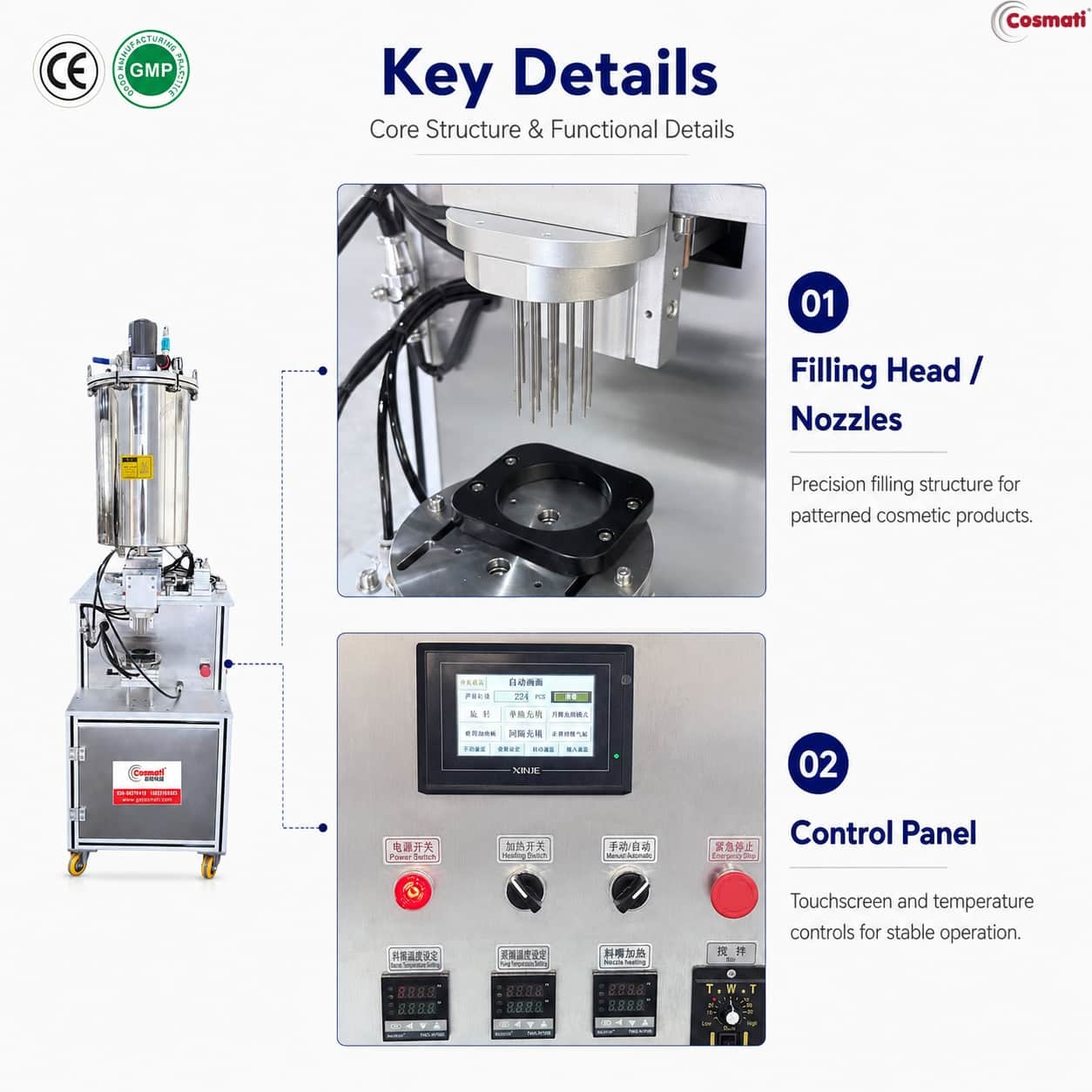

Details
Stirrer
Material: SUS304, stirring speed; 0-90rpm
Control panel
PLC touch screen + button control; PLC touch screen adopt Xinjie brand
Jacketed Hopper
Hopper volume is 15L, with pressure, heating and stirrer
Mould & filling nozzles
Mould can lift up & down, nozzles are compatible with lipgloss and 3D cream in gel
Factory profile
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler


Engineer case
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
Trade show participation
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
Packaging & shipping specifications
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler
Application
3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler

FAQ

Q1: What products can this 3D pattern filling machine handle?
A: It is suitable for cosmetic materials such as cream, lotion, liquid foundation, cosmetic oil and similar fluid or semi-viscous formulations.

Q2: What is the main function of this machine?
A: The machine is designed for cosmetic filling applications where controlled dispensing is required to create decorative or 3D-style filling effects inside suitable containers.

Q3: Can it be used for pearl cream or foundation products?
A: Yes. Pearl cream and liquid foundation are suitable applications when the formulation viscosity and flow characteristics match the filling system.

Q4: Is this machine suitable for every cream viscosity?
A: No. Filling performance and pattern formation depend strongly on material viscosity, fluidity and formulation. Product samples should be tested before confirming the final configuration.

Q5: How many filling nozzles does the machine have?
A: The current configuration uses 2 filling nozzles.
