Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Specifications
packaging type :
Bottles
Filling Volume :
200mL, 100mL, 500 mL, 300mL, 400 mL
Applicable bottle diameter :
10-120(mm)
driven type :
Pneumatic
filling material :
Milk, Water, Oil, Juice, Viscous Liquid, Honey, Paste, Ketchup, Peanut Butter, JAM, Shampoo, Liquor, Yogurt, Nail polish
Weight (KG) :
50
Production capacity :
10-30 (bottles/minute)
Packaging Details :
wooden cases
Supply Ability :
10000 set
Price :
$1,350
application :
Food, Chemical
Product name :
Semi Automatic Face Cream Shampoo Paste Filling Machine
filling accuracy :
99%
warranty :
1 Year
video outgoing-inspection :
Provided
After-sales Service Provided :
Video Technical Support, Online support
Keywords :
filling machine pneumatic
Brand Name :
Cosmati
MOQ :
1
dimension(l*w*h) :
550*580*1600 mm
core components :
Motor, Pressure Vessel, Pump, Gear, Other
Place of Origin :
Guangdong, China
key selling points :
High Productivity
machinery test report :
Provided
Delivery Time :
7 work days
Payment Terms :
TT
packaging material :
Wood
Type :
Pneumatic
Applicable bottle height :
30-200(mm)
filling nozzle :
2, 4
Filling volume :
100-1000(ml)
automatic grade :
Semi-Automatic
Size :
550*580*1600mm
Filling accuracy :
±1%
Degree of automation :
Semi-automatic
Description
Semi Automatic Face Cream Shampoo Paste Ointment Suce Filling Machine
Introduction

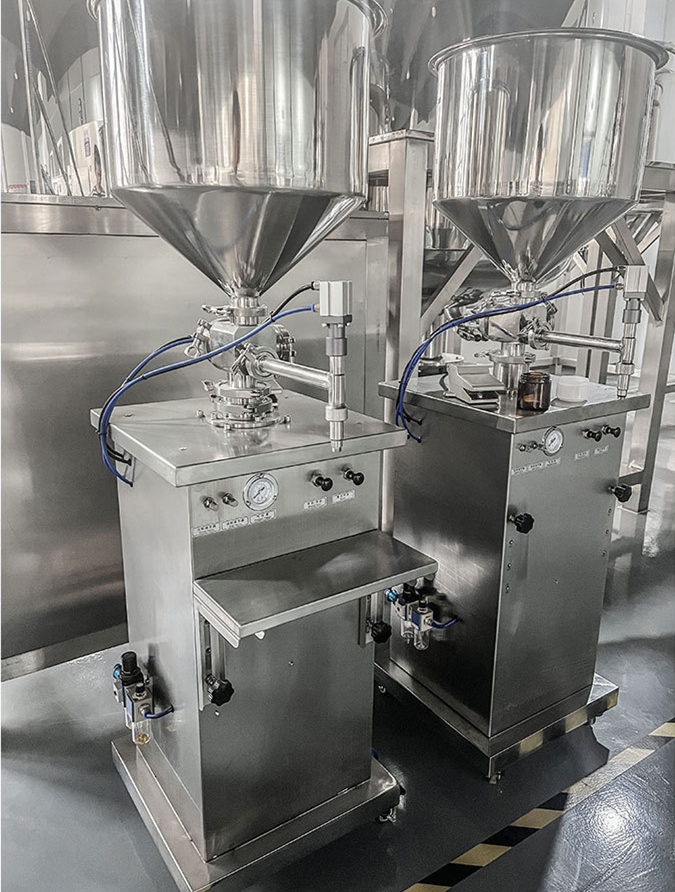

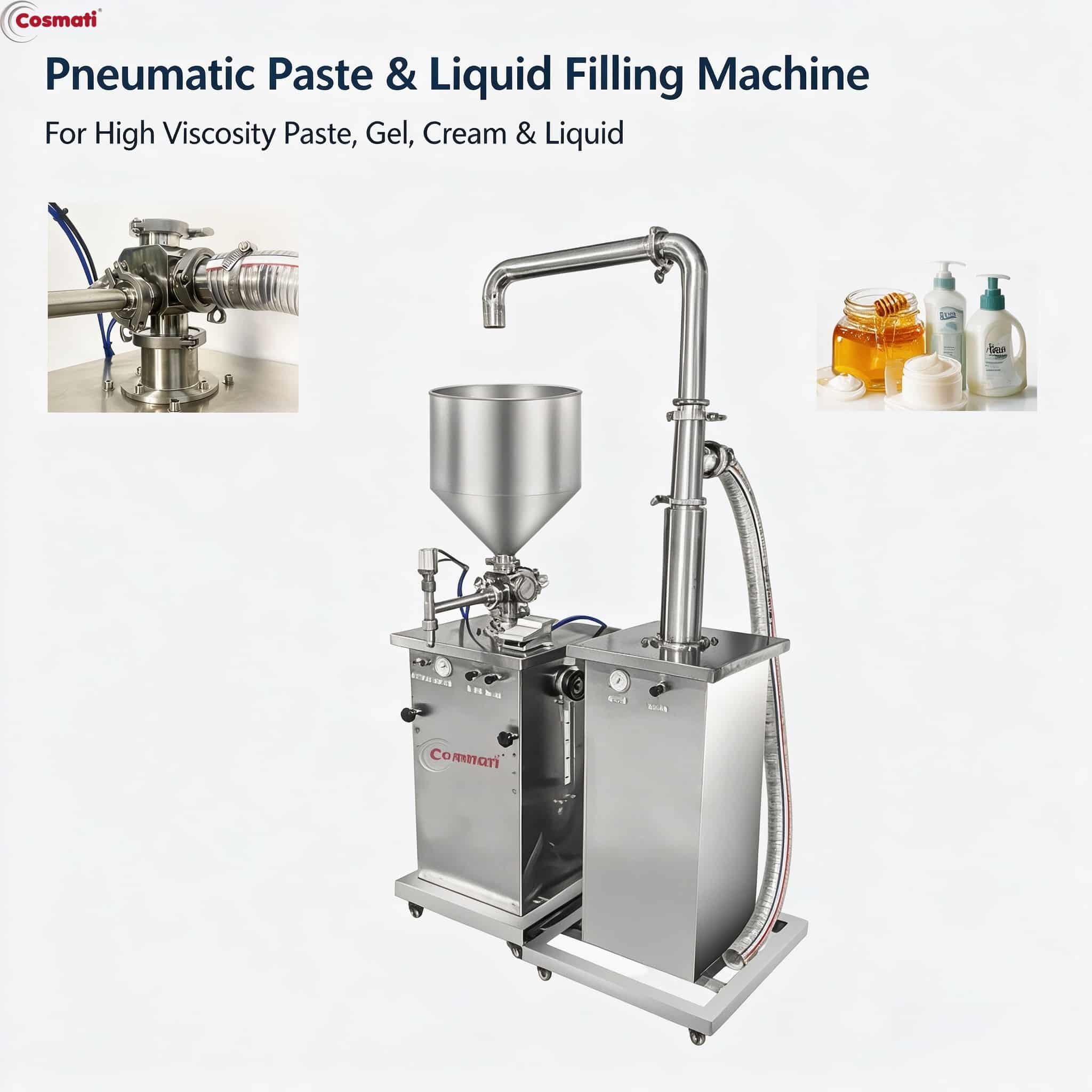

The paste filling machine uses compressed air as power and is composed of precision pneumatic components to form an automatic filling system. It has simple structure, sensitive and reliable action, and convenient adjustment. It is suitable for various liquids, viscous fluids and paste filling. Working in flammable and explosive environments, it is the most ideal filling equipment for daily chemical, food, cosmetics and other industries.
Filling Machine contacted part material: SS316L
Frame material: SUS304
Used to feeding material to the hopper on filler
*Automatic Feeding Machine is optional

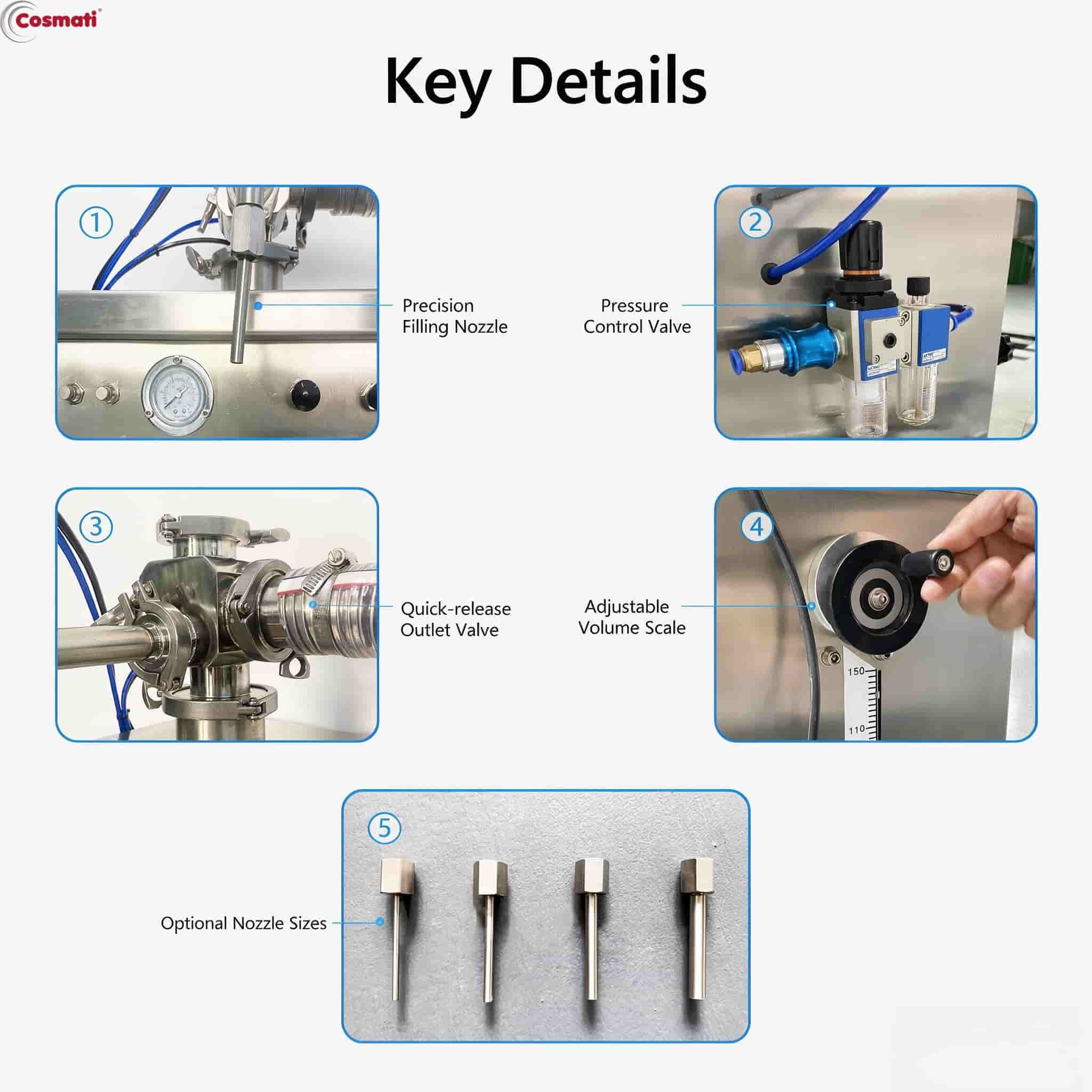

Features

1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.

Model
Filling Volume
Filling Speed
Pressure Supply
CM-GT-5
5-50ml
10-45 bpm
0.2-0.6 Mpa
CM-GT-10
10-120ml
10-35 bpm
0.2-0.6 Mpa
CM-GT-25
25-250ml
10-30 bpm
0.2-0.6 Mpa
CM-GT-50
50-500ml
10-30 bpm
0.2-0.6 Mpa
CM-GT-100
100-1000ml
10-25 bpm
0.2-0.6 Mpa
CM-GT-250
250-2500ml
5-18 bpm
0.2-0.6 Mpa
CM-GT-500
500-5000ml
5-12 bpm
0.2-0.6 Mpa


Factory profile
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Engineer case
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Trade show participation
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Packaging & shipping specifications
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine
Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine

FAQ

Q1 Can this machine handle high-viscosity products like honey or face cream?

Yes. This equipment utilizes a pneumatic gear pump/piston structure (depending on configuration) specifically engineered for high-viscosity pastes and liquids. The hopper design combined with powerful pneumatic drive easily handles creams, honey, shampoos, and various chemical ointments without clogging or dripping.

Q2 What is the filling accuracy? Will it cause material waste?

The filling accuracy reaches ±1%. Equipped with a precision adjustment handwheel and scale, the machine allows strict control over the filling volume (adjustable from 10-200ml). This ensures consistency across every bottle and significantly minimizes the loss of expensive raw materials.

Q3 Is it easy to clean when switching between different materials?

Extremely easy. All parts in contact with the material are made of SS304 or SS316L stainless steel, adhering to GMP standards. The use of quick-release tri-clamps allows for easy disassembly of the hopper and filling nozzle for thorough cleaning without professional tools, preventing cross-contamination.

Q4 What additional equipment is required to run this machine?

As this is a pneumatic-driven machine, you will need an air compressor with a power rating of 1.1kW to 2.2kW or higher (air pressure requirement: 0.4-0.6MPa). The control circuit supports 110V/220V voltage, and we will configure the plug according to your local standard before shipping.
