Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Specifications
driven type :
Pneumatic
filling material :
Cream, Liquid Soap, Water, Gel, Oil, Juice, Viscous Liquid, Honey, Paste, Ketchup, Peanut Butter
Weight (KG) :
50
Operating :
Button Control
warranty :
1 Year
video outgoing-inspection :
Provided
After-sales Service Provided :
Online support, Video Technical Support
filling nozzle :
2
Delivery Time :
7 work days
packaging type :
Bottles, Cans, Cartons, Barrel, Stand-up Pouch, Bags, Pouch
Filling Volume :
100mL, 200mL, 500 mL, 300mL, 1L, 400 mL, 100-1000 ml
Application :
Mascara, Lipgloss, Nail Polish,etc
Packaging Details :
wooden cases
dimension(l*w*h) :
refer to drawings
core components :
Pump
Place of Origin :
Guangdong, China
Price :
$1,200-1,350
packaging material :
Plastic, Paper, Metal, Glass, Wood
Payment Terms :
TT
MOQ :
1
key selling points :
High-Accuracy
machinery test report :
Provided
Size :
550*580*1600 mm
application :
Chemical, Commodity, Beverage, Food
Product name :
Semi-auto filler for cosmetics
Supply Ability :
10000 set
filling accuracy :
99%
Specification :
Stainless steel 304/316L
Power Consumption :
0.4-0.6Mpa
Filling Principle :
piston filling
Brand Name :
COSMATI
automatic grade :
Semi-Automatic
Driven Type :
Pneumatic Type
Description
High Viscosity Paste Liquid 2 in 1 Filler Cosmetic Cream Lotion Filling Machine for Jar Bottle Bag

Introduction

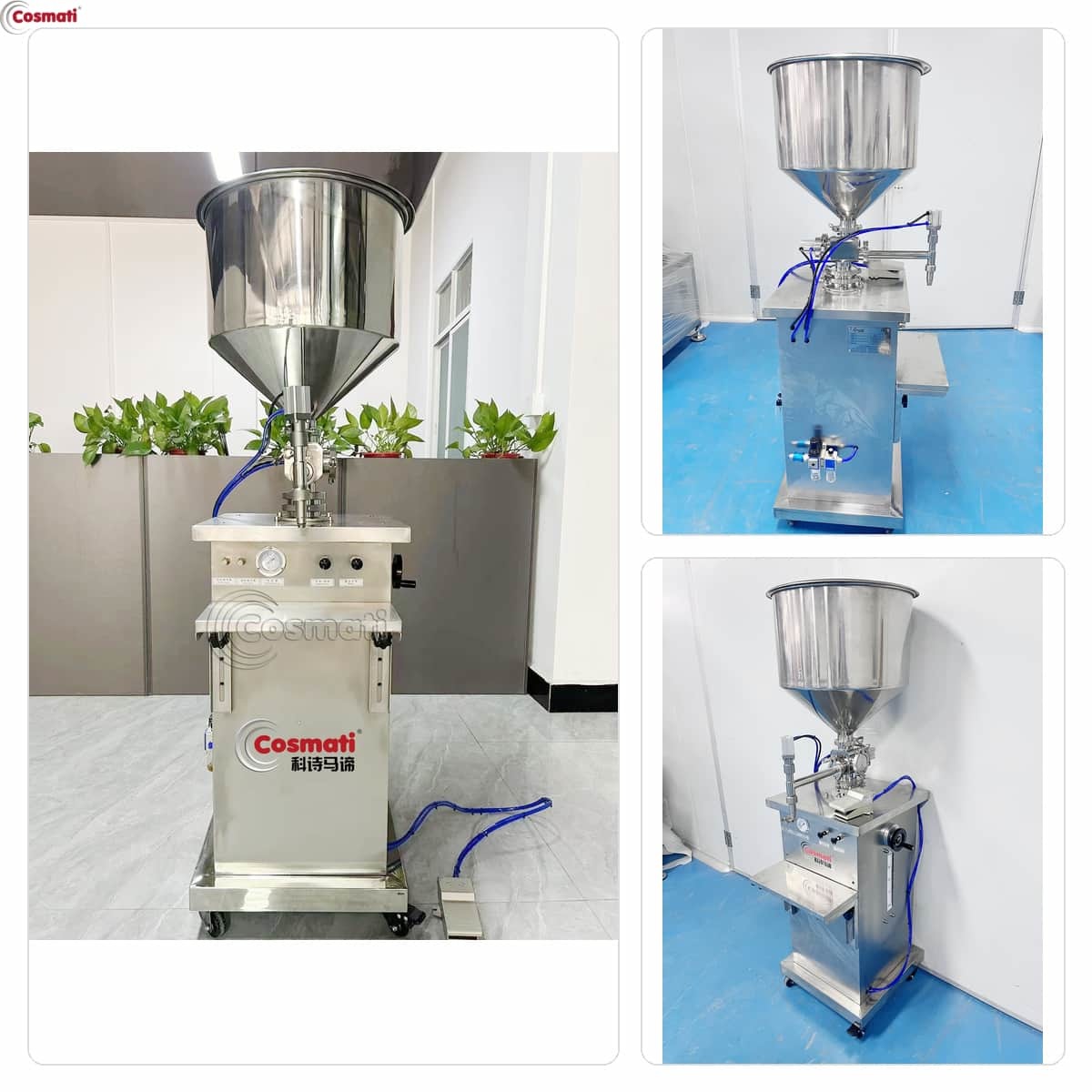

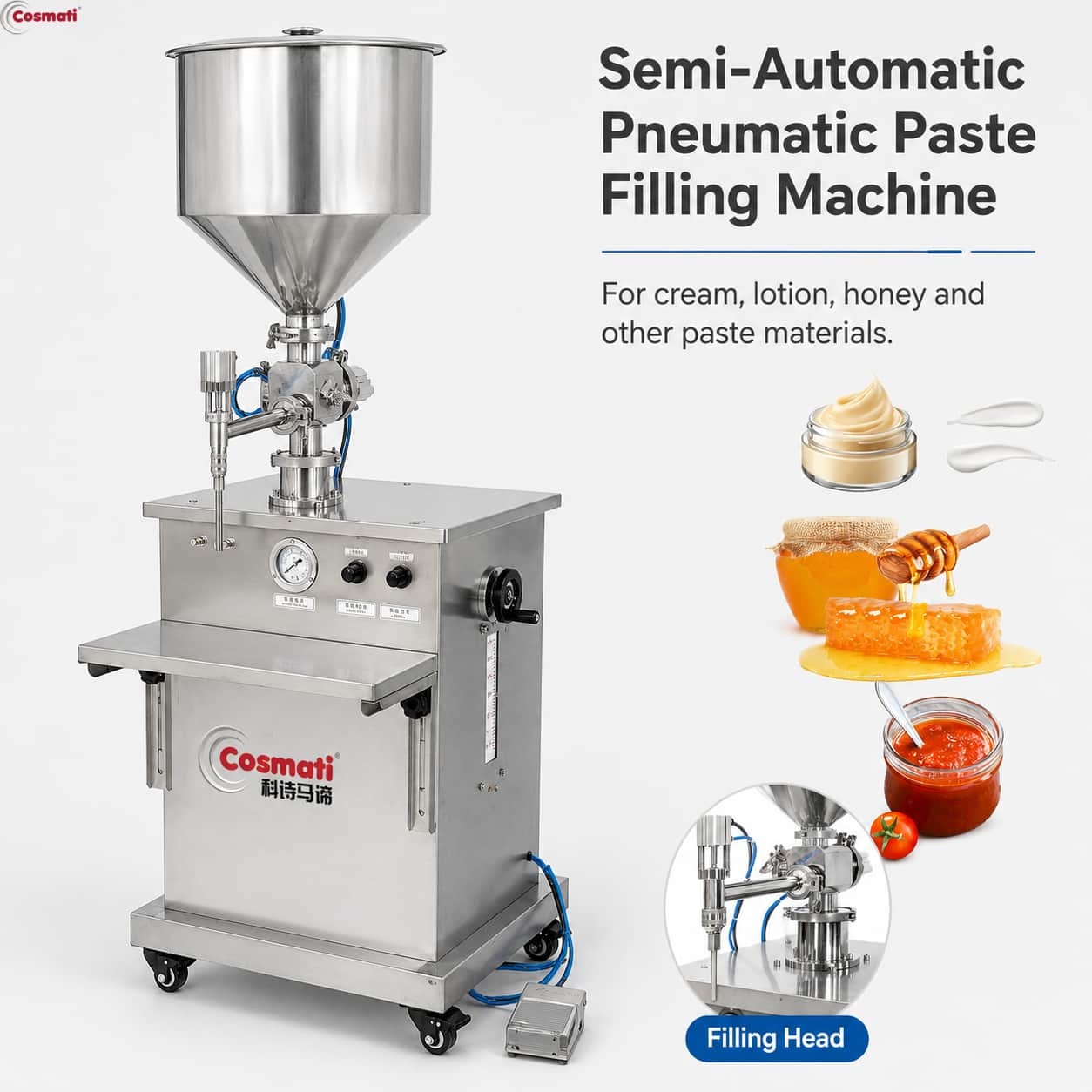

The Semi-Automatic Pneumatic Piston Filling Machine is designed for quantitative filling of liquid, cream, paste and other medium-to-high viscosity products.

The machine uses compressed air to drive the piston filling system. Material is fed from the upper hopper into the dosing cylinder and discharged through a single filling nozzle. The filling volume can be mechanically adjusted according to different container sizes and production requirements.

Its simple pneumatic structure, foot-pedal operation and compact vertical design make it suitable for flexible small and medium batch production in cosmetics, personal care, food and daily chemical applications.

The machine is particularly suitable for products such as cosmetic cream, lotion, gel, liquid soap, honey, ketchup, peanut butter and similar materials with suitable flow characteristics.

Features

  1. Pneumatic piston dosing system provides stable quantitative filling for liquid and paste products.
  2. Suitable for medium-to-high viscosity materials such as cream, gel, lotion, honey and paste.
  3. Single filling nozzle provides simple operation and flexible product changeover.
  4. Filling volume can be mechanically adjusted according to the required dose.
  5. Foot-pedal control allows convenient operator-controlled filling.
  6. Upper hopper provides direct gravity feeding into the piston filling system.
  7. Compact vertical structure occupies relatively little production floor space.
  8. Simple pneumatic construction makes routine maintenance and adjustment convenient.
  9. Suitable for bottles, jars and other containers with compatible openings.

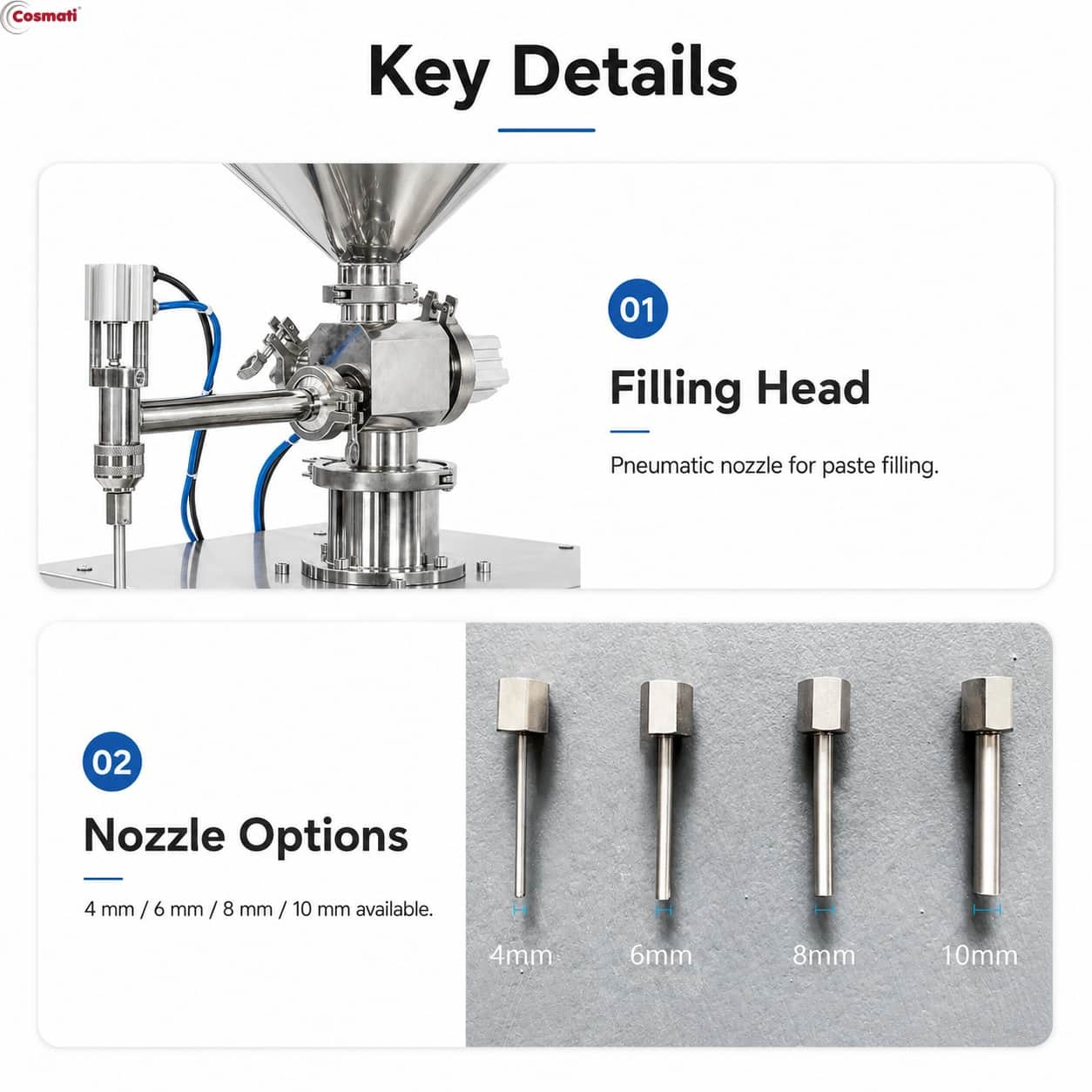

  10. Different piston cylinders and nozzles can be selected according to filling volume and material viscosity.
Technical Data
Model
Filling Volume
Filling Speed
Pressure Supply
CM-GT-5
5-60ml
10-45 bpm
0.2-0.6 Mpa
CM-GT-10
10-120ml
10-35 bpm
0.2-0.6 Mpa
CM-GT-25
25-250ml
10-30 bpm
0.2-0.6 Mpa
CM-GT-50
50-500ml
10-30 bpm
0.2-0.6 Mpa
CM-GT-100
100-1000ml
10-25 bpm
0.2-0.6 Mpa
CM-GT-250
250-2500ml
5-18 bpm
0.2-0.6 Mpa
CM-GT-500
500-5000ml
5-12 bpm
0.2-0.6 Mpa

Factory profile
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Engineer case
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Trade show participation
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler
Packaging & shipping specifications
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler

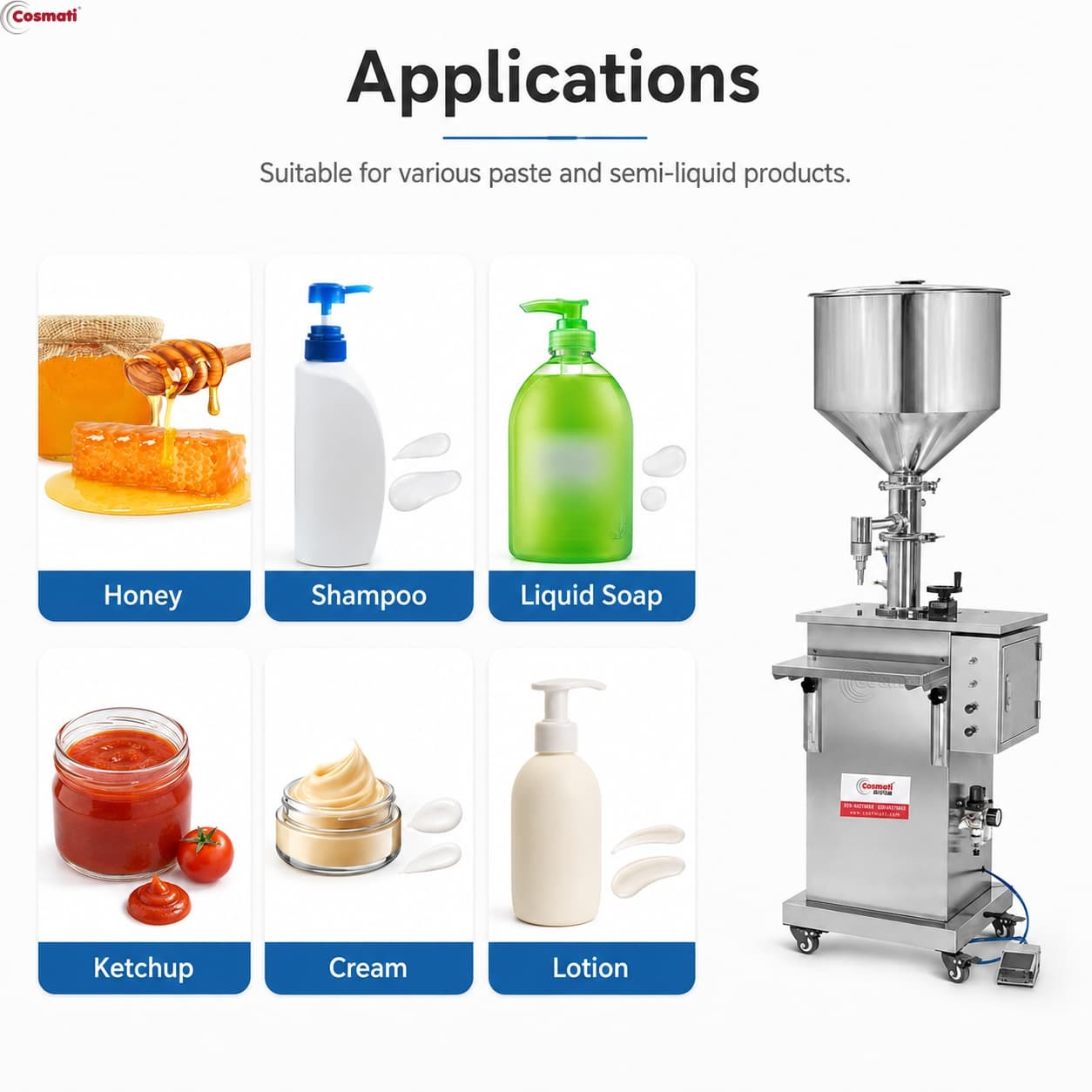

Application
Pneumatic Paste Filling Machine Semi Automatic Cream Lotion High Viscosity Filler

FAQ

Q1: What products can this filling machine handle?
A: It is suitable for cream, lotion, gel, ointment, liquid soap, honey, ketchup, peanut butter and other liquid or semi-viscous products.

Q2: Is this machine suitable for high-viscosity paste?
A: Yes. The piston filling system is suitable for many medium-to-high viscosity products. Extremely thick materials should be evaluated according to actual viscosity and filling volume.

Q3: Is this machine fully automatic?
A: No. It is a semi-automatic filling machine. The operator places the container and starts the filling cycle, typically using the foot pedal.

Q4: What filling principle does the machine use?
A: It uses a pneumatic piston dosing system. A preset volume of material is drawn into the cylinder and then discharged through the filling nozzle.

Q5: Does the machine require compressed air?
A: Yes. The filling action is pneumatically driven and requires an external compressed-air supply.
