Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Specifications
feeding size (mm) :
0.005 - 0.01 mm(0-0in)
core components :
Bearing, Pump, Gear, Engine, Other
Roller length :
160mm
range of spindle speed(r.p.m) :
0 - 100 r.p.m
Product Type :
Cosmetic
video outgoing-inspection :
Provided
Roller diameter :
50mm
Place of Origin :
Guangdong, China
application :
Chemicals Processing, Plastics Processing, Food Processing
weight (kg) :
23
machinery test report :
Provided
material :
SUS304, SUS316L, Ti, Other, ceramic
warranty :
1 Year
Supply Ability :
10000 set
MOQ :
1
type :
Grinder
dimension(l*w*h) :
L390 x W210 x H280 mm
Keyword :
three roll mill
output size (mesh) :
100 - 3000 mesh
Speed :
0-100rpm
Price :
$4,200-5,500
output (kg/h) :
0.02 - 5 kg/h(0.04-11.02lb/h)
Product name :
laboratory ceramic three-roll grinder three roll mill
voltage :
220V
Brand Name :
COSMATI
Capacity :
0.02-5L/H
key selling points :
Multifunctional
Voltage :
220V/50Hz
power (kw) :
0.12
Other name :
granding machine
Packaging Details :
wooden cases
Payment Terms :
TT
Machine Type :
Grinder Mill
Color :
white
Delivery Time :
7 work days
Description
Laboratory Ceramic Three-roll Grinder Three Roll Mill for Soap Lipstick Cosmetic Powder Triple Roll Mill
Introduction
The three-roll mill is suitable for the manufacture of slurries such as paints, inks, pigments, and plastics.Three rollers are installed on the iron frame of the three-roll mill, and the center is in a straight line. It can be installed horizontally or slightly inclined. The surface of the three horizontal rollers are pressed against each other, and then ground at different friction speeds. The steel drum can be hollow and cooled by water, and materials can be added between the middle roll and the rear roll.

Features

1. High-precision grinding (minimum precision can reach below 1um, depending on the inherent properties of the material)
2. Visual electronic touch screen control;
3. Self-adaptive fit the scraper seat;
4. Comes with roller cooling circulation system;
5. Precisely polished and easy-to-clean rollers;
6. Dual mode operation;
7. Equipped with dust cover, optional feeding hopper;
Capacity
Power&voltage
Roller speed ratio
Roller material
0.02-5L/Hour
0.12kw;220v/50Hz
1:2:4
Zirconia
Speed
Roller diameter/length
Scraper material
Dimension
0-100rpm
50mm/160mm
Stainless steel
L390*W210*H280mm

Company Profile
We have 2 factories, one was built in Jiangsu province, and mainly produce mixing tanks, vacuum emulsifier, and storage tanks, with 30 acres of space and with a pressure tank certificate. Another was built in Guangzhou city, mainly produce
Cream&Lotion&Liquid Detergent production line, filling packing lines, is with 5,000 square meters. We supply one-stop station service for designing workshops, workshop layout, selecting machines, and installation(one-stop solution).

Guangzhou Cosmati Technology Co.,Ltd is a scientific enterprise, concentrating on researching, developing, producing, and marketing services. Cosmati has a scientific research team made up of superior engineer and German export. Depending on Germany Cosmati technical tip and exquisite artwork, Cosmati has become the preferred automatic machinery manufacturer in cosmetic skincare, food and chemical industries.

We provide a fair price with competitive products. Excellent, Professional, Competitive products and good service are provided. The dedicated QC team is responsible for quality control from start production to delivery to the customers' side. Every product is carefully verified before delivery to the customer, as well as a detailed inspection record to provide accurate after-sales service.

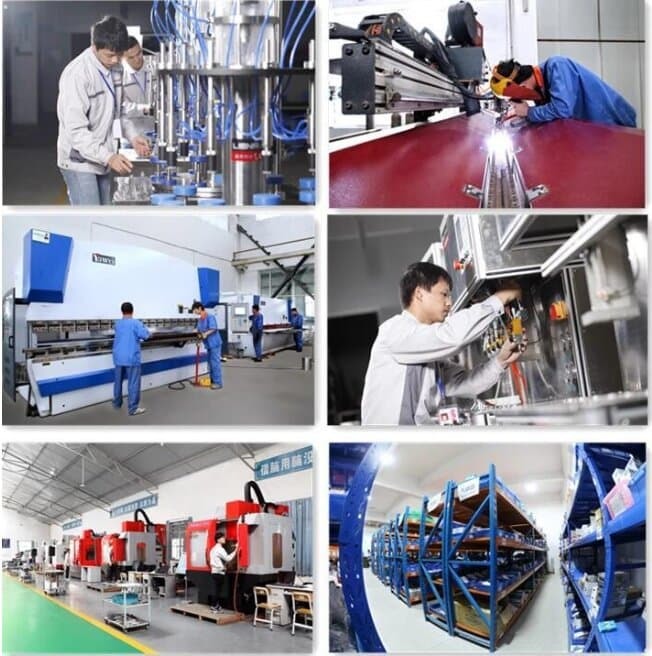

Factory profile
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding


Engineer case
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Trade show participation
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding
Packaging & shipping specifications
Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding

Application

Laboratory Ceramic Three Roll Mill for High Viscosity Material Grinding

FAQ

Q1: What materials can this laboratory three roll mill process?

A:This laboratory three roll mill is designed for grinding and dispersing high viscosity materials, such as cosmetics, lipstick, cream, ink, pigment, coating, battery paste, graphene materials and pharmaceutical products.

Q2: What is the advantage of ceramic rollers?

A:The ceramic rollers provide excellent wear resistance, corrosion resistance and smooth surface performance, helping achieve fine particle size and uniform dispersion during grinding.

Q3: What is the processing capacity of this machine?

A:The laboratory three roll mill has a processing capacity of approximately 0.02-5L/H, which is suitable for laboratory testing, formula development and small batch production.

Q4: Is this machine suitable for cosmetic product development?

A:Yes. This machine is widely used for cosmetic R&D, including lipstick, foundation, cream, pigment paste and other high viscosity cosmetic materials that require fine grinding and uniform mixing.

Q5: How do I adjust the grinding fineness?

A:The roller gap can be adjusted according to different material requirements. By controlling the gap between rollers, users can achieve different grinding and dispersion effects.
