10KWH Energy Storage Lithium Battery 200AH For Household Power Supply
10KWH Energy Storage Lithium Battery 200AH For Household Power Supply
10KWH Energy Storage Lithium Battery 200AH For Household Power Supply
10KWH Energy Storage Lithium Battery 200AH For Household Power Supply
Specifications
Brand Name :
Coslight or OEM
Model Number :
FP31136227A
Certification :
UL, CE, FCC, RoHS, Un38.3, CB, IEC62133, MSDS
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
8000pcs/week
Delivery Time :
10~15days
Packaging Details :
Wooden box
Type :
LiFePO4
Size :
Customize Accepted
Application :
Energy storage
Warranty :
3 Years
Nominal capacity :
OEM
Nominal voltage :
12v/24v/36v/48v
Cycle life :
>2000times
Components :
LiFePO4
Housing :
Metal,Plastic
Oem/odm :
Acceptable
Description

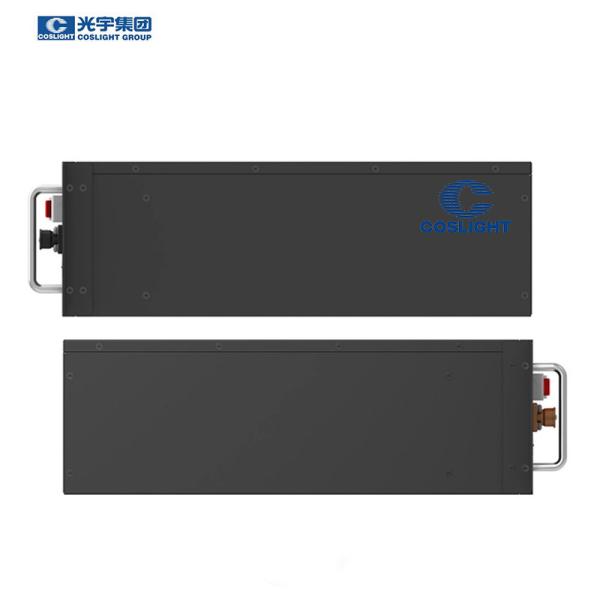

10KWH Energy Storage Lithium Battery 200AH For Household Power Supply

Coslight Rechargeable 10KWH Energy Storage Lithium Battery 200AH High Safety

10KWH Energy Storage Lithium Battery 200AH For Household Power Supply

  • Our battery module consists of multiple cells connected in a series and/or a parallel, encased in a mechanical structure. The system is modular in design, allowing for it to be easily switched to a different capacity and power as per your demands. The unit can be wall mounted, floor mounted, and server rack mounted.

ELECTRICAL PERFORMANCE

Nominal Voltage

51.2 V

Nominal Capacity

200AH

Capacity @ 20A

600 min

Energy

10240Wh

Communication

CAN2.0/RS232/RS485

Resistance

≤45 mΩ @ 50% SOC

Efficiency

>96%

Module Parallel

Up to 16 packs

CHARGE PERFORMANCE

Recommended Charge Current

20A

Maximum Charge Current

100A

Recommended Charge Voltage

57.6V

BMS Charge Cut-Off Voltage

<54.7 V (3.65V/Cell)

Reconnect Voltage

>54 V (3.6V/Cell)

Balancing Voltage

<54V (3.6V/Cell)

Maximum Batteries in Series (cells)

15(*Consult MUST)

MECHANICAL PERFORMANCE

Dimension (L x W x H)

482*500*222mm

19.0x 19.7x 8.7”

Approx. Weight

35.7 lbs (80 kg)

Terminal Type

DIN POST

Terminal Torque

80 ~ 100 in-lbs (9 ~ 11 N-m)

Case Material

SPPC

Enclosure Protection

IP54

DISCHARGE PERFORMANCE

Maximum Continuous Discharge Current

100A

Peak Discharge Current

110 A (3s)

BMS Discharge Cut-Off Current

150A (300ms)

Balancing open voltage

51.7V (3.45V/Cell)

Recommended Low Voltage Disconnect

41.2 V (2.75V/Cell)

BMS Discharge Cut-Off Voltage

>30.0V (2s) (2.0V/Cell)

Reconnect Voltage

>37.5 V (2.5V/Cell)

Short Circuit Protection

250 ~ 500 μs

TEMPERATURE PERFORMANCE

Discharge Temperature

-4 ~ 131 ºF (-20 ~ 55 ºC)

Charge Temperature

-4 ~ 113 ºF (0 ~ 45 ºC)

Storage Temperature

23 ~ 95 ºF (-5 ~ 35 ºC)

BMS High Temperature Cut-Off

149 ºF (65 ºC)

Reconnect Temperature

131 ºF (55 ºC)

HEATING FOIL PERFORMANCE

Heating Temperature Range

-4 to 41 ºF (-20 to 5 ºC)

Heating Time

Approximately 1 hour @ 7.5 A

BMS Heating Foil Cut-Off

158 ºF (70 ºC)

Company information

FAQ

Q1: Are you a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, which can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

Q4. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6. Do you test all your goods before delivery?
A: Yes, We have a professional QC team to make sure that the product in good condition before sending out the goods.

Q7: How do you make our business a long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
