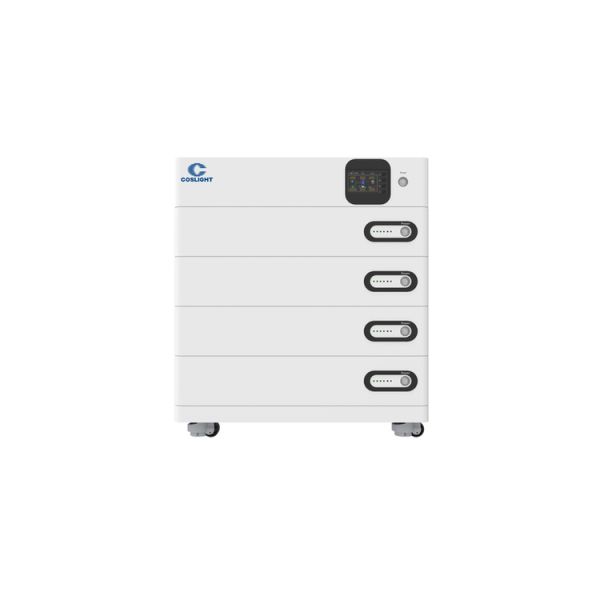

Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
Specifications
Place of Origin :
Guangdong, China
Model Number :
CPB
Packaging Details :
wooden packing
Supply Ability :
50 Unit/Units per Month
MOQ :
50 pieces
Price :
$1,958.00/pieces >=50 pieces
Protection Level :
IP20
External Size :
620W*345D*780mm
Nominal Voltage :
51.2V
Voltage Range :
45~57.6V
Capacity :
10.24KWH ( 2.5kWH*4 )
Rated Power :
5000W
Humidity :
5%~95%
Weight Approx. :
140KG
Port :
sz/hk
Description
Product Specification
Brief Introdution

1. CPB series is a split-phase system, which is scalable so that you can provide 5 kWh of capacity up to 20 KWh per battery cabinet for flexible installation options. And it can be charged by either electricity from your utility or solar power.

CPB has four working modes: SOL(Solar First), UEI(Utility First),SBU(Solar-Battery-Utility),SUB(Solar-Utility -Battery). These
working modes are described refer to the setting part of user manual.
Battery
Nominal Voltage
51.2V
Voltage Range
45~57.6V
Capacity
10.24KWH ( 2.5kWH*4 )
Max.discharge Rate
1C
Max.charge Rate
1C
Battery Type
Li-ion(LFP)
AC Output
Rated Power
5000W
Surge Power
10000w
Output Voltage
220/230/240Vac±3%
Output Current
22A
Rated Frequency
50/60Hz
VTHD
＜3%
Output Wave
Pure Sine Wave
Output Type
Euro Round Socket×4+Terminal
Max. Efficiency
93%
AC Input
AC Input Voltage Range
170~280Vac
AC Input Frequency
50/60Hz
Max AC Charge Current(Battery)
30A(0~60A Adjustable)
PV Input
Max. PV Power(Recommended)
6000W
Max. PV Voltage
450V
MPPT Range
120V~430V
Max PV Charge Current(Battery)
100A
Operating Conditions
Operating Temperature
0~55℃
Storage Temperature
-15℃~60℃
Humidity
5%~95%
Cooling Strategy
Fan
Weight
Approx. 140KG
Dimension [W x H x D, mm]
620W*345D*780mm
Packing
wooden case
Packing Dimension [W x H x D]
TBD
IP class
IP20
Communication
WIFI/RS485
Warranty
3 years
Products Description
Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
Company Profile
Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
Stainless Steel Solar Metal Lithium Battery 10.24KWH 51.2V 5000W
