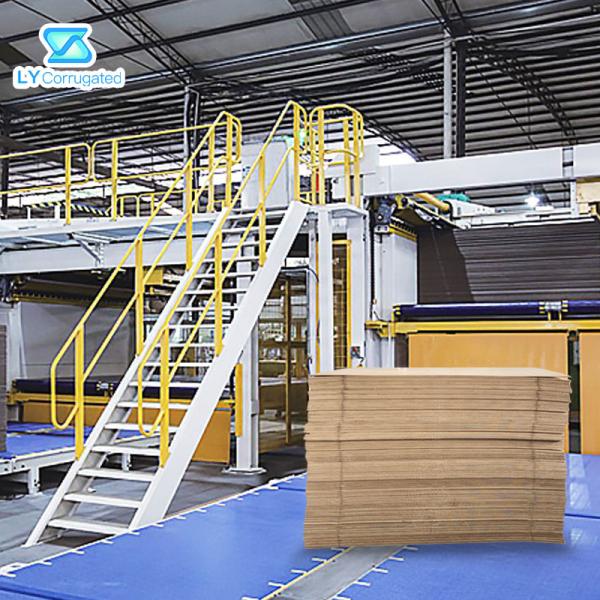

3/5/7 Ply Corrugated Cardboard Production Line 300M/MIN 50KW Down Stacker Dry End
3/5/7 Ply Corrugated Cardboard Production Line 300M/MIN 50KW Down Stacker Dry End
Specifications
Brand Name :
LY Corrugated
Model Number :
Auto Stacker
Certification :
CE、ISO、TUV、SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Factory Price
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 sets per Year
Delivery Time :
45-90 work days
Packaging Details :
Film
EFFECTIVE WIDTH :
1800、2000、2200、2500
MAX. SPEED :
300M/MIN
STACKING LENGTH :
500~3200MM
STACKING HEIGHT :
1500MM
TOTAL POWER :
50KW
Feature :
AUTO COUNTING, AUTO STACK CHANGING
Description

Down Stacker Dry-End Machine For 3/5/7 ply Corrugated Cardboard Sheet Production Line

Equipment Parameter:

EFFECTIVE WIDTH 1800,2000,2200,2500
MAX. SPEED 300M/MIN
STACKING LENGTH 500~3200MM
STACKING HEIGHT 1500MM
TOTAL POWER 50KW

Feature:

★ THERE ARE 4 SECTIONS FOR CONVEY. THE 1ST SECTION FEED PAPER BOARD STEADY. PAPER IS PRESSED BY 4 SETS OF CARBON FIBER BAR PRESSING BARS, TO AVOID WARPING, CRIMPING, AND OFF TRACKIN.

★ THE SECOND SECTION SMOOTH TRANSITION. THE THIRD SECOND SPEED UP AND DETACH. THE FORTH SECTION TRANSFER THE PAPER STEADYLY TO THE PAPER OUTPUT PLATFORM

★ AUTO COUNTING, AUTO STACK CHANGING, ORDER CHANGING, AND ORDER ADDING.

★ CRAWLER-TYPE PAPER OUTPUT PLATFORM, AC SERVO CONTROL THE OUTPUT PLATFORM RISE AND DOWN.

★ PAPER FULL STACKING BAFFLES ARE CONTROLED BY SERVO MOTOR. AUTO CONTROL THE FRONT &BACK ACCORDING TO ORDER LENGTH. UP AND DOWN ARE CONTROLED BY AIR CYLINDER AND LINEAR GUIDEWAY

★ WHEN STACKING REACH THE SETTING QUANTITY, COULD AUTO HORIZONTAL OUT PUT SMOOTH & STEADY.

★ EQUIPPED WITH AUTO TRANSMISSION RACK, ENTER TO UNPOWERED TRANSMISSION RACK FOR PACKING.

★ STANDARD INDUSTRIAL AIR CONDITIONING, ELECTRICAL EQUIPMENTS ARE WORK UNDER DUST-FREE, CONSTANT TEMPERATURE, AND CONSTANT HUMIDITY ENVIRONMENT.

★ COULD CONNECT WITH CENTRAL MONITORING SYSTEM, AND ACHIEVE AUTO ORDER CHANGING AND ORDER MANAGEMENT

3/5/7 Ply Corrugated Cardboard Production Line 300M/MIN 50KW Down Stacker Dry End
