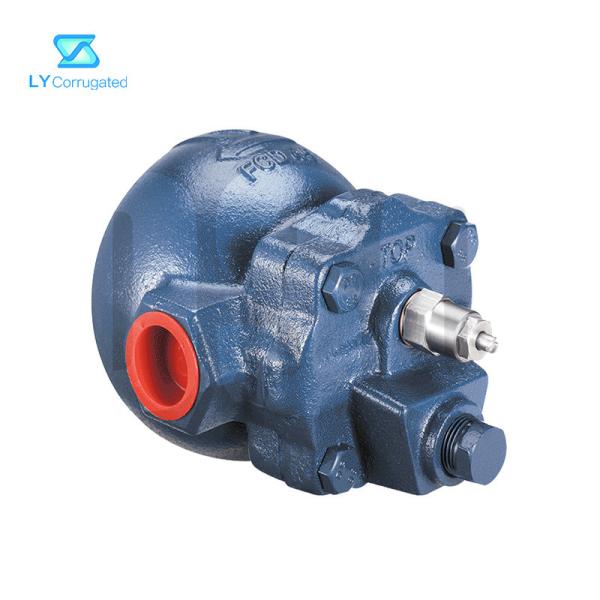

Ft 14-10 Bar Round Type SS304 Steam Trap Optional Connect Direction For Corrugated Line
Ft 14-10 Bar Round Type SS304 Steam Trap Optional Connect Direction For Corrugated Line
Specifications
Brand Name :
Lycorrugated
Model Number :
F22, F22F
Certification :
CE, ISO, TUV, SGS
Place of Origin :
Guangdong,China
MOQ :
1 PC
Price :
Factory Price
Payment Terms :
T/T, Western Union, MoneyGram，cards
Supply Ability :
2000 pieces per month
Delivery Time :
5-10 days
Packaging Details :
carton
Product :
Float Steam Trap
CAP & BODY :
DUCTILE IRON A536
SEAT & VALVE :
CHROME STEEL HARDEND
FLOAT :
S.S.304
AIR VENT CAGE :
S.S.304
MECHANISM :
S.S.304
GASKET :
COMPRESSED NON-ASBESTOS
BOLTS & NUTS :
CARBON STEEL
Description

Optional Connect Direction Ft 14-10 Bar Round Type SS304 Steam Trap For Corrugated Line

Product Information

1, DSC F22 Steam Traps Are Designed With Rotating Body Contain Inlet And Outlet Connections That Can Be Changed In The Field.

2, Inlet Connection Is At Option Of Right, Left And Top Inlet As Piping Requirement.

3, 1/2” Connection On The Cap Can Also Be Fitted With Inspection Valve Or To Be Used As Outlet Connection, There Are One Inlet And Two Outlet For Choice.
4, On Cap, A Larger Space Connected To Outlet Channel For Reducing Condensate Blast Discharge Which Causes Excessive Erosion On Outlet Casting.

5, Steam Lock Release Is Available, Specify “LR” After Trap No
Ft 14-10 Bar Round Type SS304 Steam Trap Optional Connect Direction For Corrugated Line

No. F22 DIMENSIONS(MM). MOP(KG/CM2 ). WT(KG)
No.
CONN.SE*
A
B
C
D
E
MOP
WT.
F22
15.20
124
50
50
82
90
14
4.0
F22
25
147
61
61
100
84
14
4.3

Ft 14-10 Bar Round Type SS304 Steam Trap Optional Connect Direction For Corrugated Line
