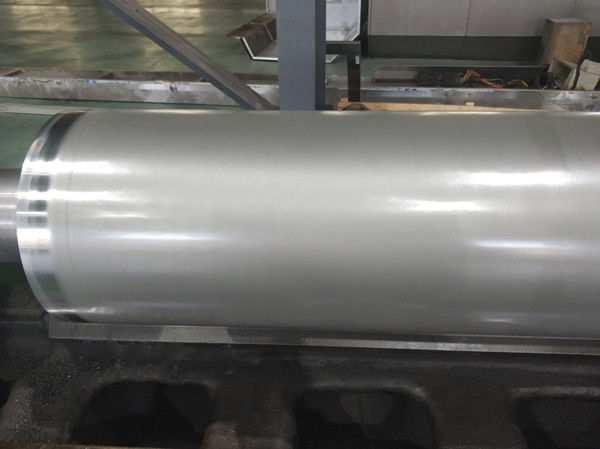

Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll
Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll
Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll
Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll
Specifications
Brand Name :
YH
Model Number :
1800-318
Place of Origin :
Made in China
MOQ :
1 pcs
Price :
500-10000
Payment Terms :
T/T
Supply Ability :
3000 pcs
Delivery Time :
30-45 days
Packaging Details :
Wooden Boxes
Material :
45# steel
Coating :
Hard Chrome
Coating thickness :
40-50μm
Width :
1800mm
Diameter :
318mm
Refurbish :
2-3 times
Screen Line :
40 line/inch
Cell Shape :
Pyramid
Certification :
ISO9001
Description

For Glue Machine Corrugator Glue Roll Double Facer with 318mm Diameter 40 line/inch

Product name Glue roll
Application Single facer, glue machine, double facer
Cell Shape Pyramid
Scree line 32 line/inch, 25line/inch, 40 line/inch
Coating Hard chrome 0.04-0.05mm
Diameter 50-500mm
The roller surface length 100-4000mm
Cylinder run-out accuracy ≤0.02mm
Cylindricity accuracy ≤0.015mm
Dynamic balancing accuracy grade G2.5 G2.5

Advanced Cylindrical Grinding Machine

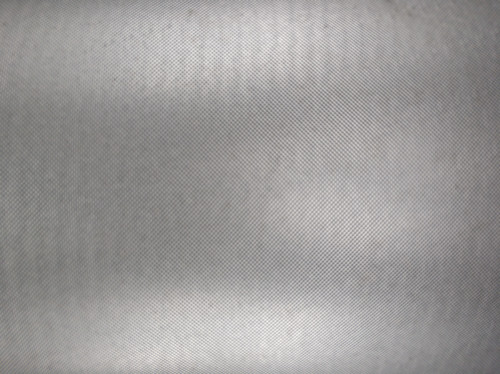

Use the cylindrical grinder to perform external grinding. Then we knurl the pyramid shape lines on the surface. The last step is to coat hard chrome. Chrome coating thickness is 0.04-0.05mm.

Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll

Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll

Then we knurl the pyramid shape lines on the surface. The last step is to coat hard chrome. Chrome coating thickness is 0.03-0.04mm.

Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll

Package

Glue Machine 0.05mm Hard Chrome Corrugator Glue Roll
