Width 440mm HV1250 50CrMo Regrinding Tungsten Carbide Corrugating Rolls
Width 440mm HV1250 50CrMo Regrinding Tungsten Carbide Corrugating Rolls
Specifications
Brand Name :
YH
Place of Origin :
Made in China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Material :
50CrMo precision forged alloy steel
Coating :
American Praxair super hard 1342 tungsten cabide powder 60-80μm
Width :
2400mm×325/440mm
Heating treatment :
Intermediate frequency quenching
Harden layer depth :
8-12mm
Micro hardness :
HV1250-1400
Warranty :
35million linear meters or 1 year, whichever comes first
Finishing :
Ra <0.6μm
Description

Used for JS Corrugated Machine Tungsten Carbide Regrinding Corrugating Rolls

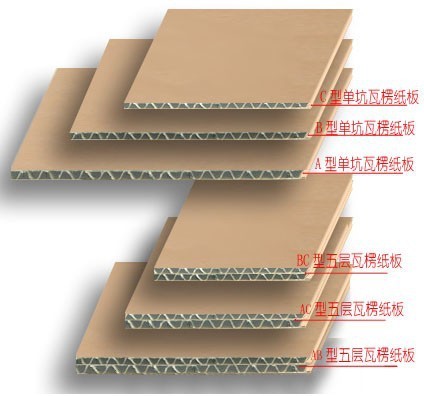

Flute Profile

According to the customer's requirement, combined with the customer's equipment parameters and the gram weight of the corrugated paper, we develop optimal customized flute profile program and setup various parameters scientifically, to make all the indexes of corrugated roller economic, reliable and reasonable, to improve the physical index of cardboard and production efficiency, at the meantime to reduce the cost of raw material consumption.

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design

Width 440mm HV1250 50CrMo Regrinding Tungsten Carbide Corrugating Rolls

Width 440mm HV1250 50CrMo Regrinding Tungsten Carbide Corrugating Rolls
