50CrMo B Flute HRC59 Chrome Plated Corrugating Roll
50CrMo B Flute HRC59 Chrome Plated Corrugating Roll
Specifications
Brand Name :
YH
Place of Origin :
Made in China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Certification :
ISO9001
Material :
50CrMo precision forged alloy steel
Coating :
Hard Chrome 60-80μm
Steel wall thickness :
≥70mm
Heating treatment :
Intermediate frequency quenching
Hardness :
HRC59-62 after hardening
Flute type :
B Flute
Warranty :
8 million linear meters
Refurbish :
3-4 times
Description

B Flute Hard Chrome Plating Traditional Corrugating Roll Wear Resistant Roll


Hard chrome corrugated roll:

♦ 50CrMo alloy steel refined forging, barrel wall thickness ≥70mm

♦ Adopt advanced heat treatment technology, quenching hardness ≥HRC58

♦ Precision machine to do multi-layer process

♦ Hard chrome thickness 0.06-0.08mm,

♦ Lifetime more than 8 million meters

♦ A,C, B, E,F G, N flute

Appliation:

Corrugating roll is one of the most important components in corrugated carton production. Usually, it is an essential part of single facer. Corrugating rolls consist of two parts: upper roll and lower roll. The lower corrugating roll is the driving roll, which is generally fixed while the upper one is the driven roll.

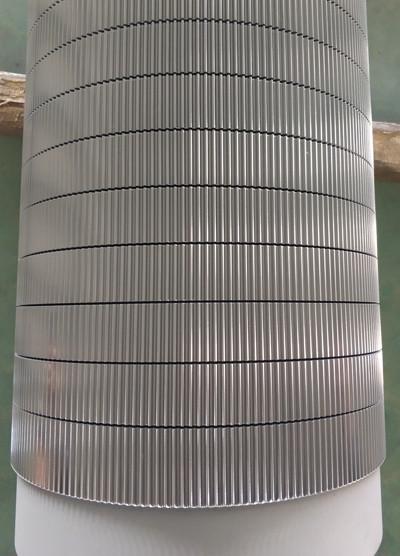

50CrMo B Flute HRC59 Chrome Plated Corrugating Roll

Precision Index of Hard Chrome Corrugated Roller

Item Index
Gear teeth height limits of deviation ≤ 0.01mm
Addendum circle run out tolerance ≤ 0.02mm
Gear teeth width limits of deviations ≤ 0.015mm
Tooth profile limits of deviations ≤ 0.01mm
Gear lateral face counter shaft parallelism ≤ 0.01mm
Tip cylinder element linear ≤ 0.01mm
Gear teeth division limits of deviations ±10"

50CrMo B Flute HRC59 Chrome Plated Corrugating Roll
