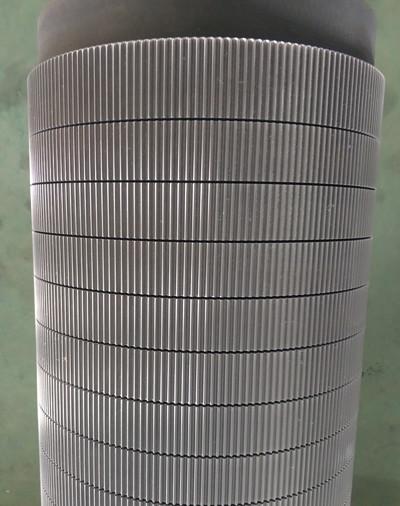

Forged Steel 8.0mm Pitch TC B Flute Corrugated Roller
Forged Steel 8.0mm Pitch TC B Flute Corrugated Roller
Specifications
Brand Name :
YH
Certification :
ISO9001
Place of Origin :
Made in China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
1500 sets per year
Delivery Time :
60-90 days
Packaging Details :
Wooden Boxes
Material :
50CrMo precision forged alloy steel
Coating :
American Praxair super hard 1342 tungsten cabide powder
Coating thickness :
60-80μm
Heating treatment :
Intermediate frequency quenching
Hardness :
>HRC58 after hardening
Harden Layer :
8-12mm
Micro hardness :
HV1250-1400
Flute type :
B Flute
Warranty :
30-35million linear meters or 1 year, whichever comes first
Finishing :
Ra <0.6μm
Description

New TC B Flute Corrugated Roller

Flute Profile Height(mm) Pitch(mm) Flutes/300mm T.U.R
A UV 4.5-5.0 8.0-9.5 34±3 1.45-1.52
C UV 3.5-4.0 6.8-7.9 41±3 1.37-1.47
B UV 2.5-3.0 5.5-6.5 50±4 1.33-1.41
E UV 1.1-2.0 3.0-3.5 93±6 1.24-1.36
F UV 0.8-1.0 2.2-3.2 115±20 1.19-1.25
G UV 0.6-0.8 1.8-2.8 136±20 1.15-1.20
N UV 0.4-0.6 1.2-2.2 193±55 1.10-1.15
Others UV Customized Design Design Design

Forged Steel 8.0mm Pitch TC B Flute Corrugated Roller

After making concerted efforts in R&D and manufacturing through many years, Qingdao Meijia has perfectly solved the technical problem that the production loss being caused due to the insufficient quality of corrugating roll.

A. Meijia,in accordance with the different customer needs and on-site situation, has developed special flute type,which circle parabola is adopted for the medium-high outline,solving the problems like collapsed flute,poor lamination,inner liner frothing,heavy scoring on inner liner from the very beginning.

B. Special steel D50CrMo is used as the material to producing corrugating roll.It is the premium alloy precision forging steel featuring stable property and even heat transfer.

C. With scrupulous attitude, Meijia adopted multi-directional detection to enable the parameter of the produced corrugating roll perfectly match that of the designed one. In this way, to keep a smooth and stable operation. The unique tungsten carbide techniques largely improves the abrasive resistance and extend the service of life of corrugating roll. The special polishing method enables the surface finish reach Ra＜0.3μm, successfully solving the problem of broken fluting paper owing by its technical defects.
